AC220V 50/60Hz SMT Assembly Line Automatic Pcb Loader Machine

I'm Online Chat Now

AC220V 50/60Hz SMT Assembly Line Automatic Pcb Loader Machine

AC220V 50/60Hz SMT Assembly Line Automatic Pcb Loader Machine
AC220V 50/60Hz SMT Assembly Line Automatic Pcb Loader Machine

Large Image :  AC220V 50/60Hz SMT Assembly Line Automatic Pcb Loader Machine

Product Details:
Place of Origin: China
Brand Name: INFITEK
Model Number: SY-250LD, SY-390LD, SY-390LD, and SY-460LD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD
Packaging Details: Wooden Box
Delivery Time: 7 to 10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1 unit

AC220V 50/60Hz SMT Assembly Line Automatic Pcb Loader Machine

Description

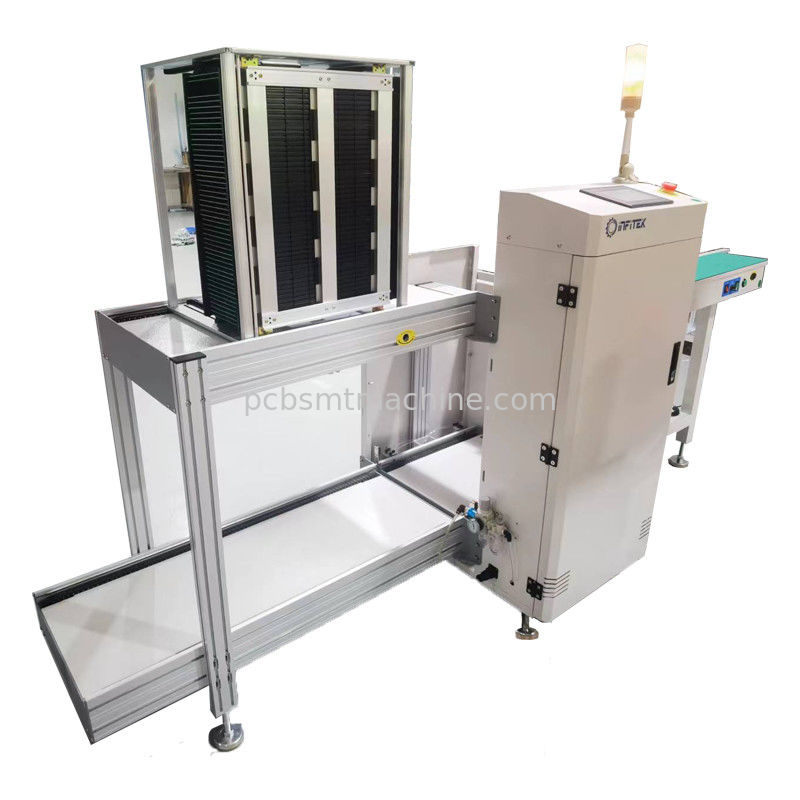

Description: SY Series Automatic PCB Loader Model: SY-250LD, SY-390LD, SY-390LD, And SY-460LD
Brand: INFITEK Function: This Device Is Used To Store The PCB Board And Transfer The Upper Board Function In The Forefront Of The SMT Production Line.
Power: Power: AC220 50/60Hz / Air: 5kgf/cm² Condition: Brand New
Functionality: For Industrial Use Packaging: Wooden Box
Lead Time: 7-10 Days Payment: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
High Light:

50/60Hz SMT Assembly Line

,

AC220V SMT Assembly Line

,

AC220V Pcb Loader Machine

Avail of our high-quality SMT production line equipment and get the best price deal only at Infinite Automation Co., Ltd. Infinite Automation Co., Ltd. is China's leading global distributor of SMT factory automation solutions products. We are offering various SMT machines and production line equipment. Among our offers is the INFITEK SY SERIES AUTOMATIC PCB LOADER with available models for various PCB dimensions. INFITEK SY SERIES AUTOMATIC PCB LOADER has 4 models to choose from that can be applicable to your production line requirements. INFITEK SY SERIES AUTOMATIC PCB LOADER is a PCB transfer machine is used to store the PCB board and transfer the upper board function to the forefront of the SMT production line.



Our company also supplies different PCB transfer machines / connecting conveyors like Automatic PCB Loader, Automatic PCB Unloader, Parallel Loader, Automatic Flap Machine, Multifunction Buffer Conveyor, Automatic Compound PCB Cleaner, Multifunction Buffer Conveyor, Automatic Sucking Loader, Parallel Transfer Machine, Two Track Conveyor, Link Conveyor, etc.



INFITEK SY SERIES AUTOMATIC PCB LOADER

This device is used to store the PCB board and transfer the upper board function to the forefront of the SMT production line.



Available Models-SY-250LD, SY-390LD, SY-390LD, and SY-460LD



Equipment Features / Functions:

  • Control system using Panasonic PLC programmable controller, Touch Screen easy to understand.
  • Using LED three-color work lights.
  • Transmission track with seamless design of aluminum rails effectively prevents PCB jam.
  • Special body design, steel structure, making the machine always maintain a steady state of operation, stable and durable.
  • Solid cast aluminum lifting platform structure design; improve the stability of the equipment.
  • Independent intellectual property rights of innovation of multi-functional electrical circuits and programming, stable performance, to ensure smooth flow of production lines.
  • PCB in Cylinder imported from Japan SMC, push plate protection system to ensure that the PCB will not be deformed or damaged, effectively ensure the stability of the action.
  • Lift imported from Taiwan ball screw to ensure the durability of the equipment.
  • Three-point positioning pneumatic clamps up and down to ensure that the tank position is accurate.
  • Transmission motor use.
  • Humanized programming, 4 PITCH options, can be set to send PCB step.
  • Lifting motor use ZD 120W brake motor, stable performance.
  • Bearing NHK Japan, with stainless ball screw to improve the accuracy and life of the machine.
  • SENSOR imported from Japan OMRON, effectively ensure the accuracy of the machine
  • Support feet with a dedicated M16 plastic foot cup, shockproof, not easy to shift.
  • With leakage protection
  • A compatible SMEMA interface can communicate with other automation devices.
  • PCB board size (MM): 50 * 50 ~ 330 * 250
  • Working height (MM): 900 ± 20 (stud)
  • PCB board loading time: 6.0 sec
  • Step selection: 10.20.30.40mm selectable
  • Power: 220V AC, single phase
  • Machine Dimensions: 1300 (L) * 765 (W) * 1250 (H)
  • Compressed air supply pressure: 4-6bar
  • PCB board thickness: the smallest 0.6mm thick
  • Transmission direction: from left to right (or right to left optional)

Specifications:



SY SERIES AUTOMATIC LOADER SPECIFICATION
Model *SY-250LD SY-330LD *SY-390LD SY-460LD
Power Supply AC220 50/60Hz
Air Supply 5kgf/cm²
PCB Size (mm) 350x50-280 460x50-350 535x50-400 535x50x460
PCB Direction Left to Right (Option: Right to Left)
Magazine Size (mm) 355x320x563 460x400x563 535x460x570 535x530x570
Step Pitches (mm) 10, 20, 30, 40
Transport Height (mm) 900±20
Main Motor Power (W) 220
Machine Size (mm) 1360x765x1200 1650x765x1200 1740x910x1200 1740x980x1200
L x W x H
Weight (kg) 190 210 240 250
Control Panel 1. Touch Screen (T) 2. Button (B)
