Product Details:
|
| Features: | Easy To Operate, Fully Automatic | Application: | SMT Link Conveyor Systems |
|---|---|---|---|
| Description: | SMT Inspection Conveyor | Brand: | INFITEK |
| Model: | BC-050L-N, BC-050XL-N, BC-100L-N, BC-100XL-N | Warranty: | 1 Year |
| Reliability: | Industrial-grade | Packaging: | Wooden Crate |
| High Light: | Fully Automatic SMT Inspection Conveyor,SMT PCB Inspection Conveyor,Fully Automatic PCB Inspection Conveyor |
||

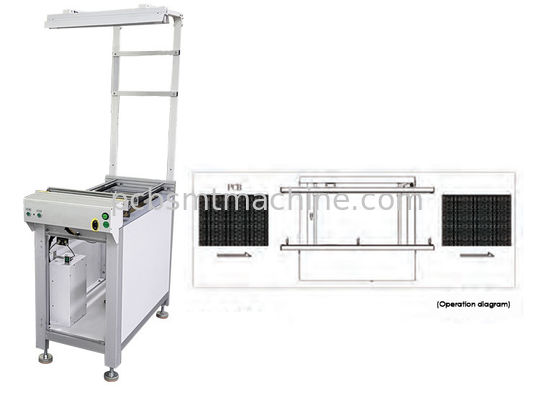

Fully Automatic SMT PCB Inspection Conveyor SMT Link Conveyors
SMT INSPECTION CONVEYOR, Modular Design SMT Conveyor Systems, High-Quality, And Durable SMT Link Conveyors
SMT INSPECTION CONVEYOR is a modular design conveyor system used in the SMT production process. This INFITEK Series SMT Inspection Conveyor is equivalent to an SMD machine or operator testing station of PCB assembly equipment. INFITEK Series SMT Inspection Conveyor has a modular and weighted design to improve stability. INFITEK Series SMT Inspection Conveyor can also be set to Inspection mode and automatic mode. This SMT Conveyor is SMEMA interface compatible. We can also customize the machine length according to the customer's requirement.
SMT INSPECTION CONVEYOR FEATURES:
Modular design
Weighted design improves stability
Inspection mode and automatic mode
Inducing multi-zone position accuracy
Ergonomic design, make arms rest
Custom machine length according to customer's requirement
Order the number of multi-zone upon request
Variable speed control
Compatible SMEMA interface
TECHNICAL PARAMETERS:
Description: This device is equivalent to an SMD machine or operator testing station of PCB assembly equipment
Belt type: Round belt or oblate belt
Conveying speed: 0.5-20M/min or customer specified
Power supply: AC1P110V/220V
Power: Max 100VA
Tran sport height: 900±20mm(or customized)
Transport direction: From left to right or right to left
SPECIFICATIONS:
| Model | PCB size (MM) | Weight (KG) | Dimension (L*W*H MM) |
| BC-050L-N | 50*50-445*350 | 55 | 500*676*900 |
| BC-050XL-N | 50*50-460*460 | 70 | 500*786*900 |
| BC-100L-N | 50*50-445*350 | 80 | 1000*676*900 |
| BC-100XL-N | 50*50-530*460 | 95 | 1000*786*900 |
