NG OK Sorter And Buffer Conveyor SMT Assembly Equipment Link Conveyors

Description
Features: Upper Conveyor: 1 Magazine, Lower Conveyor: 1 Magazine Description: Horizontally NG/OK Machine
Application: Horizontal NG/OK Sorter And Buffer Conveyor Brand: INFITEK
Model: NL-M-TN, NL-L-TN, NL-LL-TN, NL-XL-TN Warranty: One Year
Reliability: For Industrial Use Packaging: Wooden Crate/box
High Light:

Buffer Conveyor SMT Assembly Equipment

,

AC110V SMT Assembly Equipment

,

300VA SMT Production Line

NG OK Sorter And Buffer Conveyor SMT Assembly Equipment Link Conveyors



Horizontally NG/OK Machine, Horizontal NG/OK Sorter and Buffer Conveyor, Modular Design SMT Link Conveyors

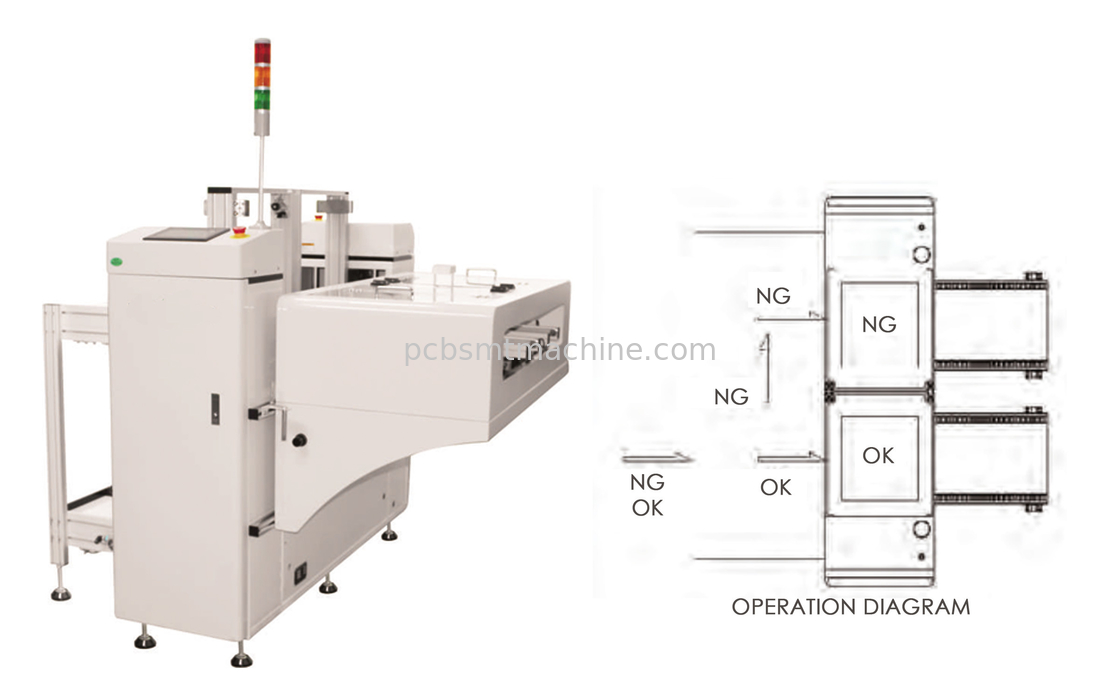

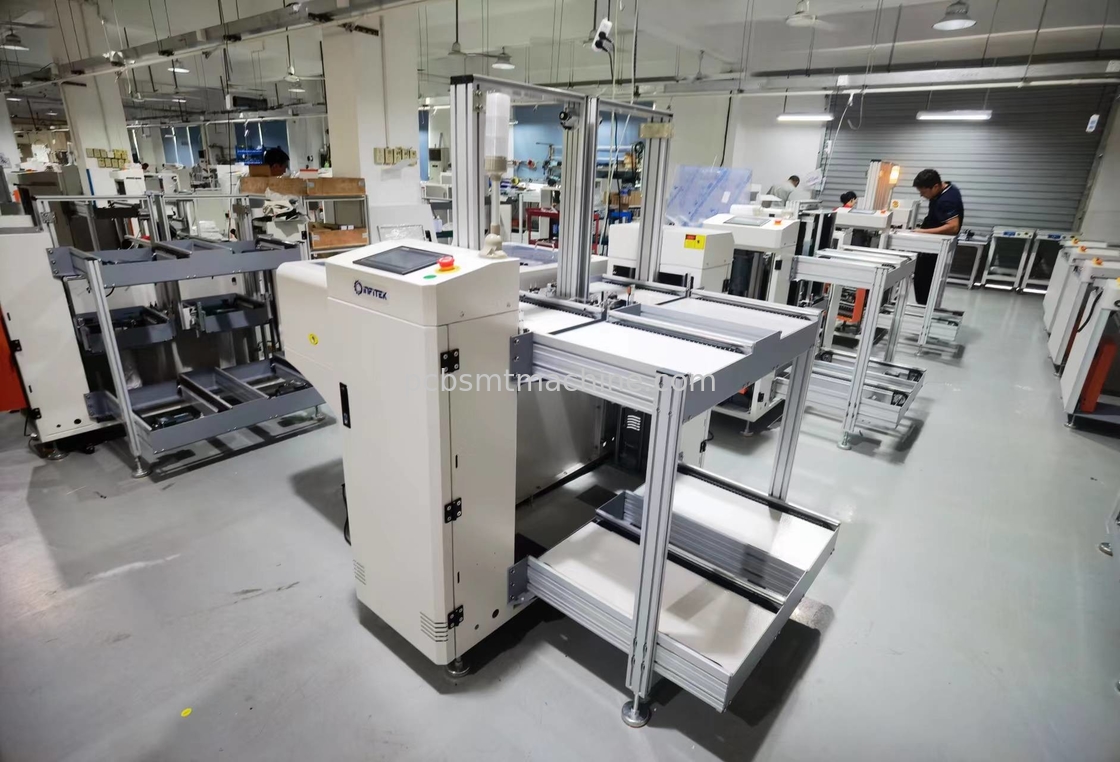

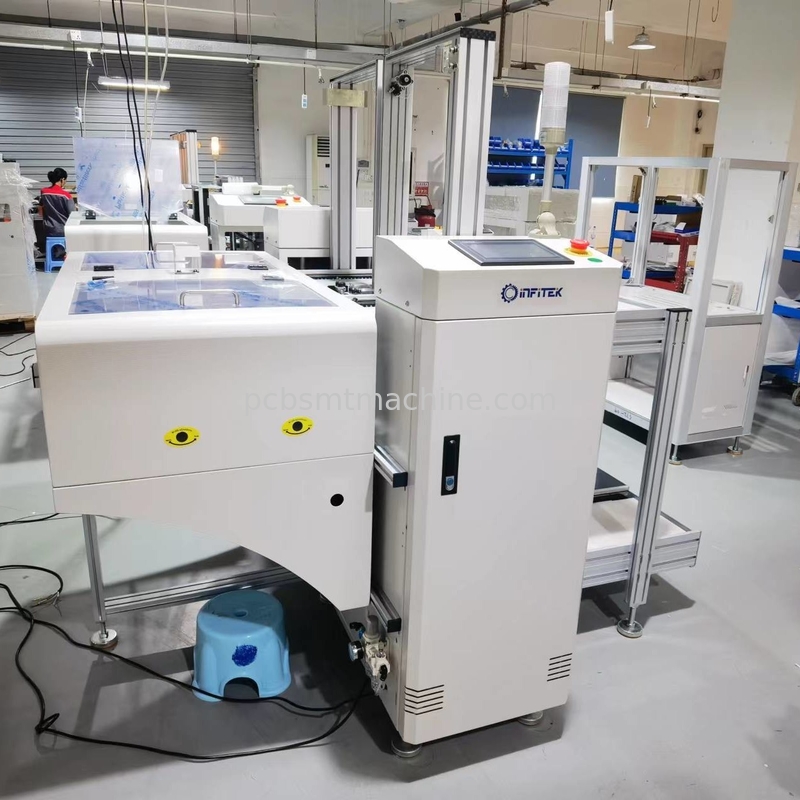

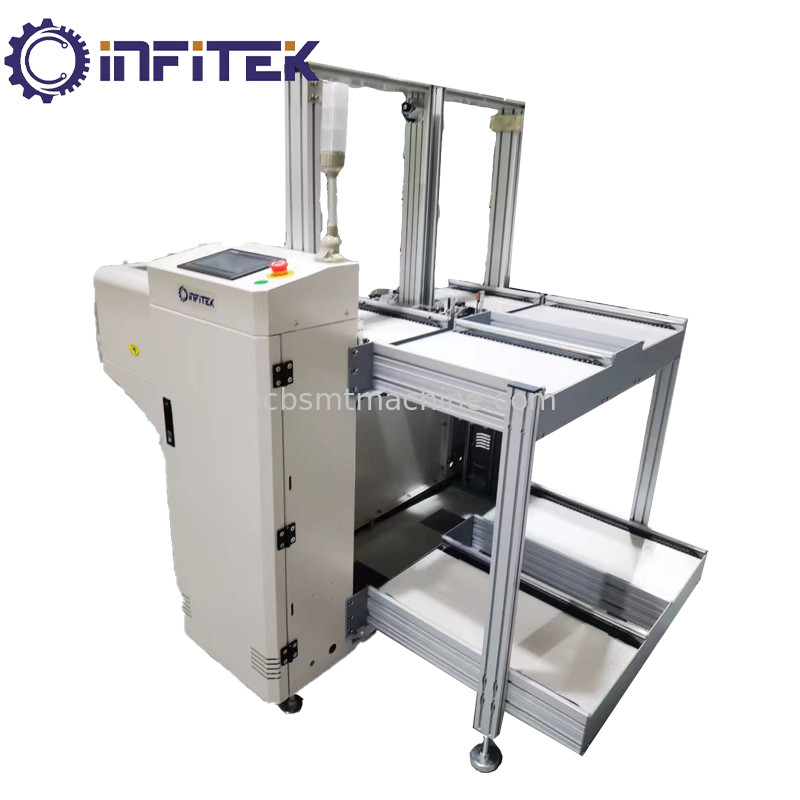

A Horizontally NG/OK Machine is used for automatic loading operations for PCB boards in the SMT Production LIne. This SMT Conveyor System is used to sort good and no good (NG) PCBs and automatically separate NG boards. INFITEK SMT NG/OK Horizontal Buffer unit is used as a buffer to store NG (Not Good) and OK (Good) boards after an inspection machine (AOI/SPI), and to pass the OK boards to the next process. The NG boards will go to the upper conveyor for visual inspection. INFITEK SMT Horizontally NG/OK Machine has a durable and stable design. This buffer conveyor system eliminates PCB breakage due to its special gas circuit design. INFITEK Horizontal NG/OK Sorter and Buffer Conveyor have models available for different PCB sizes and can be customized according to customers' requirements.



Features:

  • Strong, firm, and stable design
  • User-friendly “soft touch” LED membrane control panel or touch screen can be selected
  • Top & bottom pneumatic clamps to secure magazine rack
  • No PCB breakage guarantee because of the special gas circuit design
  • Automatic diagnosing fault code display function
  • Wear-resistant cable helps prolong the service life
  • SMEMA compatible
TECHNICAL PARAMETERS
Description This unit is used for the automatic loading operation of double-sided boards and transceiver board
No. of magazine Upper Conveyor: 1 magazine, Lower Conveyor: 1 magazine
Magazine replacement time Approx.30 seconds or specify
Indexing pitch 10.20.30.40mm or specify
Power supply AC1P110V/220V
Power Max 300VA
Air pressure 4-6bar,10ltr/min max
Transport height 900±20mm (or customized)
Transport direction From left to right or right to left



SPECIFICATIONS
Model Dimension (L*W*H MM) PCB size (MM) Rack size (L*W*H MM) Weight (KG)
NL-M-TN 1800*1435*1250 50*80-330*250 355*320*563 310
NL-L-TN 2065*1690*1250 50*80-445*330 460*400*563 340
NL-LL-TN 2330*1810*1250 50*80-530*390 535*460*563 370
NL-XL-TN 2330*1950*1250 50*80-530*460 535*530*563 400
