Place of Origin:
China
Brand Name:
INFITEK
Model Number:
MT-250M-CV
Video

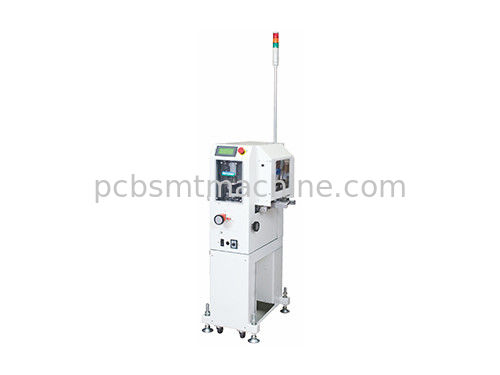

INFITEK MT-250M-CV is a compound online PCB surface cleaning machine. MT-250M-CV PCB cleaner machine consists of two cleaning methods, brush + vacuum cleaning and sticky roller + sticky paper roll cleaning. These two cleaning methods can be used at the same time. It can also be used separately according to requirements; brush cleaning corresponds to large foreign objects, and roller cleaning corresponds to small foreign objects. It is the most suitable machine for high PCB cleaning requirements.
Machine features:
1. SMT surface cleaning equipment is developed and designed according to PCB's high cleaning requirements.
2. When components are attached to the back of the PCB, the other side can also be cleaned.
3. The standard is equipped with a precision anti-static system to eliminate static interference.
4. Contact cleaning method, the cleaning rate is over 99%.
5. Chinese, Japanese, and English three kinds of operation interfaces are optional, touch operation.
6. The cleaning effect is perfect, and a variety of cleaning methods are available.
7. It is especially suitable for products with strict requirements on PCB welding quality such as automotive electronics.
8. More than ten years of SMT surface cleaning machine design and manufacturing experience, perfect quality.
9. Cleaning equipment is the first choice for more than 100 internationally renowned factories worldwide.
| Specification | Details |
|---|---|
| PCB Size | 50x100~330x250 (LxW) mm |
| PCB Thickness | 0.5~2.0 mm |
| Transmission Height | 900±25 mm |
| Sticky Roller | 2 pieces |
| Sticky Paper | 1 roll |
| Brush | 1 |
| Vacuum System | 1 set |
| Orbital Direction | Left-right or right→left |
| Track Fixed Side | Front fixation or rear fixation |
| Track Width Adjustment | Manual |
| Static Elimination Device | Built-in |
| Gas Source | 0.5Mpa |
| Power Supply | AC220V/100V, 50/60Hz, 60W |
| Dimensions | L570 x W620 x H1265(mm) |
| Weight | 120 KG |
