Corrosion-resistance Stainless Steel Single Tube Point Glue Needle Head

Corrosion-resistance Stainless Steel Single Tube Point Glue Needle Head
Corrosion-resistance Stainless Steel Single Tube Point Glue Needle Head Corrosion-resistance Stainless Steel Single Tube Point Glue Needle Head Corrosion-resistance Stainless Steel Single Tube Point Glue Needle Head Corrosion-resistance Stainless Steel Single Tube Point Glue Needle Head

Large Image :  Corrosion-resistance Stainless Steel Single Tube Point Glue Needle Head

Product Details:
Place of Origin: China
Brand Name: INFINITE™
Model Number: Stainless Needle Head
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Packaging Details: Carton Box
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Corrosion-resistance Stainless Steel Single Tube Point Glue Needle Head

Description
Application: Glue Dispensing Brand: INFINITE™
Design: Single Tube Point Glue Needle Head Material: Stainless Steel
Tube Legnth: 13 Mm. Reliability: Strong Corrosion-resistance, Heavy Load Resistance
Functionality: Design For Industrial Use Packaging: Carton Box
Payment: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
High Light:

Single Tube Point Glue Needle Head

Infinite Automation Co., Ltd. provides the best quality and affordable Corrosion-resistance Stainless Steel Single Tube Point Glue Needle Head. Here we offer the INFINITE™ Stainless Steel Single Tube Point Glue Needle Head. The  INFINITE™ series  Stainless Steel Single Tube Point Glue Needle Head is made from high-quality stainless steel material. INFINITE™ series glue needle heads are made from high-precision stainless steel needles, 1/4, 1/2, and 1 inch long (about 6.5mm, 13mm, and 25mm). These stainless steel needle heads are polished inside and outside, with strong corrosion resistance, heavy load resistance, silver-plated brass needle seat.

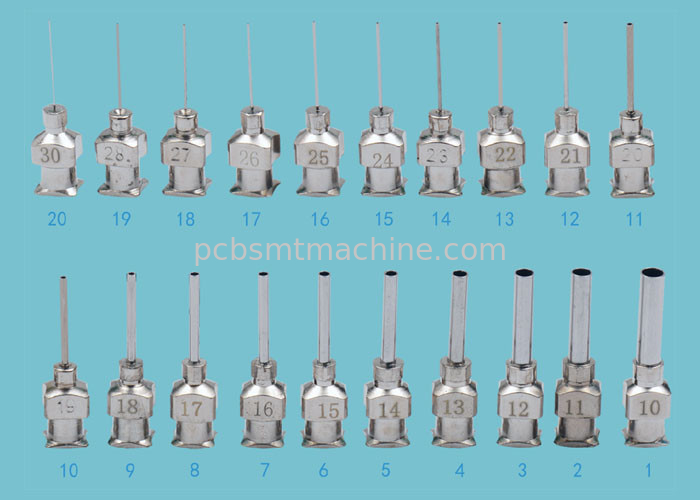

Parameter table: length unit mm



No. Part Number

Tube

Length

Inner

Dia.

Outer

Dia.

1 MT-GNH-10G 13 2.7 3.43
2 MT-GNH-11G 13 2.64 3.05
3 MT-GNH-12G 13 2.4 2.75
4 MT-GNH-13G 13 1.99 2.41
5 MT-GNH-14G 13 1.69 2.11
6 MT-GNH-15G 13 1.45 1.81
7 MT-GNH-16G 13 1.25 1.61
8 MT-GNH-17G 13 1.12 1.48
9 MT-GNH-18G 13 0.90 1.26
10 MT-GNH-19G 13 0.70 1.06
11 MT-GNH-20G 13 0.60 0.90
12 MT-GNH-21G 13 0.51 0.81
13 MT-GNH-22G 13 0.41 0.71
14 MT-GNH-23G 13 0.33 0.63
15 MT-GNH-24G 13 0.30 0.55
16 MT-GNH-25G 13 0.26 0.51
17 MT-GNH-26G 13 0.23 0.45
18 MT-GNH-27G 13 0.19 0.41
19 MT-GNH-28G 13 0.17 0.35
20 MT-GNH-30G 13 0.13 0.31

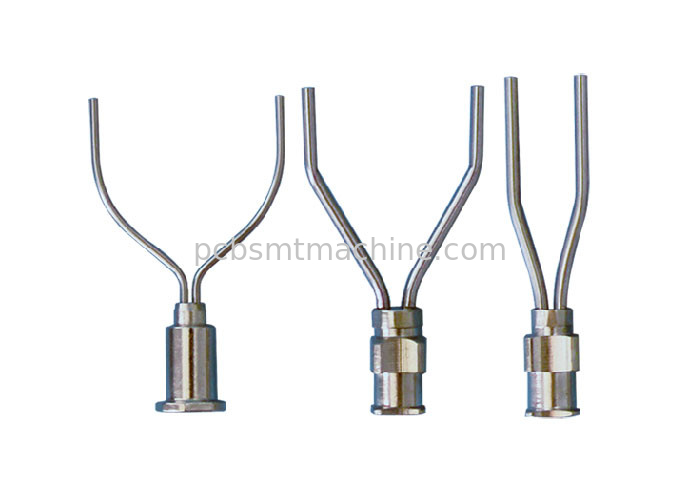

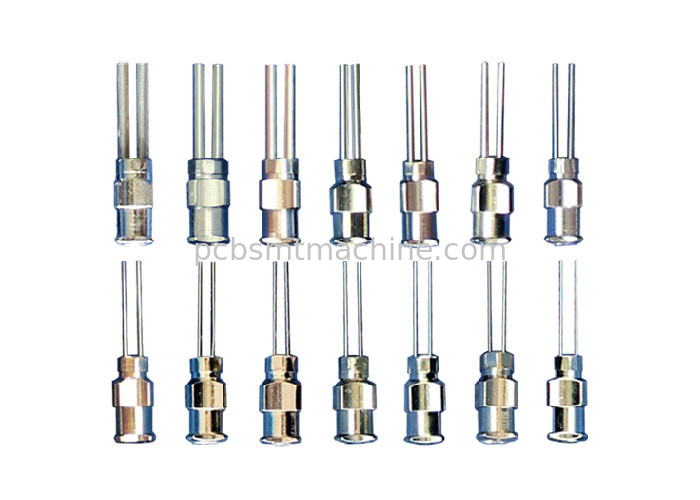

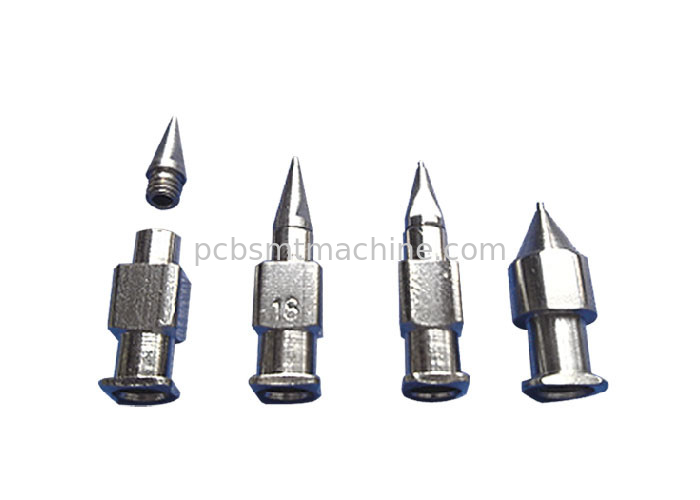

We also produce custom-made processing of various non-standard needles: lengthened, angled, pointed mouth, multi-tube needles

Non-standard needle

Corrosion-resistance Stainless Steel Single Tube Point Glue Needle Head 0Corrosion-resistance Stainless Steel Single Tube Point Glue Needle Head 1Corrosion-resistance Stainless Steel Single Tube Point Glue Needle Head 2
