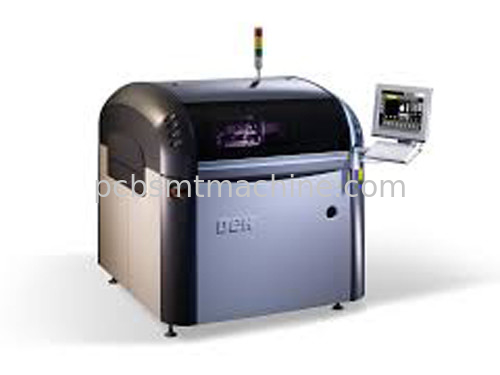

Pre Owned DEK Horizon 03iX Automatic Solder Paste Printer Machine SMT Assembly Line

Infinite Automation Co., Ltd. is offering pre-owned and refurbished DEK Horizon 03iX Automatic Solder Paste Printer. You can be sure of quick and reliable printing with DEK Horizon 03ix solder paste printer whether with stencils or screens. The modular design of the DEK Horizon 03iX gives you the configuration Flexibility you need even for a machine that you're already using. This automatic solder paste printing machine has the ability to respond flexibly to changes in technologies, applications, and demand. The DEK Horizon 03iX printer uses an exceptionally stable frame design.

Infinite Automation Co., Ltd. offers pre-owned and reconditioned SMT machine and solder paste printers, guaranteed production-ready by our experienced Service Engineers who work/oversee the reconditioning of the machines.

DEK 03ix Configuration

Standard configuration: DEK Horizon 03iX

Repeat accuracy:> 2 Cpk @ ±12,5 μm, 6 sigma*

Printing accuracy:> 2 Cpk @ ±25 μm, 6 sigma*

Standard cycle time: 10 s (7 s with option)

Maximum printing surface: 510 mm (X) × 508,5 mm (Y)

User interface: Touchscreen, keyboard and trackball, DEK InstinctivTM V9 software

Camera: DEK HawkEyeTM 750 digital camera with dual LED illumination

Squeegee adjustment: Motorized, squeegee pressure monitor (optional)

Stencil positioning: Manual with depth stop, semi-automatic optional

Squeegee alignment: Motorized (actuators); X and Y alignment and rotation

DEK ProFlow®: Optional

Understencil cleaning: Optional

Compressed air supply: 5-8 bar at 5 liters/minute

Power supply: 230 V

Weight: Approx. 660 kg
