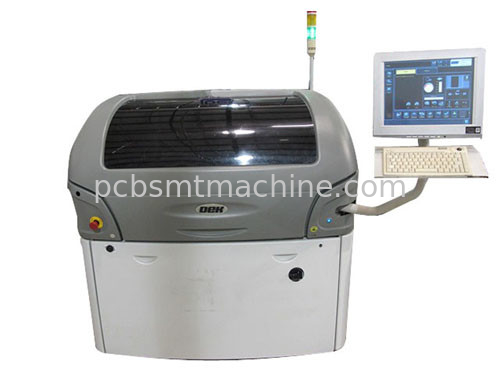

Refurbished DEK Horizon 03i Solder Paste Printing Machine 2mm To 150mm/Sec

Infinite Automation Co., Ltd. is selling refurbished and reconditioned second-hand DEK Horizon 03i Solder Paste Printing Machine. DEK printers have a design that engineered the evolution of the industry's most successful screen printer platform when they introduced the Horizon model series. DEK Horizon 03i is a printing machine focused on improving flexibility, yield, and price/performance. The Horizon adds more features and greater choice. The Horizon 03i is a fully automatic screen printer that delivers an entirely new benchmark for productivity and value. DEK 03i solder paste printer is highly automated, supremely flexible, compact, and stylish.

Infinite Automation Co., Ltd. also offers pre-owned and reconditioned SMT machine and solder paste printers, guaranteed production-ready by our experienced Service Engineers who work/oversee the reconditioning of the machines.

DEK Horizon 03i Specifications:

Accuracy and Repeatability: 1.33 Cpk @ +/- 25 m

Cycle Core Time: 14 seconds

Max. Board Size (Print Area): 508mm (X) x 508mm (Y)

Print Speed: 2mm to 150mm/sec

Squeegee Pressure Mechanism: Software controlled, motorized

Tooling: Magnetic tooling pins

Camera: Graphite digital camera, using the IEEE 1394 interface. Single-channel.

Fiducial Recognition: Automatic fiducial teach and find

Operating System: Windows XP

Operator Interface: Colour TFT display, kb, and trackball with DEK Instinctiv software

Stencil Loading: Manual with a screen depth adjuster

Stencil Alignment: Motorised via actuators X, Y, and Theta

Machine Interface: Upline and downline FMI included

Squeegee: Clamped double trailing edge squeegee (1 set included)

Voltage: 100 Volts to 240 Volts +/-10% Single Phase 50/60Hz

Air: Pressure 5 bar to 8 bar at 5 Litres/min
