Place of Origin:
China
Brand Name:
INFINITE™
Model Number:

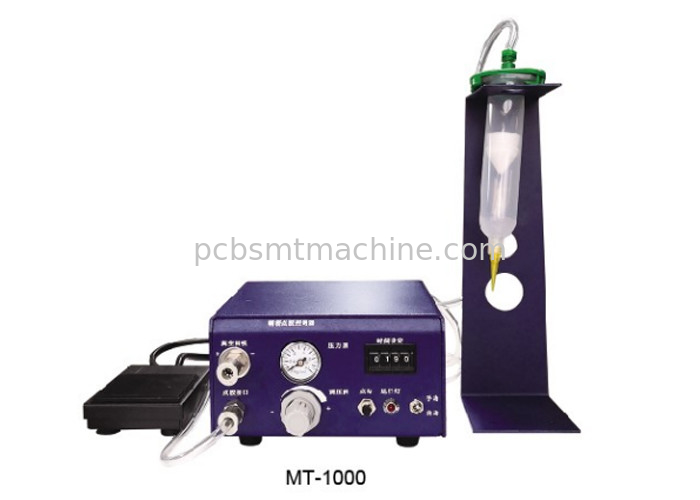

MT-TP50, MT-1000, MT-2000
Introducing INFINITE™ MT-TP50 Peristaltic Dispenser Machine, a Peristaltic positive displacement dispensing machine used for pumping a variety of liquid materials. A peristaltic pump is a type of positive displacement dispensing machine used for pumping a variety of materials. The fluid is contained within a flexible tube fitted inside a circular pump case. The special rotor turns and compresses the flexible tube thus forcing the fluid to be pumped to move through the tube. Digital time allows you to dispense accurate and repeated amounts of fluid every time. The pumped fluid contacts only the inside surface of the tubing. There are no other valves, O-rings, seals or packing's to worry about in the peristaltic pump. Therefore, the only compatibility to worry about in a peristaltic pump is the tubes for the fluid being pumped.
Using the wear-resistant rotor mechanism effectively prolongs the service life of the tube and saves production costs. This machine does not need gas. Pressure, installation is very simple, controlled by a manual switch, convenient and quick operation. This machine is suitable for all kinds of quick-drying glue in precise and small quantities.
Features
Function description and product characteristics
(1) Control mode: electronic pipeline compression mode;
(2) Function mode: manual/automatic mode;
(3) Dispensing volume setting: 09.999s;
(4) Respiration volume setting: 0-9.999s;
(5) Minimum dispensing volume: 0.0001ml;
(6) Gluing speed (rotating speed): 0-200rev/min
(7) Repeatability: +/- 0.005%;
(8) Special function: automatic reversal function to prevent glue leakage;
(9) Input and output signal: input one without contact or with contact; output a little glue end, standard level Signal output;
(10) Power supply: 220-240V, 50Hz, 30W
(11) Weight: 3.5kg.
