Brand New 400mm Maxi Length PCB Cutting Machine 500mm/S MT-810A

I'm Online Chat Now

Brand New 400mm Maxi Length PCB Cutting Machine 500mm/S MT-810A

Brand New 400mm Maxi Length PCB Cutting Machine 500mm/S MT-810A
Brand New 400mm Maxi Length PCB Cutting Machine 500mm/S MT-810A

Large Image :  Brand New 400mm Maxi Length PCB Cutting Machine 500mm/S MT-810A

Product Details:
Place of Origin: China
Brand Name: INFINITE™
Model Number: MT-810A
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD
Packaging Details: Wooden Box
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 10 units

Brand New 400mm Maxi Length PCB Cutting Machine 500mm/S MT-810A

Description
Features: 400mm Maximum Cutting Length Description: PCB Separator
Application: PCB Separator / PCB Cutter Model: MT-810A
Brand: INFINITE™ Cutting Speed: 300mm/s Or 500mm/s
Power Supply: 110/220V 50/60HZ,250w Condition: Brand New
Functionality: For Industrial Use Lead Time: 1 To 5 Working Days
High Light:

400mm Maxi Length PCB Cutting Machine

,

400mm Maxi Length pcb shearing machine

,

PCB Cutting Machine 500mm/S

Buy the highest-quality and super-efficient PCB cutting equipment only at Infinite Automation Co., Ltd. Our company is among China's trusted distributors of factory automation machines, equipment, and assembly line solution products. One of our featured PCB products is the Durable and high-precision cut MT-810A 400mm maximum cutting length PCB separator machine, 110/220V 50/60HZ, 250w. This cutting machine is capable of cutting PCB Board, Aluminum Board, Soft Fiber, Fiber Glass Plate, and LED Light Bar. MT-810A PCB separator has a safety feature design that provides protection to users during machine operation.



MT-810A PCB Separator-400mm max cut



Features:

  • Adjustable separating speed: 500mm/s or 300mm/s
  • Minimum Cutting length: 400mm (MT-810A), Maximum cutting length: 1300mm (MT-810D) Upper circular blade adjustable up to 0-2mm.
  • The operation platform is adjustable 0-50mm.
  • Cutting thickness: 1.0-3.2mm, V-cut thickness: 0.2-2.0mm
  • The machine cut PCB boards without damaging electronic components. And it can improve efficiency.
  • With blade moving, it can reduce pressure on board to avoid solder joint crack and parts fracture.
  • The upper circular blade cuts against the lower linear blade to separate the PCB board, smooth and clear cuts.
  • Set fixed start and endpoint for blade moving according to the length of PCB.
  • According to the width of PCB, the back baffle can be adjustable from 0 to 150mm.
  • The blades are sharp and durable. And they can be sharpened between 2 to 3 times.
  • Assemble light curtain system on the end of the lower blade for your option. If there is anything beyond the safe line, PCB separator will stop, which provides safety protection.

Specifications:



Power 110/220V 50/60HZ, 250w
PCB Thickness From 0.2 to 3.2mm
PCB Length From 0.1-400mm
V-groove Thickness From 0.2-2.0
Cut Speed 300mm/s or 500mm/s
Net Weight 60KG
Outer size L740*W550*H460 mm
Packaging detail wooden case dimension 720x580x510mm
Gross Weight 75kgs.
HS Code 8465960000



Application:



PCB Board, Aluminum Board, Soft Fiber, Fiber Glass Plate, LED Light Bar

It is a good tool for industries that use PCB, such as LED industry, SMT industry, cellphone / mp3 industry and electronic toy industry, and etc...



Related Products:



Separating Machine Models: MT-810A, MT-810B, MT-810C, MT-810D



Difference: separating machine knife length



Model PCB Length
MT-810A Max. 400mm
MT-810B Max. 600mm
MT-810C Max. 900mm
MT810D Max. 1300mm



Warranty: One-year machine parts warranty



Image:

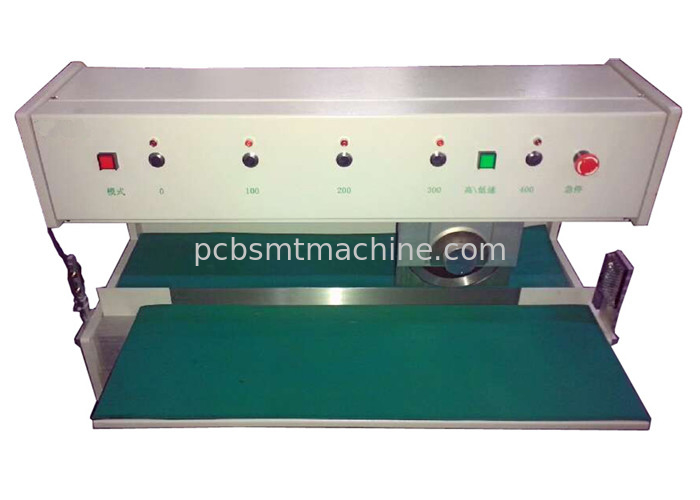

MT-810A PCB Separator
