Infinite Automation Co., Ltd. is Among the trusted name in supplying the best reconditioned second-hand SMT machines and factory automation solution products in China today. Our company is focusing on the supply of pre-owned Solder Paste Printers, SMT Chip Mounters, Automatic Optical Inspection, and other PCB assembly line solution products. Among our offered pre-owned and reconditioned Solder Paste Printing Machine is the GKG G-Star Solder Paste Printer. GKG G-Star Solder Paste Printing Machine is designed for handling medium size boards. G-Star is adept at delivering all your business needs. It successfully attained 01005 miniature printing. Through full contact with the stencil, our improved cleaning system ensures that any remaining paste in the mesh will be eliminated before printing. The 2D paste inspection function is able to detect insufficient paste, bridging, and other defects. G-Star is also equipped with a top and motorized side clamp, thereby ensuring superior printing quality.

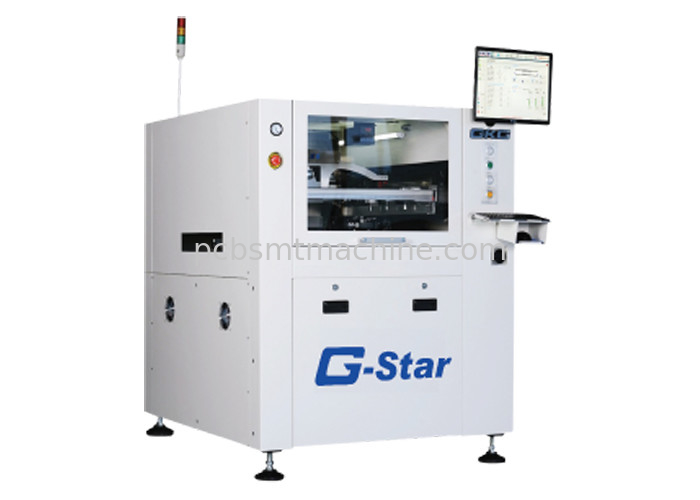

GKG G-STAR SOLDER PASTE PRINTER
TECHNICAL PARAMETERS:
| PERFORMANCE | |
| Machine Alignment Capability | 2Cmk @ ±12.5 microns 6 sigma |
| Process Alignment Capability | 2Cpk @ ±25 microns 6 sigma |
| Core Cycle Time | <8.5 secs |
| (excluding printing & cleaning time) | |
| Product Changeover Time | <3 mins |
| New Product Set-up Time | <10 mins |
|
BOARD HANDLING
|
|
| Max. Size (L x W) | 400 mm x 340 mm |
| Min. Size (L x W) | 50 mm x 50 mm |
| Thickness | 0.4~6 mm |
| PCB Thickness Adjustment | Manual (Auto is an option. PCB max. width reduced to 310 mm) |
| PCB Max. Weight | 3 kg |
| PCB Edge Clearance | 3 mm |
| PCB Bottom Clearance | 15 mm (7 mm with optional auto |
| PCB thickness adjustment) | |
| PCB Warpage | Max. 1% diagonally |
| Clamping Method | Top clamp (manual) and motorized side clamp |
| Support Method | Magnetic support pins, bars, blocks, Vacuum suction |
| Conveyor Direction | L to R, R to L, R to R, L to L (software control) |
| Conveyor Height | 900 ± 40 mm |
| Conveyor Speed | Max. 1,500 mm/s |
| Conveyor Width Adjustment | Automatic |
|
OPERATOR INTERFACE
|
|
| Hardware | LCD Monitor, Mouse & Keyboard |
| Operating System (OS) | Windows 10 |
| Control Method | Industrial PC controlled |
| I/O Interface | SMEMA Standard |
|
PRINTING PARAMETERS
|
|
| Stencil Frame Size (LXW) | Adjustable, 470 mm x 370 mm to 737 mm x 737 mm |
| Print Gap (snap-off) | 0~20 mm |
| Printing Table Adjustment Range | X: ±3 mm, Y: ±7 mm: ± 2° |
| Print Speed | 6~200 mm/s |
| Squeegee Pressure | 0.5~10kg (program control) |
| Squeegee Type | Std.: Metal, Option: OPC, rubber |
| Squeegee Angle | Std. 60°, Option 45°, 50°, 55° |
| Cleaning System | Auto wet, dry, vacuum (software select) |
|
OPTICAL SYSTEM
|
|
| Field-of-View (FOV) | 8 mm x 6 mm |
| Fiducial Types | Circle, triangle, square, diamond, cross |
| Fiducial size | 0.5~3.0 mm |
| Vision Methodology | CCD camera look up & down |
| 2D inspection | Max.100 windows to inspect missing & |
| insufficient (std.) | |
|
FACILITIES REQUIREMENT
|
|
| Power Supply | AC220V ± 10% 50/60Hz |
| Power Consumption | 2.5kW |
| Air Supply | 4 ~ 6Kgf/cm² |
| Dimension (excluding signal tower) | 1,158 mm (L) x 1,362 mm (W) x 1,463 mm (H) |
| Machine Weight | 1,000kg |
| OPTIONS |
| Paste Rolling Diameter Monitoring System |
| Stencil Apertures Inspection System |
| Auto Table Adjustment for PCB Thickness |
| SPI Closed-loop |
| External Barcode Scanner for PCB Traceability |
| Handheld Barcode Scanner for the stencil, solder paste, |
| squeegee traceability |
