Reconditioned GKG G-Duplex SMT Printer Machine For Dual Lane SMT Line 3 Stage Conveyor

I'm Online Chat Now

Reconditioned GKG G-Duplex SMT Printer Machine For Dual Lane SMT Line 3 Stage Conveyor

Reconditioned GKG G-Duplex SMT Printer Machine For Dual Lane SMT Line 3 Stage Conveyor
Reconditioned GKG G-Duplex SMT Printer Machine For Dual Lane SMT Line 3 Stage Conveyor

Large Image :  Reconditioned GKG G-Duplex SMT Printer Machine For Dual Lane SMT Line 3 Stage Conveyor

Product Details:
Place of Origin: China
Brand Name: GKG
Model Number: G-Duplex
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD
Packaging Details: Wooden Box
Delivery Time: 7 to 10 working days
Supply Ability: 1 unit

Reconditioned GKG G-Duplex SMT Printer Machine For Dual Lane SMT Line 3 Stage Conveyor

Description
Features: Perfect Match For Dual Lane SMT Line Payment Terms: 20% Deposit - 80% Before Delivery
Application: Solder Paste Printer Model: G-Duplex
Brand: GKG Condition: Original, Pre-owned And Reconditioned
Functionality: For Industrial Use Packaging: Wooden Box
Lead Time: 7-10 Days Payment: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
High Light:

G-Duplex SMT Printer Machine

,

Reconditioned gkg screen printer

,

SMT Printer Machine 3 Stage Conveyor

Infinite Automation Co., Ltd. is among the trusted name in supplying the best reconditioned second-hand SMT machines and factory automation solution products in China today. Our company is focusing on the supply of pre-owned Solder Paste Printers, SMT Chip Mounters, Automatic Optical Inspection, and other PCB assembly line solution products. Among our offered pre-owned and reconditioned Solder Paste Printing Machine is GKG G-Duplex Solder Paste Printer. This Solder Paste Printing machine is the perfect match for the Dual Lane SMT line. Equipped with a built-in traverser, G-Duplex is capable of matching with any dual-lane SMT mounter. Furnished with a 3-stage conveyor and back-to-back configuration, it enhances performance capability and efficiency. Nonetheless, it is also possible to operate independently to link up with any single-lane SMT line. Its high flexibility enables it to manage changes in production more effectively.

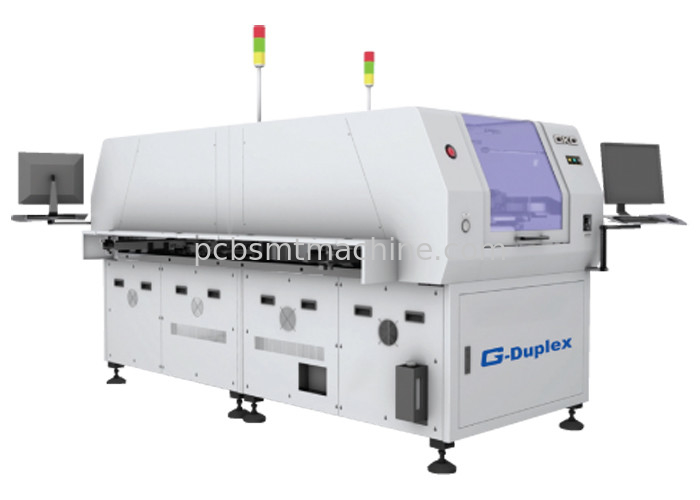

GKG G-DUPLEX SOLDER PASTE PRINTER

TECHNICAL PARAMETERS:



PERFORMANCE
Machine Alignment Capability 2 Cmk @ ± 10 microns 6 sigma
Process Alignment Capability 2 Cpk @ ± 18 microns 6 sigma
Core Cycle Time < 7.5 secs
(excluding printing & cleaning time)
Product Changeover Time < 3 mins
New Product Set-up Time < 10 mins
BOARD HANDLING
Max. Size (L x W) 400 mm x 300 mm
Min. Size (L x W) 50 mm x 50 mm
Thickness 0.4~6 mm
PCB Thickness Adjustment Automatic
PCB Max. Weight 3 kg
PCB Edge Clearance 3 mm
PCB Bottom Clearance 23 mm
PCB Warpage Max. 1% diagonally
Clamping Method Retractable top clamp, motor controlled side clamp
Support Method Magnetic support pins, bars, blocks, vacuum suction
Conveyor System 3 Stages with a built-in traverser
Conveyor Direction L to R, R to L, R to R, L to L
(software control)
Conveyor Height 900 ± 40 mm
Conveyor Speed Max. 1,500 mm/s
Conveyor Width Adjustment Automatic
OPTICAL SYSTEM
Field-of-View (FOV) 10 mm x 8 mm
Fiducial Types Circle, triangle, square, diamond, cross
Fiducial size 0.5~4.0 mm
Vision Methodology Digital CCD camera look up & down
2D inspection Max. 100 windows to inspect missing,
insufficient, bridging (std.)
OPERATOR INTERFACE
Hardware LCD Monitor, Mouse & Keyboard
Operating System (OS) Windows 7 or Higher
Control Method Industrial PC controlled
I/O Interface SMEMA Standard
PRINTING PARAMETERS
Stencil Frame Size (L X W) Adjustable, 470mm x 370mm to 650mm x 550mm
Print Gap (snap-off) 0~20 mm
Printing Table Adjustment Range X: ±3 mm, Y: ±7 mm: ± 2°
Print Speed 6~200 mm/s
Squeegee Pressure 0.5~10kg (program control)
Squeegee Type Std.: Metal: 280/350/420mm Option: OPC & rubber
Squeegee Angle Std. 60°, Option 45°, 50°, 55°
Cleaning System Auto wet, dry, vacuum (Software select)
FACILITIES REQUIREMENT
Power Supply AC220V ± 10% 50/60Hz
Air Supply 4 ~ 6Kgf/cm²
Power Consumption 2.5kW
Dimension (excluding signal tower) (2 units back-to-back) 1,616 mm (L) 2,770mm (W) x 1,493mm (H)
Machine Weight ( 2 units ) 2,000kg
OPTIONS
Auto Paste Dispenser (OPC)
Paste Rolling Diameter Monitoring System (OPC)
OPC Squeegee
Stencil Flattener
Stencil Apertures Inspection System
SPI closed-loop
External Barcode Scanner for PCB Traceability
Handheld Barcode Scanner for stencil, solder paste, squeegee traceability
