Product Details:
|
| Features: | Easy To Operate, Fully Automatic | Application: | Automatic Splicing Machine |
|---|---|---|---|
| Brand: | INFINITE™ | Model: | MTJL08-EC |
| Warranty: | 1 Year | Design: | Automatic Splicing Machine For 8mm Paper And Plastic Reel Tape |
| Reliability: | Industrial-grade | Packaging: | Wooden Crate |
| High Light: | MTJL08 EC Automatic Splicing Machine,SMT Automatic Splicing Machine,MTJL08 EC SMT Assembly Line |
||

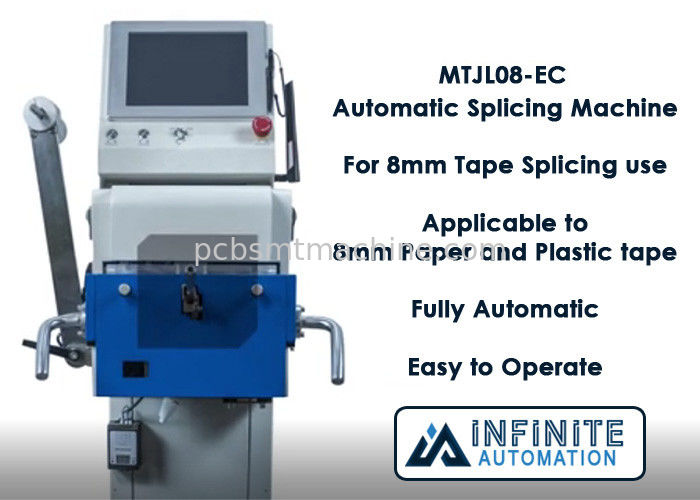

MTJL08 EC Automatic Splicing Machine For 8mm Paper And Plastic Reel Tapes
Easy to Operate Automatic Splicing Machine for 8mm Paper and Plastic Reel Tapes, Model MTJL08-EC
MTJL08-EC Automatic Splicing Machine is applied to the SMT production line, which can realize the functions of non-stop material change and automatic feeding of the tape reel. The equipment automatically detects empty pockets of the component reels, accurate alignment of old and new tape reels, and the pass rate ratio is more than 98%, reducing manual labor dependence (no skilled splice operator required). Helps improve production efficiency, solve the main problems of enterprises with poor splice connection, high machine pick-up error rate, and wrong components, etc. This machine is designed and programmed with software to provide accurate and error-proof splicing output. MT-BWJL08-EC Automatic Splicing Machine is lightweight, compact, and movable. This 8mm series Automatic Splicing Machine can meet different needs ,applicable to paper and plastic reels, and applicable to all types of SMT Machines. MTJL08-EC Automatic Splicing Machine is available only at Infinite Automation Co., Ltd. Please contact us for inquiries.
MTJL08-EC Automatic Splicing Machine - Specifications
| Model | BWJL08-EC |
| Equipment size | 400X470X1400 |
| Working height | 950MM |
| Equipment weight | 65KG |
| Applicable placement machine | Applicable to all type of SMT Machine |
| Applicable material tape | 8mm Paper Reel and Plastic/Embossed Reel |
| Splicing method | Automatic cutting, Automatic splicing |
| Splice length | 32MM |
| Splicing Accuracy | ± 0.2mm |
| Empty pocket detection method | CCD |
| Number of CCDs | 2 |
| Splicing cycle | 5sec, (no manual operation and empty material power measurement time gate) |
| Incoming Splice Tape | Roll |
| Number of Splice Tape Roll | 1200pcs./roll |
| Incoming Splice Clip | none |
| Pass Ratio | over 95% |
| Connect with MES System | can support |
| Computer | Industrial Tablet Computer |
| Display | none |
| Power supply | 4BV lithium battery X2 |
| Battery power supply time | 12-15H |
| Cutting method | Automatic cutting |
| Equipment Warranty | 1 year |
