Place of Origin:
China
Brand Name:
INFINITE™
Model Number:
MTJL08G and MTJL08G-Plus

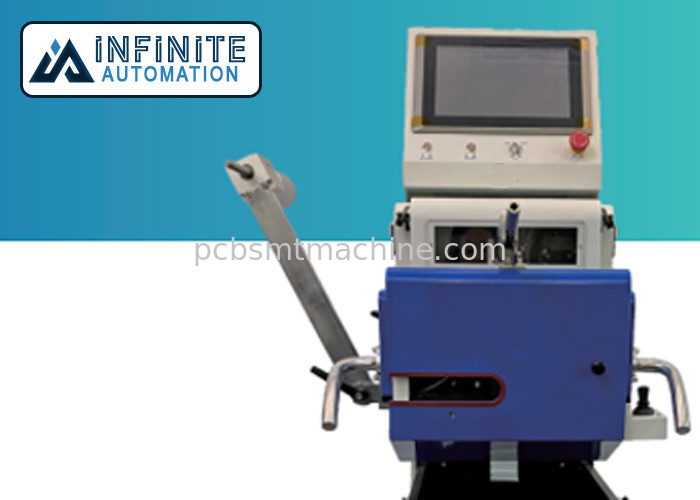

SMT Automatic Splicing Machine For Paper And Emboss Plastic Reels
Automatic Splicing Machine For 8mm, 12mm, And 16mm Paper And Emboss Plastic Reels, Model MTJL08G And MTJL08G-Plus
Automatic Splicing is applied in the SMT Production process to improve productions flow and component loss. Using the Automatic Splicing Machine, non-stop material change and automatic feeding of reels tapes can be easily done. MTJL08G and MTJL08G-Plus are Infinite Automation's latest models for Auto Splicing Process. MTJL08G and MTJL08G-Plus Automatic Splicing Machine is fully automatic and user-friendly equipment that will surely put ease and accuracy in your SMT assembly line process. Contact us to learn more about MTJL08G and MTJL08G-Plus Automatic Splicing Machine.
MTJL08G and MTJL08G-Plus Automatic Splicing Machine For 8mm Paper And Plastic Reel Tapes - Easy to Operate Automatic Splicing Machine for 8mm Paper and Plastic Reel Tapes
MTJL08G and MTJL08G-Plus Automatic Splicing Machine are applied to the SMT production line, which can realize the functions of non-stop material change and automatic feeding of the tape reel. The equipment automatically detects empty pockets of the component reels, accurate alignment of old and new tape reels, and the pass rate ratio is more than 98%, reducing manual labor dependence (no skilled splice operator required). Helps improve production efficiency, solve the main problems of enterprises with poor splice connection, high machine pick-up error rate, and wrong components, etc. This machine is designed and programmed with software to provide accurate and error-proof splicing output. MTJL08G and MTJL08G-Plus Automatic Splicing Machine are lightweight, compact, and movable. This 8mm series Automatic Splicing Machine can meet different needs, applicable to paper and plastic reels, and applicable to all types of SMT Machines. MTJL08G and MTJL08G-Plus Automatic Splicing Machine are available only at Infinite Automation Co., Ltd. Please contact us for inquiries.
MTJL08G and MTJL08G-Plus Automatic Splicing Machine Specifications
| Model | MTJL08G | MTJL08G-Plus |
| Equipment size | 440X470X1400 | 440X470X1400 |
| Working height | 950MM | 950MM |
| equipment weight | 75KG | 75KG |
| Electric booster wheel | Power wheel drive (standard) | Power wheel drive (standard) |
| Applicable placement machine | Applicable to any type of placement machine | Applicable to any type of placement machine |
| Applicable material belt | 8MM, 12MM, 16MM | 8MM.12MM.16MM.24MM |
| Receiving method | Automatic cutting. Automatic material splicing. | Automatic cutting. Automatic material splicing. |
| Length of splicing piece | Rear film 32MM, front film 32MM | Rear film 32MM, front film 22MM |
| Splice accuracy | Soil 0.2mm | Soil 0.2mm |
| Empty material detection method | CCD | CCD |
| Number of CCD | 2 | 2 |
| Picking cycle | 6-10SEC (Excluding manual operation and empty material detection time) | 6-12SEC (Excluding manual operation and empty material detection time) |
| Incoming material film | Coil | Coil |
| Number of film | 2 | 2 |
| Incoming keychain | none | none |
| Pass rate | above 95 | above 95 |
| Docking system | support | support |
| computer | Industrial Tablet PC | Industrial Tablet PC |
| Display | none | none |
| power supply | 48V carp battery X2/lithium iron phosphate | 48V lithium battery X2/lithium iron phosphate |
| Battery operation time | 10-12H | 10-12H |
| Cutting method | Auto cut | Auto cut |
| Equipment warranty | Equipment warranty for 1 year | Equipment warranty for 1 year |
| Other optional configuration | External mains power. Double receiving arms, printer | External mains power. Double receiving arms, printer |
