Product Details:
|
| Features: | Easy To Operate, Fully Automatic | Application: | Automatic Splicing Machine For 32mm ,44mm ,56mm, And 72mm Plastic Tapes |
|---|---|---|---|
| Brand: | INFINITE™ | Model: | MTJL3272-W |
| Warranty: | 1 Year | Design: | Automatic Splicing Machine |
| Reliability: | Industrial-grade | Packaging: | Wooden Crate |
| High Light: | Automatic Splicing Machine SMT Assembly Line,H950mm Automatic Splicing Machine,SMT Automatic Splicing Machine |
||
SMT Assembly Line Automatic Splicing Machine Suitable For Plastic Tapes
Automatic Splicing Machine Suitable For 32mm, 44mm, 56mm, And 72mm Plastic Tapes With Holes On Both Sides
SMT Automatic Splicing Machine is used in the SMT material preparation process. This equipment provides big help for quick material preparation, lessens human errors or wrong component preparation, minimizes component losses. Infinite Automation Co., Ltd. is introducing our latest innovation in auto splicing, with our latest Automatic Splicing Machine model MTJL3272-W. MTJL3272-W Automatic Splicing Machine is a fully automatic splicing machine with a user-friendly interface. This machine is designed for 32mm,44mm, 56mm, and 72mm plastic tapes with holes on both sides.

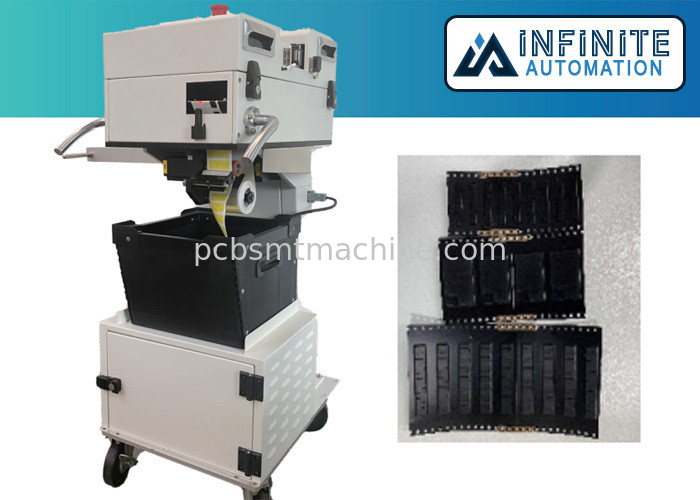

MTJL3272-W Automatic Splicing Machine for 32mm, 44mm, 56mm, and 72mm plastic tapes with holes on both sides
MTJL3272-W Automatic Splicing Machine is applied to the SMT production line, which can realize the functions of non-stop material change and automatic feeding of the tape reel. The equipment automatically detects empty pockets of the component reels, accurate alignment of old and new tape reels, and the pass rate ratio is more than 98%, reducing manual labor dependence (no skilled splice operator required). Helps improve production efficiency, solve the main problems of enterprises with poor splice connection, high machine pick-up error rate, and wrong components, etc. This machine is designed and programmed with software to provide accurate and error-proof splicing output. MTJL3272-W Automatic Splicing Machine is lightweight, compact, and movable. This 8mm series Automatic Splicing Machine can meet different needs, applicable to paper and plastic reels, and applicable to all types of SMT Machines. MTJL3272-W Automatic Splicing Machine is available only at Infinite Automation Co., Ltd. Please contact us for inquiries.
MTJL3272-W Automatic Splicing Machine Specifications
| Model | MTJL3272-W |
| Equipment size | 400mmx460mmxH950mm |
| Working height | 900mm |
| equipment weight | 50KG |
| Electric booster wheel | None, manual push and pull |
| Applicable placement machine | Applicable to any type of placement machine |
| Applicable material belt | Suitable for 32,44,56.72mm plastic tapes with holes on both sides |
| Receiving method | Automatic riveting of copper buckles on both sides; feeder automatic filming and manual attachment |
| Length of splicing piece | 45X17mm |
| Splice accuracy | ±0.2mm |
| Empty material detection method | none |
| Number of CCD | none |
| Picking cycle | 6sec (excluding manual work time) |
| Incoming material film | Coil |
| Number of film | 1 |
| Incoming copper buckle | Flakes |
| Pass rate | 99% |
| Docking system | none |
| computer | none |
| Display | Optional 7-inch touch screen |
| power supply | 48V lithium battery X2 |
| Battery operation time | 30hr |
| Cutting method | Manual cutting |
| Equipment warranty | Equipment warranty for 1 year |
| Other extended configuration | External mains, receiving clamp, right receiving arm, material box, etc. |
