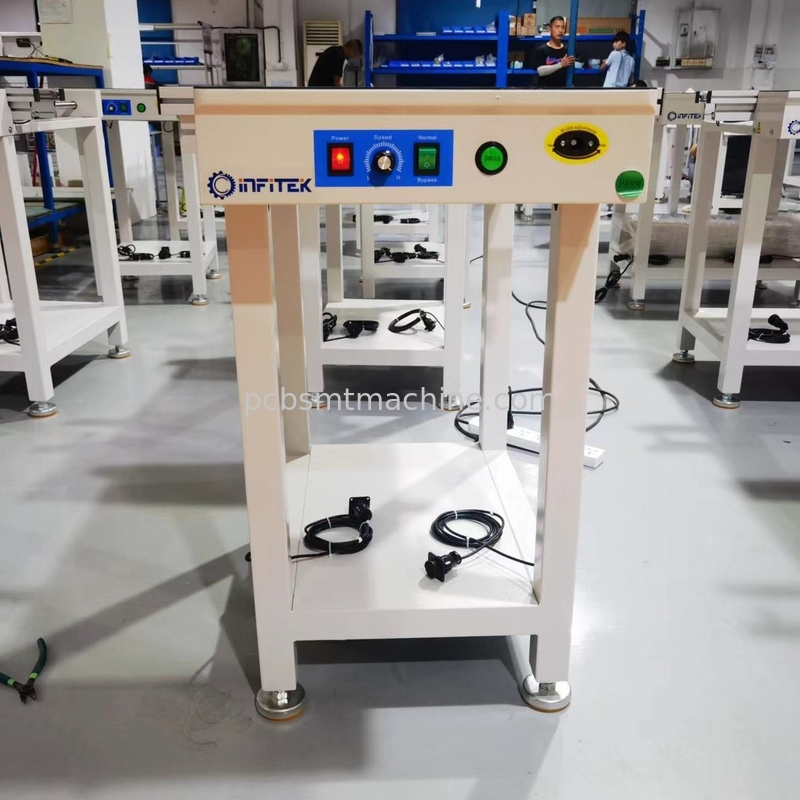

Dual Rail Conveyor SMT Assembly Line Durable SMT Link Conveyors

Dual Rail Conveyor SMT Assembly Line Durable SMT Link Conveyors
Dual Rail Conveyor SMT Assembly Line Durable SMT Link Conveyors
Dual Rail Conveyor SMT Assembly Line Durable SMT Link Conveyors Dual Rail Conveyor SMT Assembly Line Durable SMT Link Conveyors

Large Image :  Dual Rail Conveyor SMT Assembly Line Durable SMT Link Conveyors

Product Details:
Place of Origin: China
Brand Name: INFITEK
Model Number: DC-050M-N, DC-100M-N
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: crate
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Dual Rail Conveyor SMT Assembly Line Durable SMT Link Conveyors

Description
Features: Compatible SMEMA Interface Application: Link Conveyor For SMT Use
Description: SMT Dual Rail Conveyor Brand: INFITEK
Model: DC-050M-N, DC-100M-N Warranty: 1 Year Warranty
Reliability: For Industrial Use Packaging: Wooden Crate/box
Price: Negotiable
High Light:

Dual Rail Conveyor SMT Assembly Line

,

SMEMA Interface SMT Assembly Line

,

Dual Rail SMT Conveyor

Dual Rail Conveyor SMT Assembly Line Durable SMT Link Conveyors



SMT DUAL RAIL CONVEYOR, Modular Design SMT Conveyor Systems, High-Quality, And Durable SMT Link Conveyors



SMT DUAL RAIL CONVEYOR is used for connection between double track SMT manufacturing equipment and can also be manually inserted by buffering, inspection, testing, or electronic components of the PCB. The INFITEK dual-rail PCB belt conveyor is  SMEMA interface compatible.  INFITEK series dual-rail conveyor's weighted design improves stability. This SMT conveyor system can be used or set in inspection mode and automatic mode. We can also customize our design depending on our customer's requirements.



FEATURES:

  1. Custom machine length according to customer's requirement
  2. Order the number of multi-zone according to the customer's requirement
  3. Variable speed control
  4. Compatible SMEMA interface
  5. Modular design
  6. Weighted design improves stability
  7. Inspection mode and automatic mode
  8. Inducing multi-zone position accuracy
  9. Ergonomic design, make arms rest



TECHNICAL PARAMETERS:



Description This device is equivalent to an SMD machine or operator testing station of PCB assembly equipment
Belt type Use Round belt or oblate belt
Conveying speed 0.5 to 20M/min or customer specified
Power supply AC1P110V/220V
Power Max100VA
Tran sport height 900±20mm(0r customized)
Transport direction From left to right or right to left



SPECIFICATIONS:



Model Dimension (L*W*H MM) PCB size (MM) Weight (KG)
DC-050M-N 500*1046*900 50*50-330*250 80
DC-100M-N 1000*1046*900 50*50-330*250 95



Dual Rail Conveyor SMT Assembly Line Durable SMT Link Conveyors 0





Infinite Automation is focusing on providing alternative SMT Factory Automation and Production Solutions. We have a factory warehouse in China and offer sales of new and used SMT machines. ​Infinite Automation provides full SMT assembly line solutions, we offer brand new and best conditions second-hand/pre-owned SMT machines and equipment-Solder Paste Printer, SMT Mounter, AOI, SPI, Link Conveyors, Industrial Cleaners, and all factory automation products.
