Product Details:
|
| Features: | Minimize Clearance Between Conveyor | Application: | PCB Vacuum Loading In SMT Production Line |
|---|---|---|---|
| Description: | SMT Vacuum Loader | Brand: | INFITEK |
| Model: | LV-330W-TN, LV-460W-TN | Warranty: | 1 Year |
| Reliability: | Industrial-grade | Packaging: | Wooden Crate Or Wooden Box |
| High Light: | Vacuum Loader SMT Assembly Line,SMT Vacuum Loader,Industrial Grade SMT Assembly Line |
||

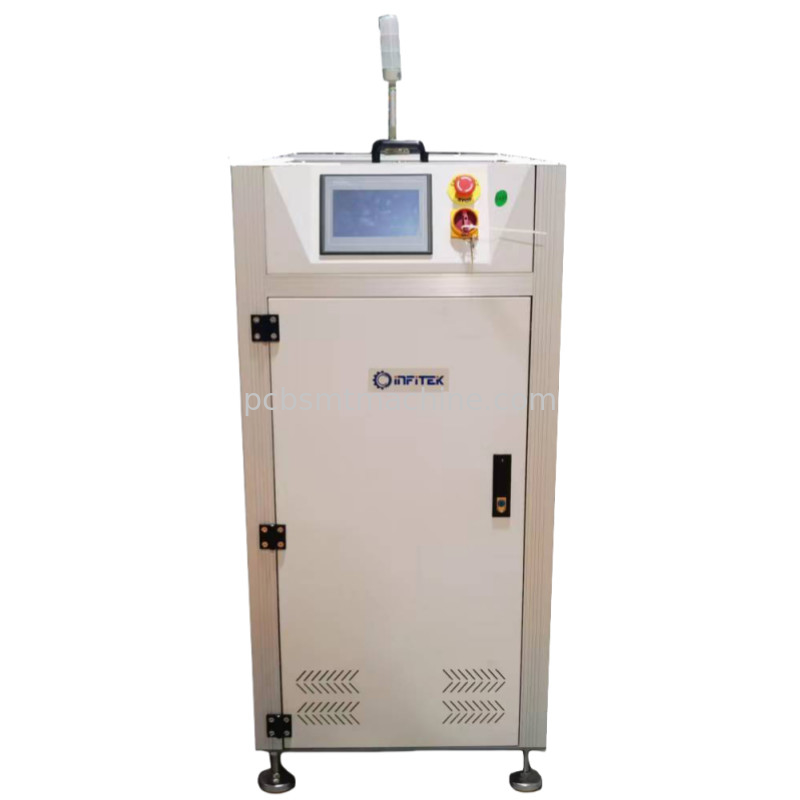

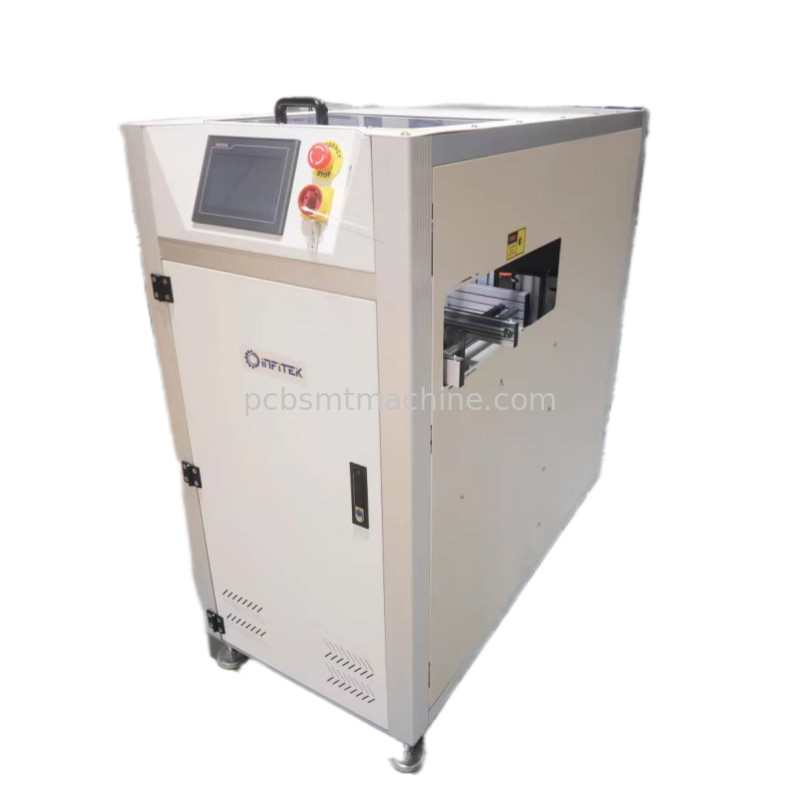

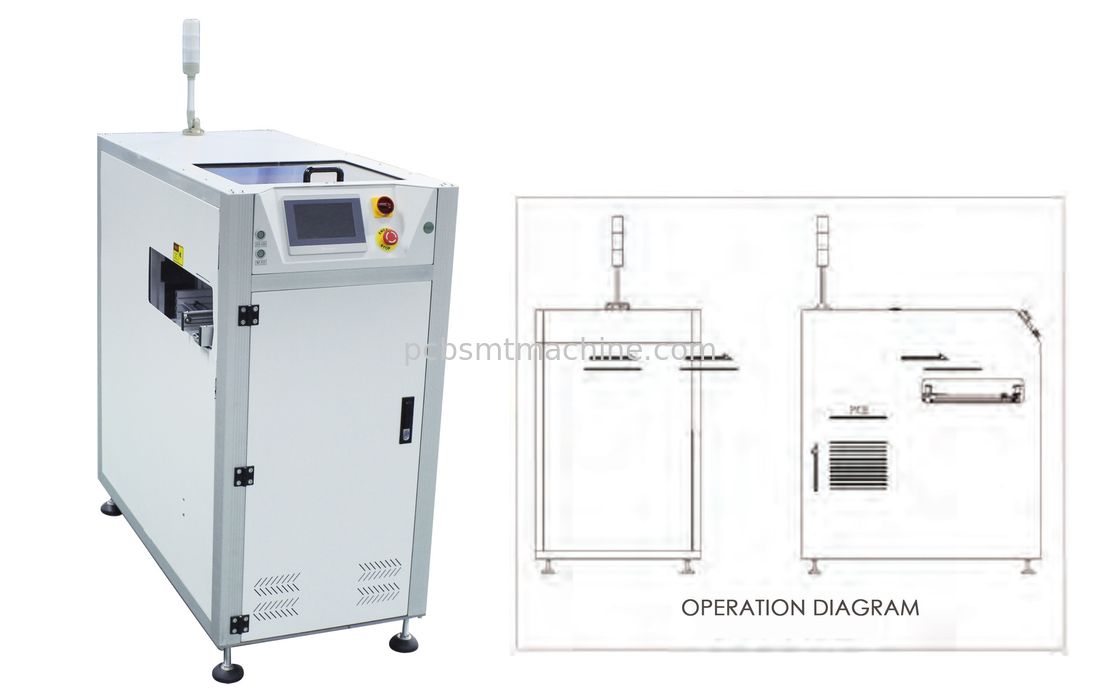

Vacuum Loader SMT Assembly Line Translation Type Suction Machine
SMT Vacuum Loader, Translation type suction machine, High-quality, and Durable SMT Link Conveyors
SMT Vacuum Loader is used for automatic loading operation of PCB in SMT Production Line. INFITEK Series Translation type suction machine has a touch screen control panel making this machine convenient and easy to operate. Equipped with a stepper motor, this SMT vacuum loader equipment provides smooth and precise translation. Infinite Vacuum Loading Machine is designed with a fully enclosed structure to ensure safe operations. Infinite SMT Vacuum Loader is available for different PCB sizes and we also customized machine size depending on customer's requirements.
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used for automatic loading operation into the transceiver board |
| Cycle time | Approx. 12seconds or specify |
| Power supply | AC1P110V/220V |
| Power | 150V max |
| Air pressure | 4-6bar,30ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
| SPECIFICATIONS | |||
| Model | Dimension (L*W*H MM) | PCB size (MM) | Weight (KG) |
| LV-330W-TN | 600*1002*1300 | 50*50-450*330 | 130 |
| LV-460W-TN | 800*1270*1300 | 50*50-530*460 | 150 |
Infinite Automation is focusing on providing alternative SMT Factory Automation and Production Solutions. We have a factory warehouse in China and offer sales of new and used SMT machines. Infinite Automation provides full SMT assembly line solutions, we offer brand new and best conditions second-hand/pre-owned SMT machines and equipment-Solder Paste Printer, SMT Mounter, AOI, SPI, Link Conveyors, Industrial Cleaners, and all factory automation products.
