| Features: | Durable - Long Service Life | Application: | PCB Loader And Unloader In SMT Production Line |
|---|---|---|---|
| Description: | L Type Loader/Unloader | Brand: | INFITEK |
| Model: | ULF-M-TN, ULF-L-TN, ULF-LL-TN, ULF-XL-TN | Warranty: | 1 Year |
| Reliability: | Design For Industrial Use | Packaging: | Wooden Box Package |
| High Light: | PCB Loader And Unloader,L Type PCB Loader And Unloader,SMT Magazine Loader |
||
L Type SMT Magazine PCB Loader And Unloader SMT Link Conveyors
L TYPE LOADER / UNLOADER, SMT PCB Loader And Unloader, High-Quality And Durable SMT Link Conveyors

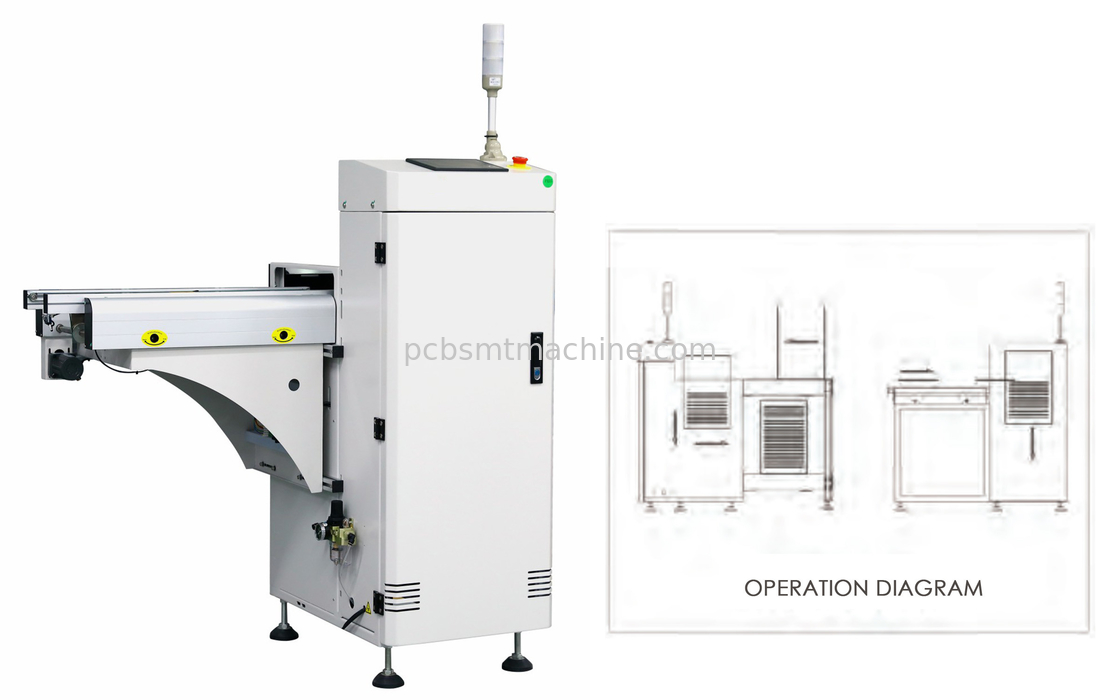

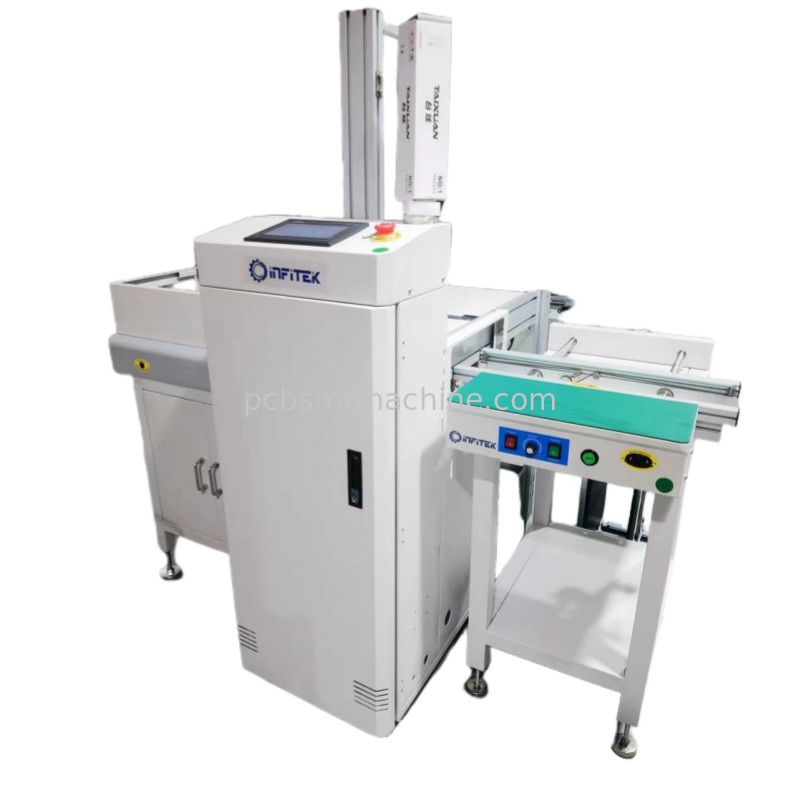

L Type Loader/Unloader is the equipment used to operate the upper board or lower board of the circuit board in the SMT production line. PCB loader and unloader are usually used for loading and unloading PCB board during the SMT process. Infinite L Type Loader and unloader have a stable and firm design, making this equipment durable and strong. Our L-type loader/unloader machine is equipped with a soft touch screen panel and with a user-friendly control interface. INFITEK L Type Loader/Unloader is designed with good safety features and a special gas circuit design that prevents PCB breakage.
Features:
| TECHNICAL PARAMETERS | |
| Description | This equipment is used to operate the upper board or lower board of the circuit board on the SMT production line |
| No. of magazine | Upper Conveyor:1 magazine, lower conveyor:1 magazine |
| Time feed PCB | Seconds 6 Approx. or specify |
| Magazine replacement time | Approx.30 seconds or specify |
| Indexing pitch | 10.20.30.40mm or specify |
| Power supply | AC1P110V/220V |
| Power | Max 300VA |
| Air pressure | 4-6bar,30ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
| SPECIFICATIONS | ||||
| Model | Dimension (L*W*H MM) | PCB size (MM) | Rack size (L*W*H MM) | Weight (KG) |
| ULF-M-TN | 1150*1150*1205 | 50*80-330*250 | 355*320*563 | 160 |
| ULF-L-TN | 1350*1350*1205 | 50*80-445*330 | 460*400*563 | 220 |
| ULF-LL-TN | 1550*1550*1205 | 50*80-530*390 | 535*460*563 | 280 |
| ULF-XL-TN | 1550*1780*1205 | 50*80-530*460 | 535*530*563 | 320 |
