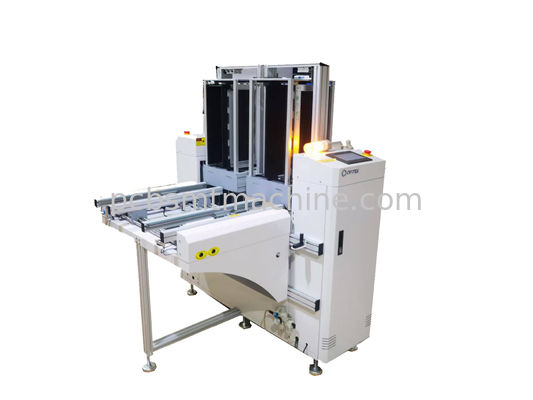

Dual Rail Unloader SMT Assembly Line Modular Design Link Conveyors
Dual Rail Unloader, Modular Design SMT Link Conveyors
A Dual Rail Unloader is a modular design SMT link conveyor system. This SMT Unloader System is used for the loading and unloading of double-sided PCBs and transceiver boards. INFITEK Dual Rail Conveyor is a high-quality SMT Link Conveyor made to be strong, firm, and has a very stable design that guarantees long service life. Use wear-resistant cables for durability and a longer equipment life span. INFITEK Dual Rail Conveyor is a user's friendly equipment equipped with an easy-to-operate soft-touch LED membrane control panel or touch screen (can be selected). INFITEK Dual Rail Conveyor also features a No PCB breakage guarantee because of the special gas circuit design.
Features:
Strong, firm, and stable design
User-friendly “soft touch” LED membrane control panel or touch screen can be selected
Top & bottom pneumatic clamps to secure magazine rack
No PCB breakage guarantee because of the special gas circuit design
Automatic diagnosing fault code display function
Wear-resistant cable and have a long service life
SMEMA compatible
| TECHNICAL PARAMETERS | |
| Description | This unit is used for the loading operation of double-Sided boards and transceiver board |
| No. of magazine | Upper Conveyor: 1 magazine, Lower Conveyor: 1 magazine |
| Magazine replacement time | Approx.30 seconds or specify |
| Indexing pitch | 10.20.30.40mm or specify |
| Power supply | AC1P110V/220V |
| Power | Max 300VA |
| Air pressure | 4-6bar,10ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
| SPECIFICATIONS | ||||
| Model | Dimension (L*W*H MM) | PCB size (MM) | Rack size (L*W*H MM) | Weight (KG) |
| BH-M-TN | 1800*1435*1250 | 50*80-330*250 | 355*320*563 | 320 |
| BH-L-TN | 2065*1690*1250 | 50*80-445*330 | 460*400*563 | 350 |
| BH-LL-TN | 2330*1810*1250 | 50*80-530*390 | 535*460*563 | 380 |
| BH-XL-TN | 2330*1950*1250 | 50*80-530*460 | 535*530*563 | 410 |
