Place of Origin:
China
Brand Name:
INFITEK
Model Number:
RC-050XL-TN, RC-100XLTN
Video

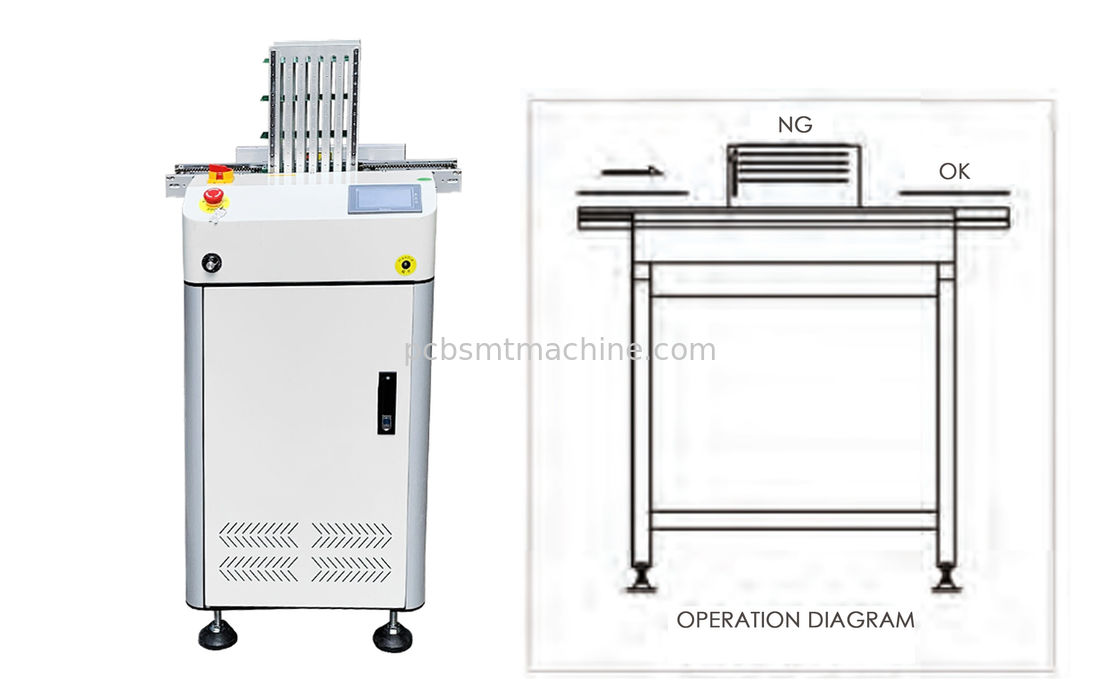

Standard PCB Filter Industrial SMT Assembly Line NG OK PCB Separator
Standard PCB Filter, NG/OK PCB separator, Modular Design SMT Link Conveyors
A Standard PCB Filter is an SMT Conveyor System that allows good and bad board separation in AOI, during testing, the good board can continue to run without interruption. INFITEK Standard PCB Filter Conveyor separates Good and NG PCB after AOI inspection. INFITEK Standard PCB Filter SMT Conveyor also has the functions of reject, inspect, and pass-through modes. INFITEK Standard PCB Filter has a modular design and stability is enhanced by its “robust design”. INFITEK Standard PCB Filter Conveyor is available in different lengths and multi-zone concepts available upon request.
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit allows good and bad board separation in AOI, during testing, the good board can continue to run without interrupting |
| Belt type | Antistatic oblate belt |
| Conveying speed | 0.5-20M/min or customer specified |
| Power supply | AC1P110V/220V |
| Power | Max 100VA |
| Storage plate number | 8pcs (or specify) |
| Storage plate distance | 20mm (or specify) |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
| SPECIFICATIONS | |||
| Model | Dimension (L*W*H MM) | PCB size (MM) | Weight (KG) |
| RC-050XL-TN | 500*793*900 | 50*50-460*460 | 70 |
| RC-100XLTN | 1000*793*900 | 50*50-530*460 | 105 |
