Place of Origin:
China
Brand Name:
INFITEK
Model Number:
BD-L-TN, BD-XL-TN
Video

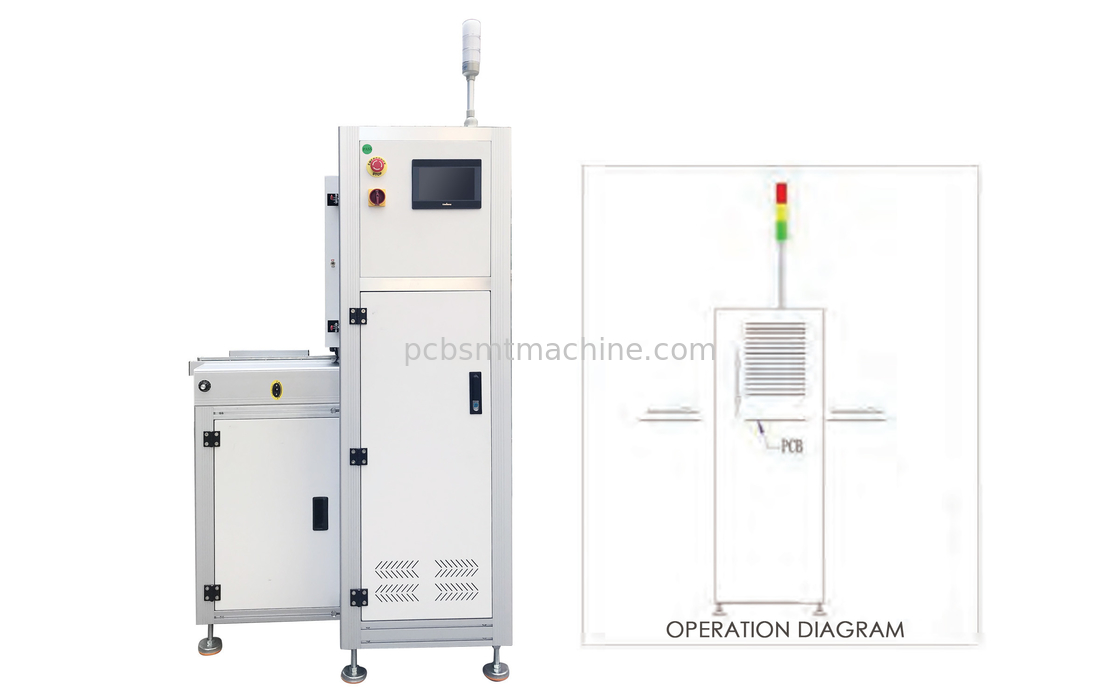

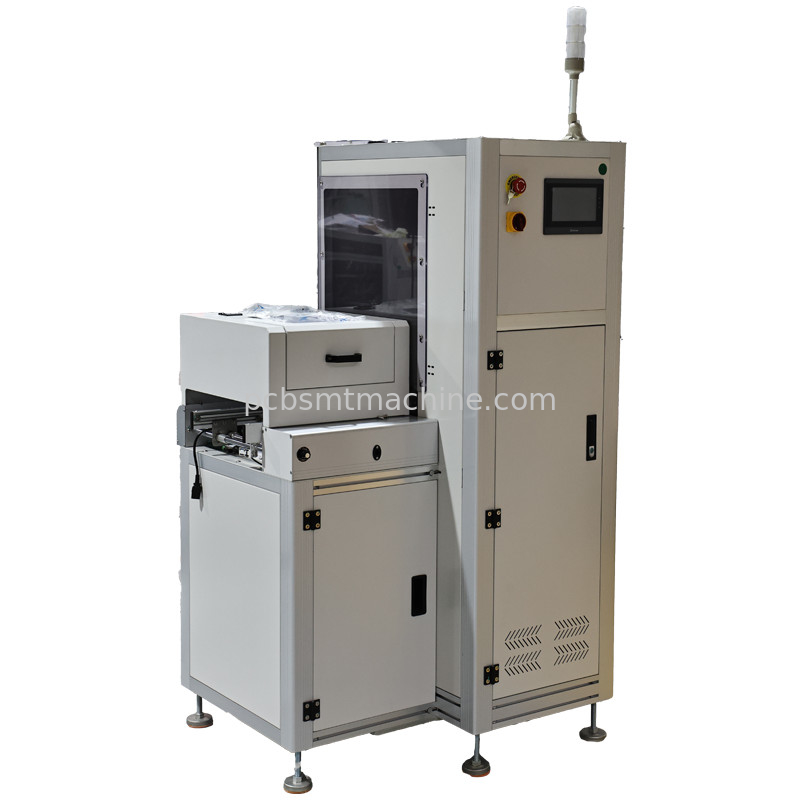

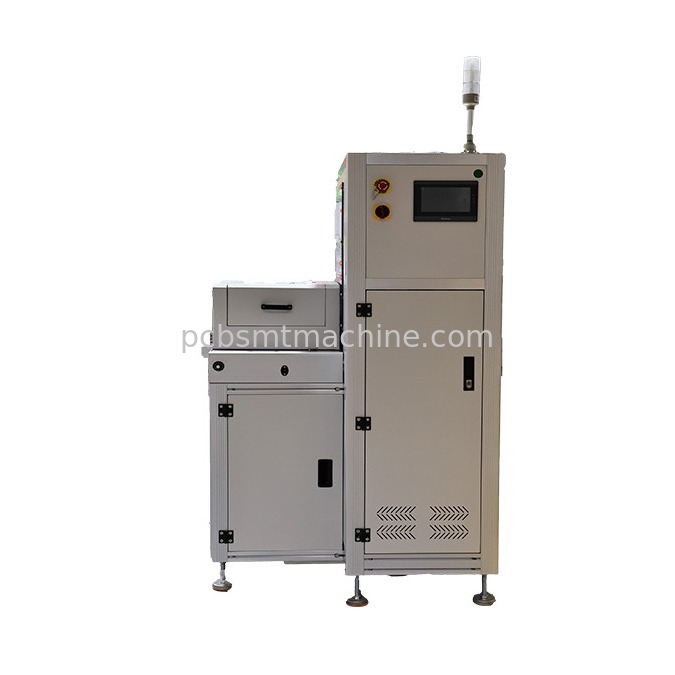

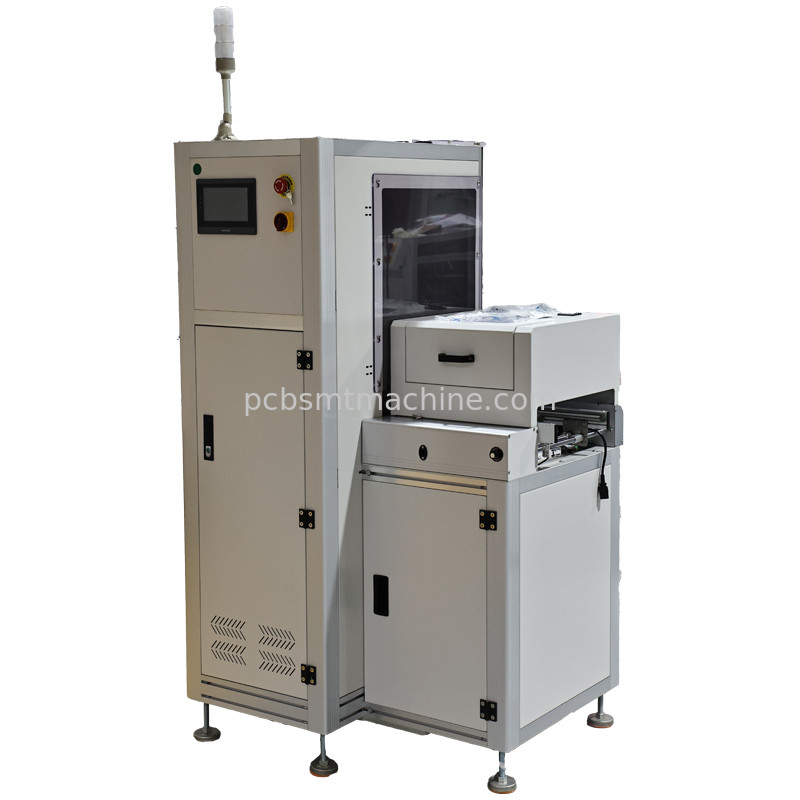

Multifunctional Vertical Type Buffer SMT Assembly Line PCB Conveyor
Multifunctional Vertical Type Buffer, Modular Design SMT Link Conveyor
INFITEK Multifunctional Vertical Type Buffer is used as a buffer between SMT machines. This multi-function buffer conveyor has a maximum capacity to buffer up to 25 pcs. PCBs and also can be specified according to customers' requirements. INFITEK Multifunctional Vertical Type Buffer Conveyor has an easy-to-use membrane control panel. INFITEK Multifunctional Vertical Type Buffer can be set in three (3) operation modes; FIFO, LIFO, and Pass-through. INFITEK Vertical Type Buffer is made from high-quality materials and with an enclosed design to ensure the highest level of safety. Equipped with a lead screw for smooth and easy rail width adjustments. INFITEK Multifunctional Vertical Type Buffer uses a wear-resistant anti-static belt for transmission.
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used as a buffer between the SMT machine |
| Cycle time | Approx.10 seconds |
| Maximum PCBs magazine | 25pcs or specify |
| Power supply | AC1P110V/220V |
| Power | Max 250VA |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
| SPECIFICATIONS | |||
| Model | Dimension (L*W*H MM) | PCB size (MM) | Weight (KG) |
| BD-L-TN | 1000*790*1640 | 50*50-445*350 | 190 |
| BD-XL-TN | 1200*900*1640 | 50*50-530*460 | 240 |
