Product Details:
|
| Features: | This Unit Is Used To Invert PCBs(180 O) For "double-sided" Process | Application: | Double-sided PCB Flipper/Inverter Conveyor |
|---|---|---|---|
| Description: | SMT PCB Inverter / PCB Flipper Conveyor | Brand: | INFITEK |
| Model: | BI-350W-TN, BI-460W-TN | Warranty: | 1 Year Warranty |
| Reliability: | For Industrial Use | Packaging: | Wooden Crate/box |
| High Light: | 150VA SMT Assembly Line,Flipper Conveyor SMT Assembly Line,PCB Flipper Conveyor |
||

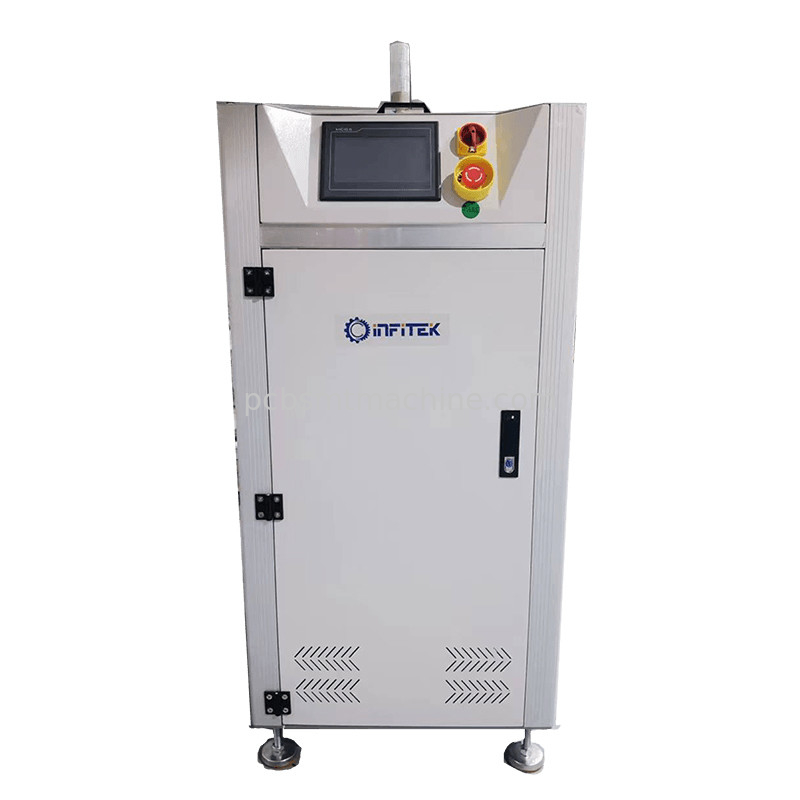

PCB Flipper Conveyor SMT Assembly Line Double Sided Inverter Conveyor
SMT PCB Inverter / PCB Flipper Conveyor, Double-Sided PCB Flipper/Inverter Conveyor, Modular Design SMT Link Conveyor
INFITEK SMT PCB Inverter / PCB Flipper Conveyor is used to invert PCBs (180 degrees) for the "double-sided" process production. INFITEK SMT PCB Inverter / PCB Flipper Conveyor module is designed to invert (flip) boards and feed them into the production line from an integral flat-belt-type conveyor. This SMT conveyor system is designed with an easy-to-use “soft-touch” LED control membrane control panel. INFITEK SMT PCB Inverter / PCB Flipper Conveyor has steady and precise lifting (retractable motor) and an easy PCB rail width adjustment lead screw. With enclosed design with a turn limiter that ensures the highest level of safety. INFITEK PCB Inverter/Flipper is available in different sizes and can be customized upon request
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used to invert PCBs(180 degrees) for the "double-sided" process |
| Cycle time | Approx.10 seconds |
| Belt type | oblate belt |
| Power supply | AC1P110V/220V |
| Power | Max 150VA |
| Air pressure | 4-6bar, 1.1ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
| SPECIFICATIONS | |||
| Model | Dimension (L*W*H MM) | PCB size (MM) | Weight (KG) |
| BI-350W-TN | 500*725*1250 | 50*50-445*350 | 120 |
| BI-460W-TN | 600*856*1250 | 50*50-550*460 | 160 |
