Product Details:
Place of Origin: China
Brand Name: INFITEK
Model Number: AC-350W-N, AC-460W-N
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: crate
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Telescopic SMT Conveyor SMT Assembly Line Precision Link Conveyor

Description
Features: This SMT Sliding Gate Conveyor Is Necessary For Channel Production Line Description: Telescopic SMT Conveyor For SDM Line
Application: Sliding Type Safety Passageway Link Conveyor For SMT Production Line Brand: INFITEK
Model: AC-350W-N, AC-460W-N Warranty: 1 Year Warranty
Reliability: For Industrial Use Packaging: Wooden Crate/box
High Light:

Telescopic SMT Assembly Line

,

200VA SMT Assembly Line

,

200VA Precision Link Conveyor

Telescopic SMT Conveyor SMT Assembly Line Precision Link Conveyor



Telescopic SMT Conveyor For SDM Line, SMT Telescopic Gate Conveyor, Modular Design SMT Link Conveyor

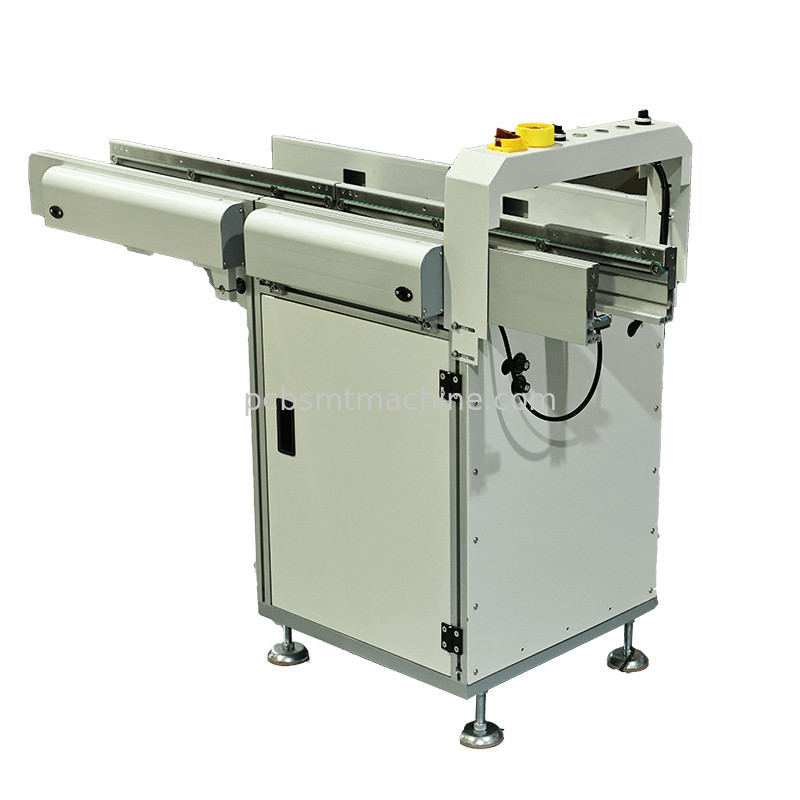

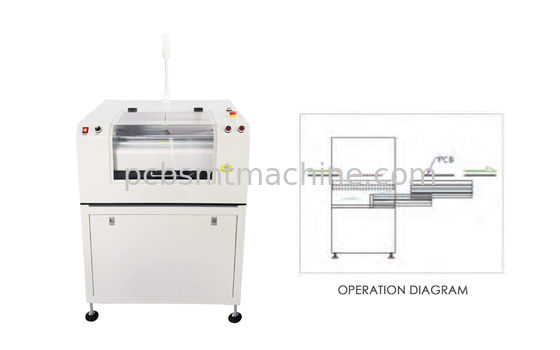

INFITEK Telescopic SMT Conveyor is a sliding type gate conveyor used in the SMT Production Line. This Telescopic Gate Conveyor is a piece of necessary equipment for the channel SMT production line. INFITEK SMT Telescopic Gate Conveyor provides ease of access in passing through the back and front of the production line and provides absolute safety for operators and SMT personnel. INFITEK Telescopic SMT Conveyor has a retractable mechanism enclosed design to ensure the operation's security level. INFITEK Telescopic Conveyor is equipped with safety sensors to enhance security and safety. Designed with a user-friendly LED control panel for easy operations. The top cover can be opened for easy access to hardware during maintenance.



Features:

  • User-friendly “soft-touch” LED control membrane control panel
  • Retractable mechanism enclosed design ensures operational security level
  • The top cover can be opened for easy access to hardware during maintenance
  • Parallel and smooth width adjustment (lead screw)
  • Steady and precise stretch (retractable motor)
  • Minimize transmission clearance between conveyors
  • Equipped with safety sensors to enhance security
  • 700mmwide channel or customer specified
  • SMEMA compatible



TECHNICAL PARAMETERS
Description This equipment is necessary for the channel production line
Belt type oblate belt
Conveying speed 0.5-20M/min or customer specified
Power supply AC1P110V/220V
Power Max 200VA
Transport height 900±20mm (0r customized
Transport direction From left to right or right to left





SPECIFICATIONS
Model Dimension (L*W*H MM) PCB size (MM) Weight (KG)
AC-350W-N 1500*650*1050 50*50-445*350 200
AC-460W-N 1500*760*1050 50*50-530*460 230





Telescopic SMT Conveyor SMT Assembly Line Precision Link Conveyor 0
