Product Details:
Place of Origin: China
Brand Name: INFITEK
Model Number: BF-L-BN, BF-L-BN, UB-400W, UB-500W
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: crate
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

100VA Wave Soldering Machine Up And Down Belt Conveyor Assembly Line

Description
Features: This Unit Is Used To The Transmission Of The PCBs Of Wave Soldering Inlet Application: Slant Conveyor For Use For Wave Solder Process
Description: Wave Soldering Machine Up And Down Belt Conveyor Brand: INFITEK
Model: BF-L-BN, BF-L-BN, UB-400W, UB-500W Warranty: 1 Year Warranty
Reliability: For Industrial Use Packaging: Wooden Crate/box
High Light:

100VA Wave Soldering Machine

,

220V Wave Soldering Machine

,

35B Nylon Belt Conveyor

100VA Wave Soldering Machine Up And Down Belt Conveyor Assembly Line



Wave Soldering Machine Up And Down Belt Conveyor, Assembly Line Slant Belt Conveyor for use for Wave Solder Process

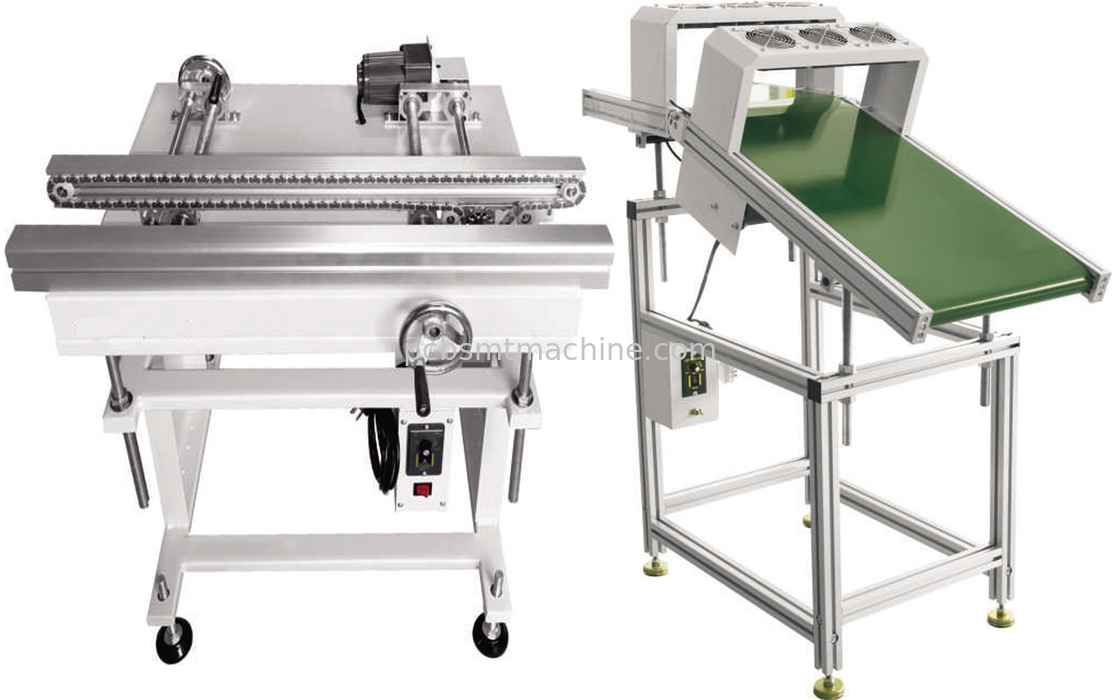

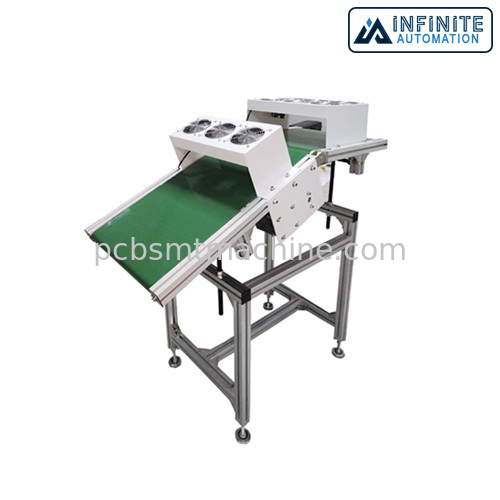

INFITEK Wave Soldering Machine Up And Down Belt Conveyor is a slant belt conveyor used in board transfer for the Wave Solder Process. This PCB Belt Conveyor unit is used for the transmission of the PCBs of the Wave soldering inlet. This Assembly Line Slant Belt Conveyor features a stable structure design. You can also choose from 2 frame options, a rectangular welding frame or an aluminum profile frame can be selected. INFITEK Wave Soldering Machine Up And Down Conveyor have a convey speed and height adjustment. This Wave Soldering Slant Conveyor is available in different sizes and can be customized upon request.



Features:

  • Speed adjusts the torque of easy to operate
  • Structure stability
  • Select rectangular welding frame or aluminum profile frame optional
  • Parallel and smooth width adjustment (lead screw)
  • Convey speed and height adjustment
  • Minimize transmission clearance between conveyors
  • Different sizes available upon request
TECHNICAL PARAMETERS
Description This unit is used for the transmission of the PCBs of the Wave soldering inlet
Belt type 35B Nylon chain or specify
Conveying speed 0.5-20M/min or customer specified
Power supply AC1P110V/220V
Power Max 100VA
Transport direction From left to right or right to left





SPECIFICATIONS
Model BF-L-BN BF-L-BN UB-400W UB-500W
Dimension(L*W*H MM) 800*600*750 800*700*750 1200*520*1400 1200*620*1400
PCB size(MM) 50*50-445*350 50*50-530*460 50*50-445*350 50*50-530*460
Weight(KG) 35 45 35 45





100VA Wave Soldering Machine Up And Down Belt Conveyor Assembly Line 0
