Product Details:
Place of Origin: China
Brand Name: INFITEK
Model Number: LC-460W-TN (Upper), LC-460W-TN (Lower)
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: wooden box
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Stacked Upper And Lower SMT PCB Stacking Machine SMT Link Conveyor

Description
Features: PCB Capacity - 400pcs (0.6mm Thick PCB) Description: Stacked Upper And Lower Board
Application: SMT PCB Board Stacking Machine Brand: INFITEK
Model: LC-460W-TN (Upper), LC-460W-TN (Lower) Warranty: 1 Year Warranty
Reliability: For Industrial Use Packaging: Wooden Crate/box
High Light:

SMT PCB Stacking Machine

,

Link Conveyor Stacking Machine

,

Stacking Machine SMT Link Conveyor

Stacked Upper And Lower SMT PCB Stacking Machine SMT Link Conveyor



Stacked Upper and Lower Board, SMT PCB board stacking machine, SMT Link Conveyor

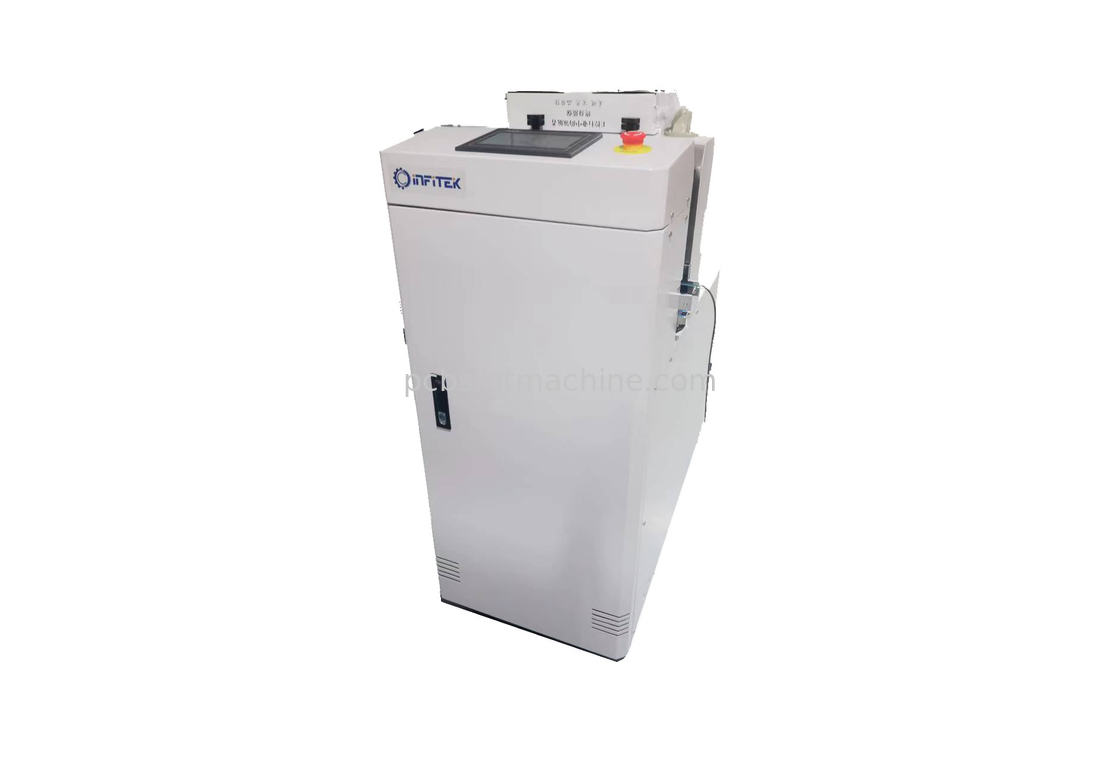

INFITEK Stacked Upper and Lower Board is an SMT link conveyor used to operate the upper and lower boards of the production line. This SMT PCB Stack conveyor is capable of loading up to 400 pcs. PCBs with 0.6mm thickness. INFITEK Stacked Upper and Lower Board have a user-friendly interface. A soft-touch LED control panel or touch screen monitor can be selected. A stepper motor provides smooth and precise PCB translation. Made of aluminum structure and a weighted bottom design to provide stability and not easy to shift from its position. Infinite Automation provides high-quality and durable SMT link conveyors and production line machines and equipment. Contact us to learn more about the INFITEK Stacked Upper and Lower Board is an SMT link conveyor.



Features:

  • User-friendly, soft-touch, LED membrane control panel or touch screen can be selected
  • Aluminum structure, Bottom weight design, not easy to shift
  • Bypass mode provided
  • Smooth and precise translation (stepper motor)
  • Increased load without interference
  • Minimize clearance between conveyor
  • SMEMA compatible
TECHNICAL PARAMETERS
Description This equipment is used to operate the upper and lower boards of the production line
Cycle time Approx. 10 seconds or specify
Maximum PCBs capacity 400pcs (0.6mm thick PCB)
Power supply AC1P110V/220V
Power Max 100VA
Air pressure 4-6bar,30ltr/min max
Transport height 900±20mm (or customized)
Transport direction From left to right or right to left





SPECIFICATIONS
Model Dimension (L*W*H MM) PCB size (MM) Weight (KG)
LC-460W-TN (Upper) 550*889*1200 50*50 - 460*460 200
LC-460W-TN (Lower) 503*889*1200 50*50 - 460*460 180
