FPC Production Fully Auto Pendulum Machine Recognition And Arrangement

Description
Features: Windows 7 Operation Interface Description: Fully Automatic Pendulum Machine
Application: FPC Production Automatic Parts Recognition And Arrangement Brand: INFINITE™
Model: ABP600 Warranty: 1 Year Warranty
Reliability: For Industrial Use Packaging: Wooden Crate/box
High Light:

FPC Production Pendulum Machine

,

Recognition 0.1mm Pendulum Machine

,

Recognition 0.1mm SMT Assembly Machine

FPC Production Fully Auto Pendulum Machine Recognition And Arrangement



Fully Automatic Pendulum Machine, FPC Production Automatic Parts Recognition And Arrangement



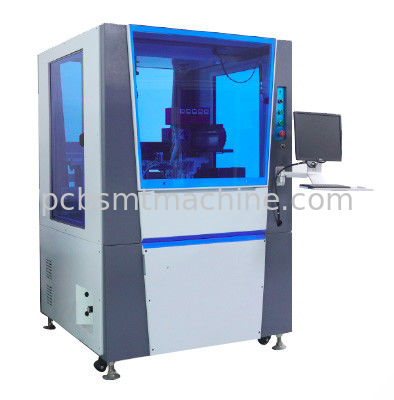

INFINITE™ Fully Automatic Pendulum Machine is required equipment for flexible printed circuit board production. This device is used for part arrangement and provides part arrangement solutions in the FPC production process, INFINITE™ Fully Automatic Pendulum Machine is capable of FPC Automatic Parts Recognition and Arrangement automatic identification of front and back of the product. Automatically identify, mark, and discard NG products. INFINITE™ Fully Automatic Pendulum Machine is applicable for 2*2mm to 80*80mm FPC sizes. Uses a Windows7 operation interface and is controlled through independently developed software. INFINITE™ Fully Automatic Pendulum Machine is capable of storing 1000 programs. Easy program change - visual teaching repeats production change for about 5-15minutes, new product change within 30 minutes).



Features:

  • Automatic identification of product front and back.
  • The marked NG products are automatically identified and discarded.
  • Independent research and development of software and hardware
  • X, Y, θ alignment using linear motor +servo motor alignment high speed, high precision: using five suction head. swing plate more efficient.
  • FPC adopts direct vibration + flat vibration feeding, which can put a lot of materials at the same time, and can automatically vibrate and scatter FPC; the Feeding method can be changed according to customer requirements.
  • Automatic feeding of blister board, suitable for various sizes of the suction tray.
TECHNICAL PARAMETERS
Description This device is used for part arrangement and provides part arrangement solutions
Operating system Windows7 operation interface
Control technology Industrial computer + motion control card + automatic image correction
Product program storage 1000 species
Teaching by changing production Visual teaching repeats production change for about 5-15minutes, new product change within 30 minutes)
Information display Single-chip cycle, total output, daily output, alarm information; other production information needs to be customized
Precision of swing plate ±0.15mm (excluding FPC deformation)
Cycle Time Up to 1 pcs/S (depending on FPC shape)
NG plate treatment Automatically identify the marked NG plate, and then absorb the discarded material
FPC material supply mode Vibration plate or belt line automatic punch (customized according to customer requirements)
Supply method of blister tray Stackable automatic feeding (0-200mm)
Industrial camera One 20 megapixel + one 10 megapixel
Recognition accuracy 0.1mm
Main power supply AC: 220±10%, 50/60HZ, 5KW
Air source 4~6 Kgf/cm2
SPECIFICATIONS
Model ABP600
Dimension (L*W*H MM) L1300*W1380*H1850mm
Shape Floor standing
Weight (KG) About 1200kg
FPC size 2*2mm - 80*80mm
Size of suction tray 300*200mm - 400*350mm
Number of suction heads five
