Place of Origin:
China
Brand Name:
INFITEK
Model Number:
B-QXD02-XL-TN
Video

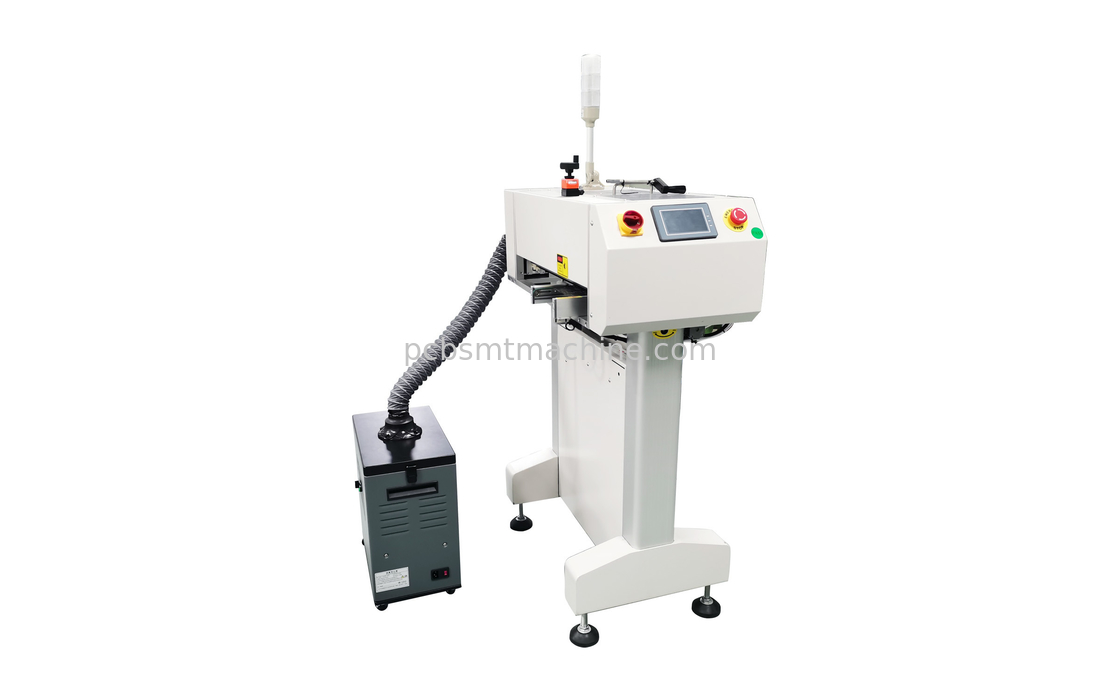

50*50mm 530*460mm PCB Cleaning Machine For SMT Production Line
PCB Cleaning Machine, SMT Production Line Automatic PCB Cleaner, 50*50mm-530*460mm PCB Size
INFITEK PCB Cleaning Machine is an online SMT Production Line Equipment used for cleaning the PCB surface from dirt, dust, oil, and other foreign objects that may cause static electricity from its surface. This Automatic PCB Cleaning Machine is designed with multiple dust removal parts, an ion air rod (blowing ion air) +1 group of spiral brushes + a vacuum system +1 group of dust sticking drums + vacuum dust collection, the dust removal efficiency can reach 99%. INFITEK PCB Auto Cleaning Machine is easy to operate and uses a touch screen controller. Design with an enclosed body to ensure operational safety level. INFITEK PCB Cleaning Machine is applicable to PCB with a size range from 50*50mm to 530*460mm.
Features:
| TECHNICAL PARAMETERS | |
| Description | This machine is used to remove the dirt from the PCB surface to eliminate static electricity |
| Speed | 0-9m/min adjustable |
| Power supply | AC1P110V/220V |
| Power | Max 300VA |
| PCB thickness | 0.6-5mm |
| Air pressure | 4-6bar,10ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
| SPECIFICATIONS | |||
| Model | Dimension (L*W*H MM) | PCB size (MM) | Weight (KG) |
| B-QXD02-XL-TN | 500*770*1114 | 50*50-530*460 | 100 |
