5 Axis Automatic Soldering Machine Flexible And Diverse

Description
Application: Automatic Soldering Application Description: 5 Axis Automatic Soldering Machine
Part Number: MT-5X331R Brand: INFINITE™
Condition: Original China Brand - Brand New Lead Time: 5 To 10 Working Days
Packaging: Wooden Box Payment: L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
High Light:

5 Axis Automatic Soldering Machine

,

Multi Axis Soldering Machines

,

Five Axis Automatic Soldering Machine

5 AXIS AUTOMATIC SOLDERING MACHINE MT-5X331R | INFINITE™ - Multi-Axis Soldering Machine China Manufacturer



High-Quality, Original and Branded Parts Multi-Axis Soldering Machines

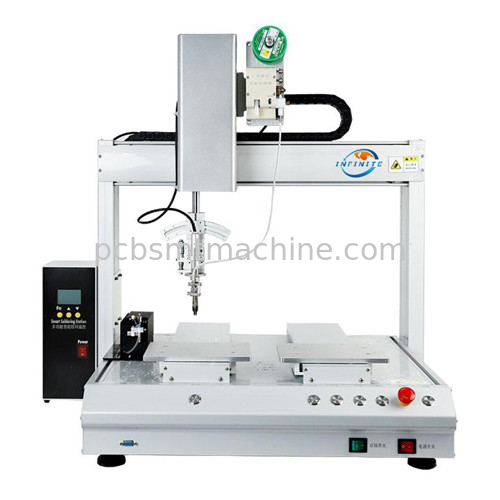

MT-5X331R 5 AXIS AUTOMATIC SOLDERING MACHINE is a flexible and diverse soldering machine. Capable of welding at different angles, support spot welding, and drag welding simultaneously. This Multi-Axis Soldering Machine is designed with a simple programming method, you can teach the coordinates of the solder joints and operate the teaching box to guide the end of the movement to reach the solder joints.



Equipped with a Weller temperature control system which can keep the temperature set by the soldering iron head stable. The multi-axis linkage manipulator is all driven by the Japanese Shinano motor and advanced motion control algorithm, which effectively improves the positioning accuracy and repeatability of the soldering iron head.



Uses Imported accessories – Weller Heater, LeadShine Motor, Taiwan HiWin Lead Guide, Eletech Transfer Belt, Taiwan MEAN WELL power supply, Japan Omron photoelectric switch, Hongbo switch, Japan Omron relay, Infinite Brand Temperature Control System with original and imported parts.



Advantages and key parts introduction



1. Flexible and diverse soldering methods, which can be welded at different angles, and support spot welding and drag welding simultaneously. All process parameters can be set by the user to adapt to various difficult operations and micro-soldering processes.



2. Simple programming method, you can directly input the coordinates of the solder joints, you can teach the coordinates of the solder joints, and operate the teaching box to guide the end of the movement to reach the solder joints.



3. Weller heating core, heating and cooling quickly, only 25 seconds from room temperature to the set temperature of 500 °C, and the temperature error is ±2 °C. The temperature compensation is fast, uniform, and stable; the temperature rise is fast, the temperature compensation is fast, and the heat conduction efficiency is high.



4. The Infinite temperature control system can keep the temperature set by the soldering iron head stable, and it will not wait for the soldering iron head to return to temperature because the heat is absorbed by the parts or the PC board. The phenomenon causes poor welding quality.



5. The multi-axis linkage manipulator is all driven by Leadshine motor and advanced motion control algorithm, which effectively improves the positioning accuracy and repeatability of the moving end (soldering iron head). The accuracy of +0.02mm ensures the accuracy of the welding position during the production process.



6. Imported accessories, stable and durable: Weller Heater, LeadShine Motor, Taiwan HiWin Lead Guide, Eletech Transfer Belt, Taiwan MEAN WELL power supply, Japan Omron photoelectric switch, Hongbo switch, Japan Omron relay, Infinite Brand Temperature Control System with original and imported parts.



7. There are more than hundreds of soldering iron heads, and various soldering iron heads can be designed according to the customer's product requirements. High-strength alloy soldering iron tip, long life, good heat conduction effect, no tin loose, multi-layer coating resistant to high-temperature oxidation.



Equipment technical parameters



Model MT-5X331R
Temperature Control System Infinite
Heater Weller
Temperature range 0-500°C
Temperature error ±2°C
Solder range X/Y/Z(mm) 500/300/300/100/360°
Maximum load 15kg
Movement speed (mm/sec) 0 - 800
Decomposition ability 0.01 mm/Axis
Repeatability ± 0.02 mm/
Program recording mode More than 100 groups
Display method LCD teaching
Motor system Leadshine
Lead Guide Taiwan HiWin brand
Transfer Elatech Belt
Photoelectric switch Omron Japan
Motion tween function 3 axis
Input power Full voltage AC110V ~ 22
External control interface RS232







MT-5X331R 5 AXIS AUTOMATIC SOLDERING MACHINE EQUIPMENT STRUCTURE ANALYSIS
