Place of Origin:
China
Brand Name:
INFINITE™
Model Number:
MT-PSC08

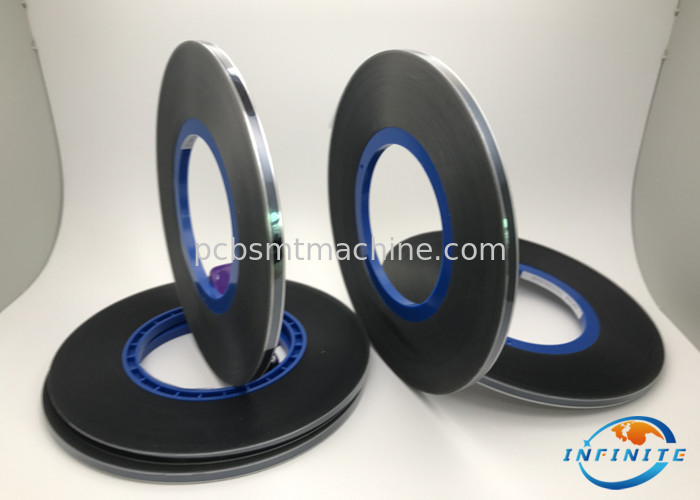

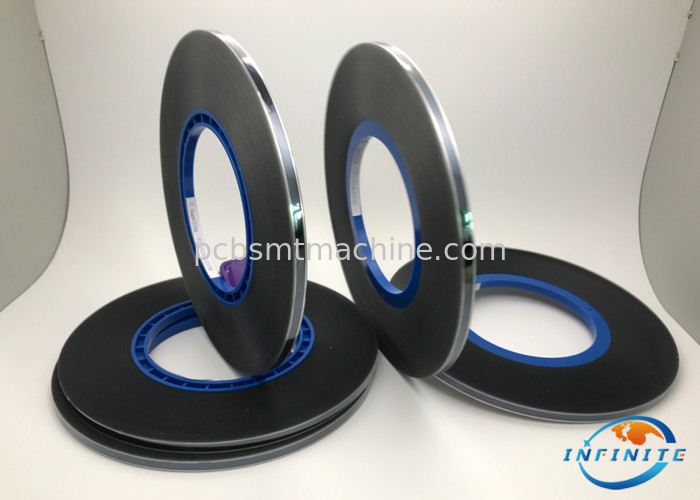

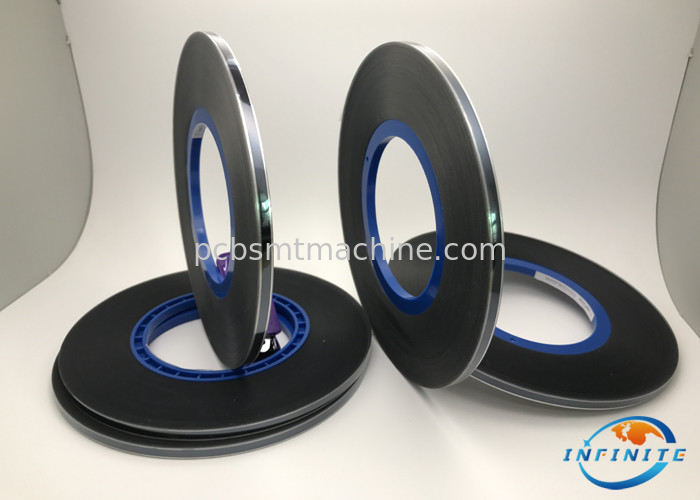

8mm ESD Pressure Sensitive Cover Tape for SMD Reel Component Carrier Tape | China Manufacturer
High-quality Anti Static Pressure Cover Tape for SMT Material Preparation
Buy durable and reliable ESD Pressure Sensitive Cover Tape only here at Infinite Automation. Infinite Automation manufactures ESD Pressure Sensitive Cover Tapes that can be used in SMD material preparation. Our ESD Pressure Sensitive Cover Tapes are made of high-quality anti-static PET materials and used special acrylic glue. Our ESD Pressure Sensitive Cover Tapes are available in a variety of sizes to fit all SMD plastic component carrier tapes.
| PRESSURE-SENSITIVE COVER TAPE PRICE LIST | ||||||
| Part Number |
Carrier tape Specifications (mm) |
Self-adhesive Tape (mm) |
Conventional Glue Width (mm) |
Tape Length (M) |
PACKAGING | |
| Quantity per box (roll) |
Weight per box (kg) |
|||||
| MT-PSC08 | 8mm | 5.4 | 0.9 | 200 | 40 | 3.52 |
| MT-PSC12 | 12mm | 7.5 | 1.0 | 30 | 3.90 | |
| MT-PSC12-1 | 12mm | 9.3 | 1.1 | 23 | 3.45 | |
| MT-PSC16 | 16mm | 13.3 | 1.2 | 16 | 3.52 | |
| MT-PSC24 | 24mm | 21.3 | 1.5 | 10 | 3.60 | |
| MT-PSC32 | 32mm | 25.5 | 1.5 | 8 | 3.36 | |
| MT-PSC44 | 44mm | 37.5 | 1.5 | 6 | 3.84 | |
| MT-PSC56 | 56mm | 49.5 | 1.5 | 4 | 3.36 | |
| MT-PSC72 | 72mm | 65.5 | 2.0 | 3 | 3.39 | |
| MT-PSC88 | 88mm | 81.5 | 2.0 | 2 | 3.00 | |
| MT-PSC104 | 104mm | 97.5 | 2.0 | 2 | 3.40 | |
