Product Details:
|
| Brand: | INFITEK | Description: | Yamaha YG Series Automatic Label Feeder |
|---|---|---|---|
| Application: | Label Feeder Applicable For Yamaha SMT Mounters | Price: | Negotiable |
| Packaging: | Carton | MOQ: | 1 Pc. |
| Lead Time: | 3 To 5 Days | Payment Terms: | Payment In Advance |
| High Light: | Infinite Automation SMT Feeders,Yamaha YG Series Automatic Label Feeder,Yamaha YG Series SMT Feeders |
||

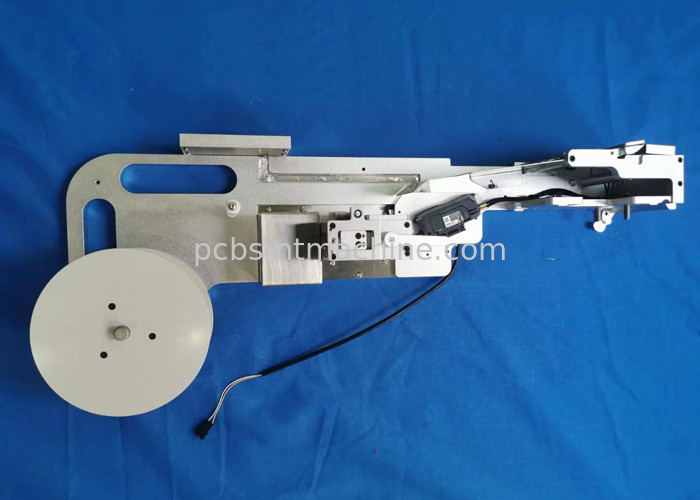

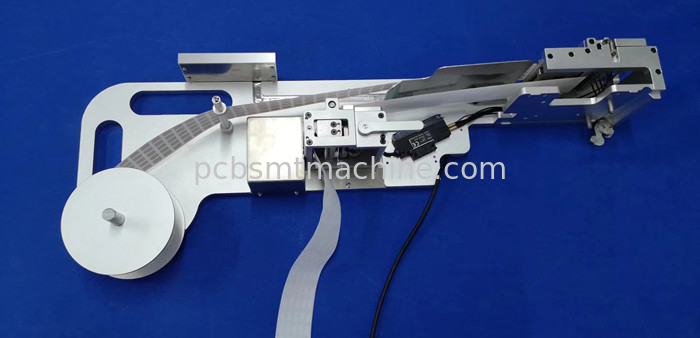

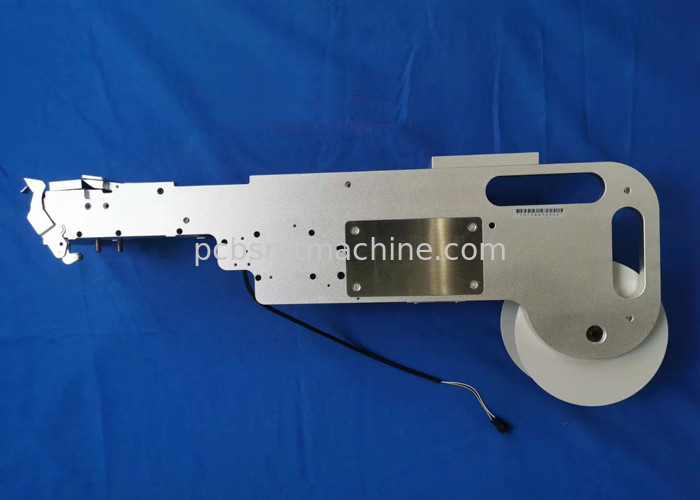

Yamaha YG Series Automatic Label Feeder - Infinite Automation SMT Feeders
INFITEK Yamaha YG Series label feeder makes the labeling process more flexible and precise and provides a more intelligent solution. This label feeder can use the factory's existing placement machine to automatically label, reducing labor costs and reducing repeated investment in equipment. Helps eliminate the error rate of manual labeling and improve the accuracy of labeling. The advanced modular structure design concept allows you to operate easily, simply, and conveniently. It is not only suitable for labels but also can be equipped with various types of adhesives, auxiliary materials, stickers, etc.
Various label feeders can also be customized according to customer requirements, and compatible with existing placement equipment.
Such as Yamaha; Samsung; Siemens X, D series; Panasonic; Fuji XP, NXT, and other series equipment.
Our company's existing label feeder can meet the automatic labeling of various labels with carrier tape width: of 5-100 MM and label width of 3-98 MM.
Yamaha YG Series Automatic Label Feeder Specifications:
| Overall Dimensions | Length | 630.6 mm |
| Width | 100.8 mm | |
| Height | 234.9 mm | |
| Material Quality | aluminum alloy | |
| Fixed Mode | One pin hook | |
| Voltage | DC 24V | |
| Average Current | 0.5A | |
| Peak Current | 2A | |
| Software Control | Customized based on FUDASMT | |
| Driving Mode | stepper motor | |
| Feeding Speed | ≥70ms/4mm | |
| Gear Speed | 12 steps adjustable | |
| Feeding Precision | ±0.15mm | |
| Min Step Angle | 1.8°±5% | |
| Applicable Packing Width | 5-68mm SMT package | |
| Drive Roller Unit | Lower stripping agent | |
| Refueling Methods | Non-stop refueling | |
| Drop Impact Test | Body 0.8kg/cm 2 no difference | |
| Aging Test | 1000 hours of continuous work without | |
| Work Record | completely consistent | |
| Service Life | 3-8 years | |
| Hang Mode | Standard position rear | |
