INFITEK M-330-AH The Best PCB Cutting Machine for Extra Wide Boards

INFITEK M-330-AH Depaneling Machine for Extra Wide PCB

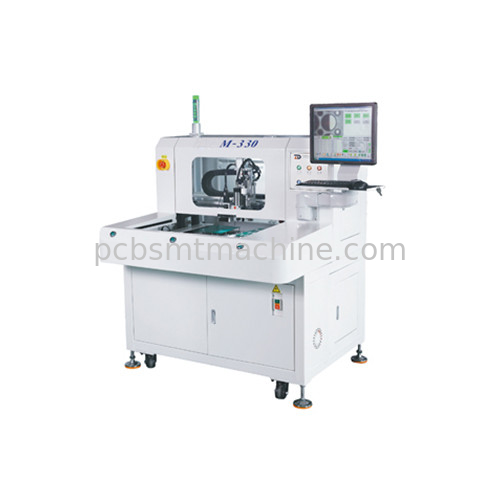

INFITEK M-330-AH is a PCB Router Machine deisgned for extra wide PCB. M-330-AH, is designed for precision PCB depaneling. This machine ensures precise PCB depaneling while minimizing stress on components. Its efficient design and safety features make it a valuable asset in electronics manufacturing.

Workbench and Movement System:

Double Fixture Type: The machine accommodates two PCBs simultaneously.

Positioning: Boards can be positioned using holes or board edges.

Manual Entry/Exit: You manually load and unload PCBs.

Cutting Range: It can handle PCBs up to 500 x 550mm.

Plate Thickness: Suitable for 0.3 - 3.0mm thick boards.

Cutting Functions: Straight lines, L shapes, circles, arcs, and more.

Spindle Motor:

Power: 350 watts from a Japan NSK motor.

Speed: Up to 60000rpm.

Cooling: Air-cooled.

Tool Shank Size: 3.175mm.

Tool Change: Manual.

Dust Collection System:

Power: Lower suction (3-5HP) and upper suction (3-5HP) high-pressure blower.

Exhaust Air Volume: 3-4 cubic meters per minute.

Static Pressure: Minus 2300mmAq.

Electrical Supply:

Host: 220 volts, single phase, 10 amps, 50/60 Hz.

Dust Collector: 380 volts, 3 phases, 5 amps.

Air Source: Consumption of 4-6 liters per minute.

Operating System:

Spindle Speed: Adjustable from 3000 to 60000 rpm via a frequency converter.

Cutting Performance: Non-cutting speed at 1000 mm per second, cutting speed up to 1-100 mm per second, and repeatability of < 0.02 mm for straight lines, curves, and arcs.

Maintenance: Ceramic spindle bearings, tool change based on PCB material, and safety features like Z-axis stop and door detection.
