Place of Origin:
China
Brand Name:
Mactech
Model Number:
EE-SX670A

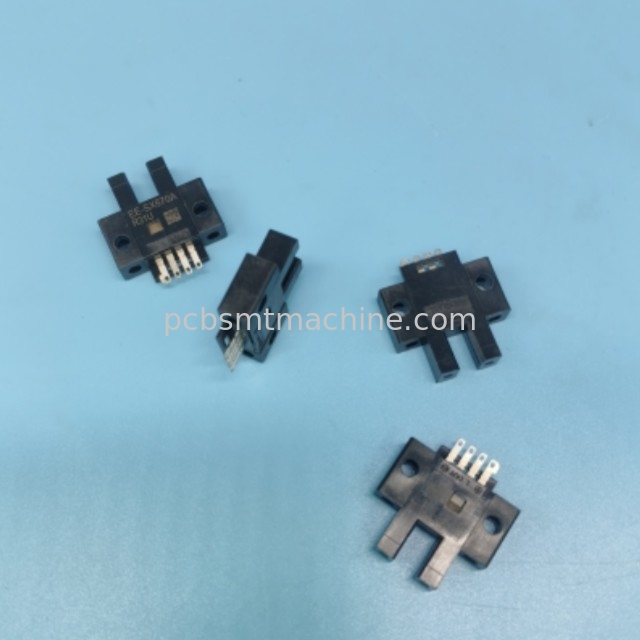

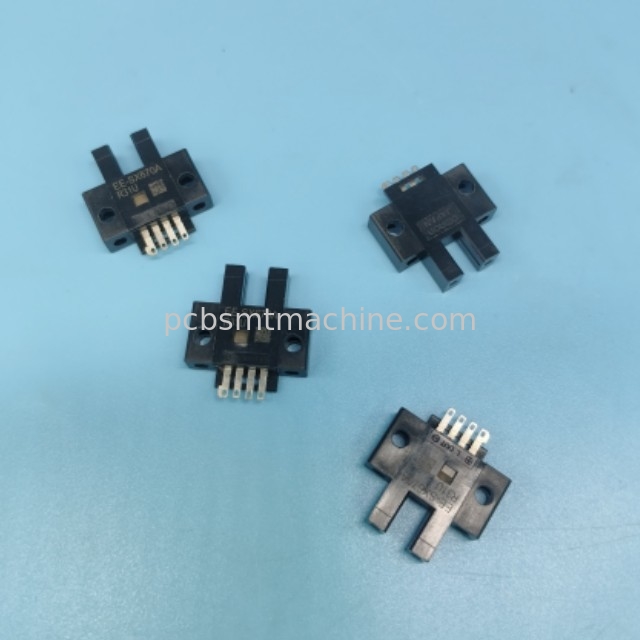

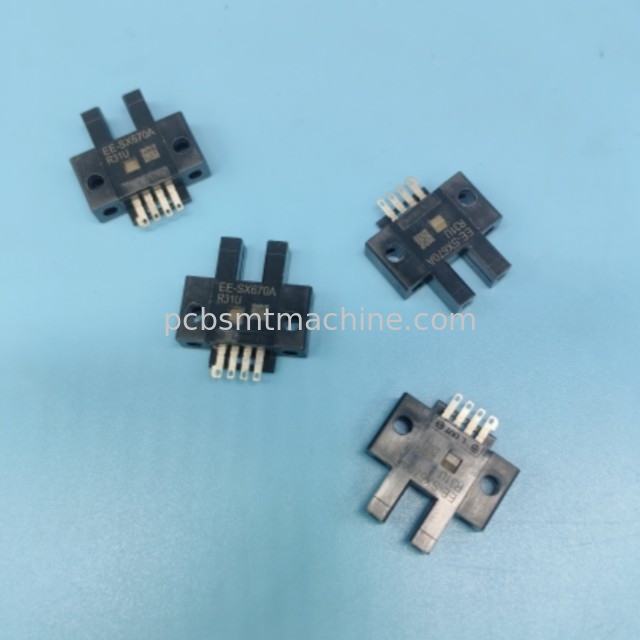

Discover the ideal photoelectric sensor for your industrial needs with our advanced model. This standard through-beam sensor features a precise 5 mm slot width and utilizes a non-modulated infrared LED (940 nm) for reliable performance. Capable of detecting opaque objects as small as 2 x 0.8 mm, it offers flexible operation modes—Dark-ON or Light-ON. With an NPN open collector output and a broad power supply range of 5 to 24 VDC, this sensor is versatile and easy to integrate into your systems. Boasting a high response frequency of up to 1 kHz and a maximum load current of 100 mA, it ensures dependable operation in challenging conditions. Designed for robustness, it operates within a temperature range of -25°C to 55°C and features an IP50 rating for protection against dust and debris. Upgrade your automation with this reliable, high-performance photoelectric sensor, engineered for excellence in various industrial environments.
| Type | Grooved Type (Standard) |
|---|---|
| Luminous Method | Non-Modulated |
| Sensing Method | Through-Beam Type |
| Sensing Distance | Slot Width: 5 mm |
| Control Output (Type) | NPN Open Collector Output |
| Operation Mode | Dark-ON / Light-ON (Selectable) |
| Connection Method | Connector Type |
