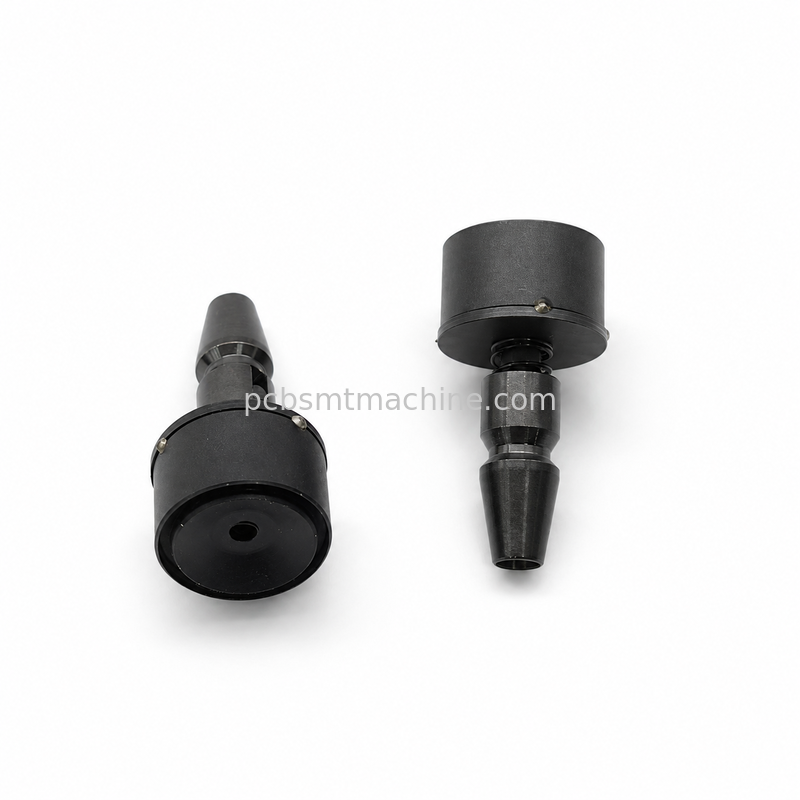

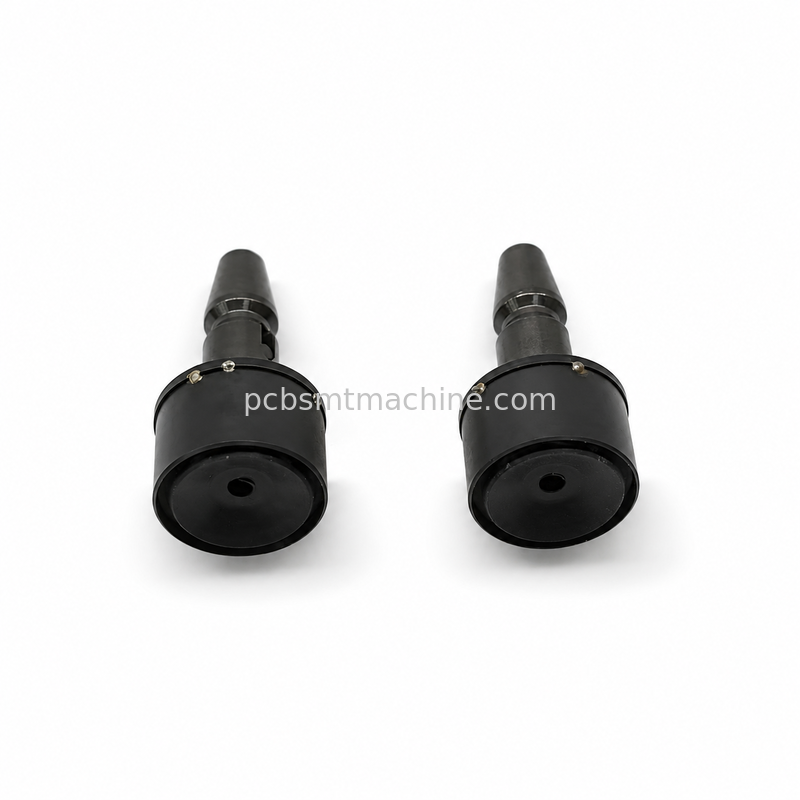

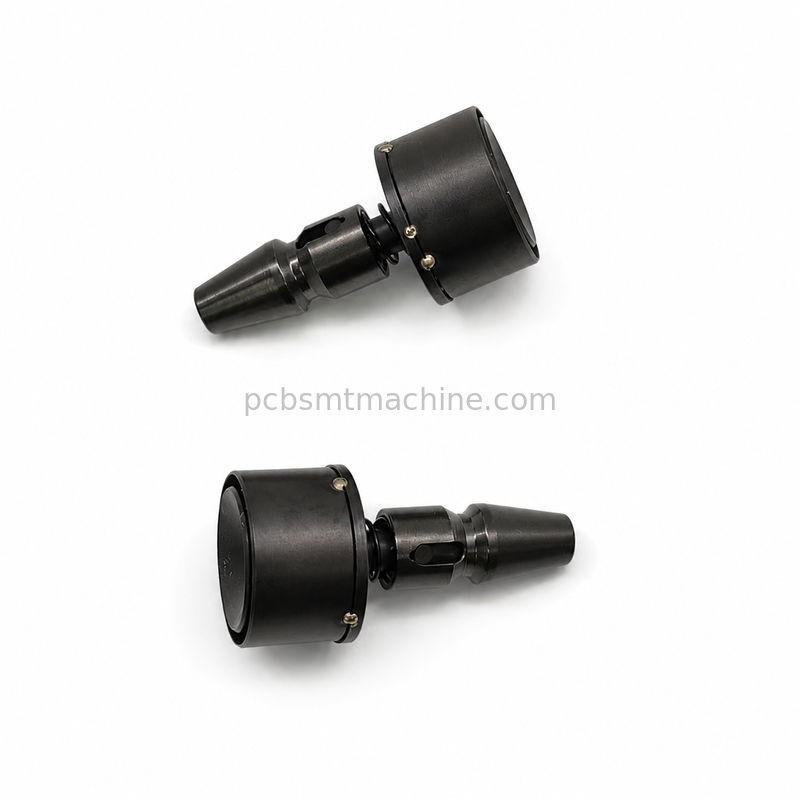

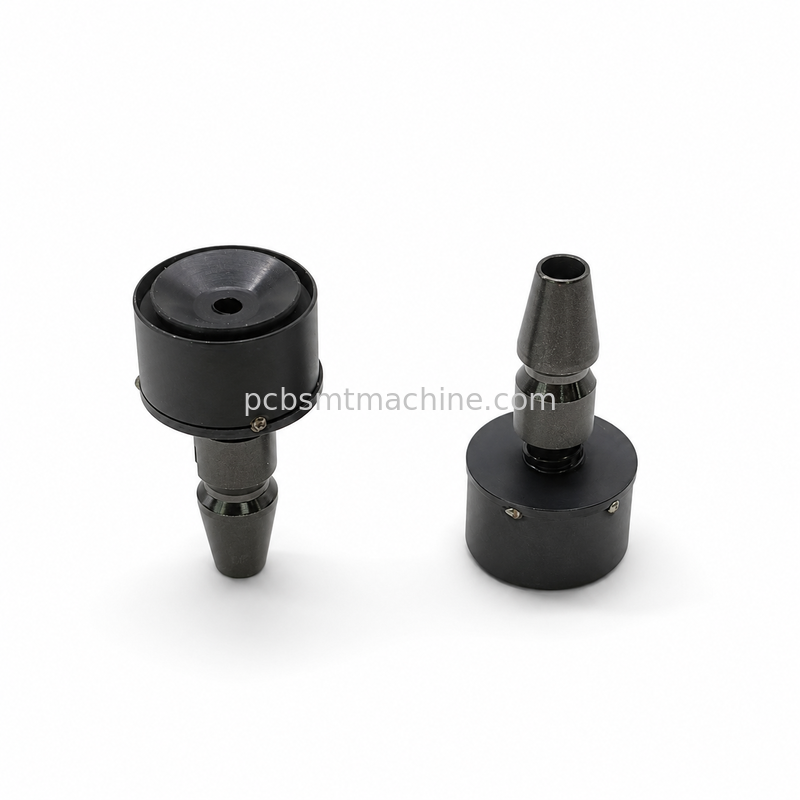

Special CAP Nozzle | SMD Capacitor Pick Up Vacuum Tip for SMT Pick and Place Machine

1.Product Description
Our special CAP nozzles are dedicated vacuum tips for SMD capacitor pickup on mainstream pick-and-place machines. Suitable for standard and odd-form chip caps ranging from 01005 to 1206, these serve as direct replacement CAP nozzle for Panasonic, JUKI, Yamaha and Samsung equipment.
With full ESD treatment, our custom cap nozzle avoids static damage to fragile capacitors. We also craft tailor-made odd-form CAP Nozzle per customer drawings to meet personalized assembly demands of global EMS factories.
2.Product Specification

3.Product Features
Optimized cavity of CAP pick up nozzle fits chip cap outline for stable vacuum pickup and less component dropping.
Hard raw materials improve wear resistance and extend service life of vacuum nozzle.
ESD protection prevents capacitor breakdown, fit for precision PCB assembly lines.
Standard interface for plug-and-play, easy to swap as replacement CAP nozzle.
Support custom cap nozzle development for irregular odd-form CAP.
Every placement tip passes suction test before delivery for stable mass production.
4.FAQ
Q1:What machines fit your CAP pick up nozzle?
A:Compatible with Panasonic, JUKI, Yamaha, Samsung mounters; custom tip available for other models.
Q2:Can you produce odd-form CAP Nozzle?
A:Yes, custom based on your capacitor samples or technical drawings.
Q3:What is the service life of chip cap vacuum tip?
A:Ceramic over 10 million cycles; carbide up to 15–20 million cycles.
Q4:Are standard replacement CAP nozzle in stock?
A:Regular sizes for 0402/0603/0805 CAP have ready stock for fast delivery.
Q5:Can I get samples before bulk order?
A:Samples available for standard and custom cap nozzle for on-site testing.
