Name: CSD3 Plus Servo Drive XY Axis Controller with Plug-and-Play for Precise Stencil Alignment AC 200~240V Single Phase
Brand: INFINITE AUTOMATION CO ., LIMITED
SKU: EP06-901158
Price: 250.00 USD
Availability: InStock

Home > Products > SMT Spare Parts >

CSD3 Plus Servo Drive XY Axis Controller with Plug-and-Play for Precise Stencil Alignment AC 200~240V Single Phase

Place of Origin:

South Korea

Brand Name:

Hanwha

Certification:

Model Number:

EP06-901158

Request A Quote

CSD3 Plus Servo Drive XY Axis Controller with Plug-and-Play for Precise Stencil Alignment AC 200~240V Single Phase

Product Details

Payment & Shipping Terms

Minimum Order Quantity

Price

1-500USD

Packaging Details

Carton box

Delivery Time

3-5 working days

Payment Terms

L/C,D/A,D/P,T/T,Western Union

CSD3 Plus Servo Drive XY Axis Controller with Plug-and-Play for Precise Stencil Alignment AC 200~240V Single Phase

Get Best Price

MTKA042704AA Guide R | Panasonic NPM Feeder Right Guide SMT Spare Part

Get Best Price

X02P1201501 Feeder Drive Rod Shaft | SMT Spare Parts for JUKI NF Series Tape Feeder

Get Best Price

X02P30006 Lever | Mechanical Transmission Lever for Panasonic AVK/RH Series AI Insertion Machine

Get Best Price

(86)-13823274872

rosy@pcbsmtmachine.com

86-755-23115005

Contact Now

Product Description

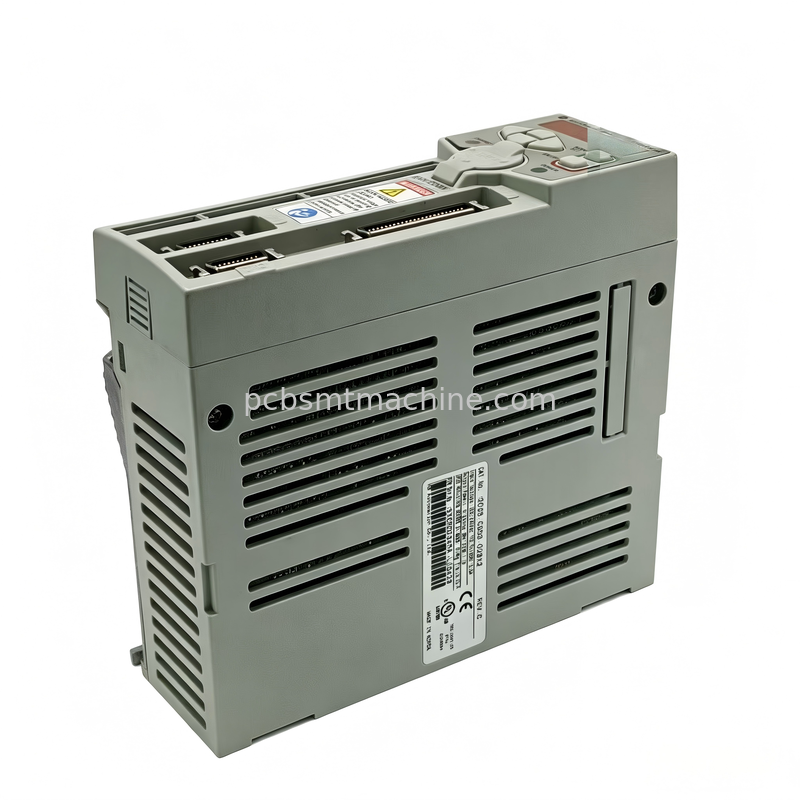

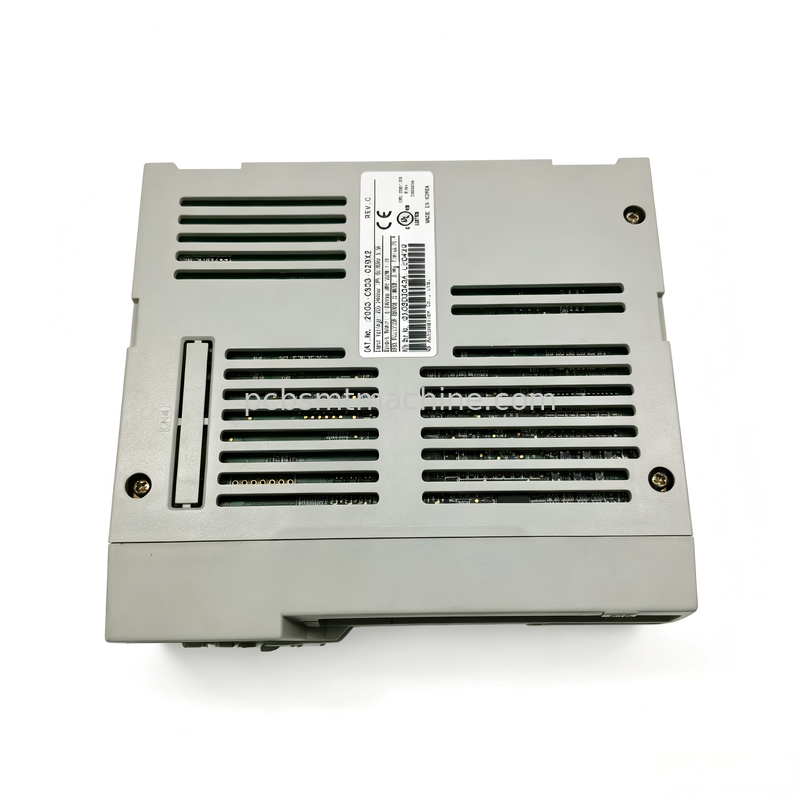

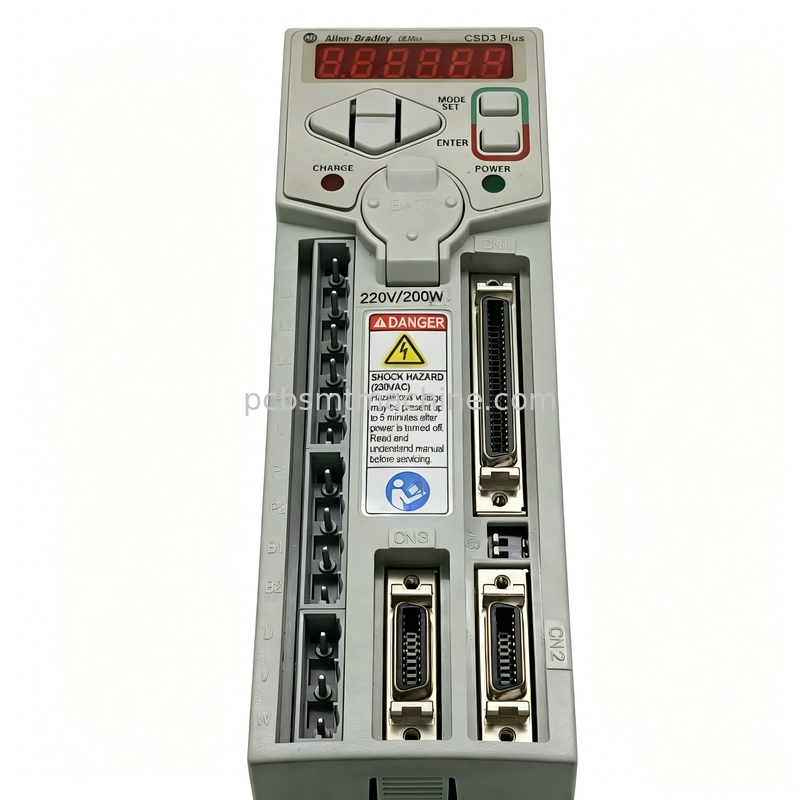

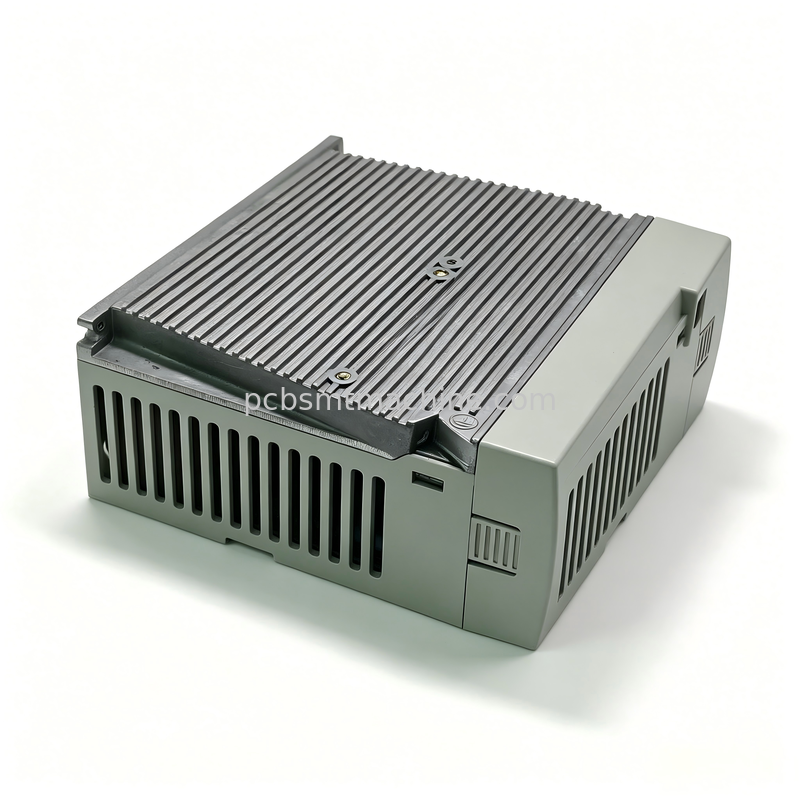

CSD3 Plus Servo Drive EP06-901158

The CSD3 Plus servo drive with part number EP06-901158 is an exclusive XY axis controller for Hanwha Samsung SP400 and SP450 SMT stencil printers. It controls XY-axis movement to ensure precise stencil alignment. A faulty unit will lead to axis jamming, servo alarms and printing offset. We supply brand-new and fully tested refurbished servo drives. It supports plug-and-play without program modification.

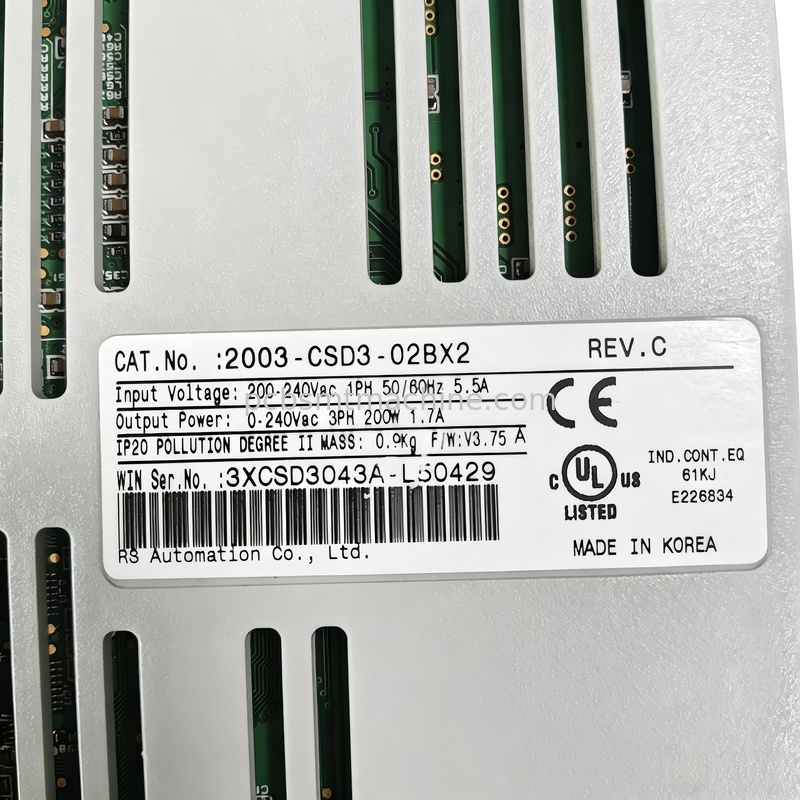

Specifications

Item	Specification
Part Number	EP06-901158
Model	CSD3 Plus (CSD3+)
Product Type	Servo Drive
Applicable Machine	Hanwha SP400, SP450 SMT Printer
Controlled Axis	XY Axis
Input Voltage	AC 200~240V Single Phase
Rated Power	100W
Max Pulse Frequency	200kpps
Working Temperature	-20℃ ~ 50℃
Product Condition	New / Refurbished & Tested

Product Features

High positioning accuracy for steady XY axis operation without printing deviation
Fully compatible with Samsung SP printers for direct replacement
Multiple protections against overvoltage, overcurrent and overheating to extend service life
All refurbished units pass strict power-on tests to maintain low failure rates
Anti-interference structure, ideal for long-hour continuous SMT production
Ready in stock with fast delivery to Europe and North America

Frequently Asked Questions

Q1: Does EP06-901158 correspond to CSD3 Plus?

A1: Yes. EP06-901158 is the part number, and CSD3 Plus is the model name for the same controller.

Q2: What machines is this servo drive compatible with?

A2: It only fits Hanwha SP400 and SP450 SMT stencil printers.

Q3: Is parameter adjustment required after installation?

A3: No parameter setting or programming required. It works immediately after installation.

Q4: What tests will be done on refurbished servo drives?

A4: Power test, signal test and motion simulation before shipment.

Q5: What is the difference between new and refurbished products?

A5: Performance remains the same. Refurbished units are more cost-effective for equipment maintenance.

Q6: Can we get a wholesale price for bulk orders?

A6: We offer discounts for large orders. Consolidated shipment can reduce international shipping costs.
