Name: Panasonic M8GB3B22 Geared Motor with 3:1 Parallel Shaft and 25W Rated Power for Plug-and-Play Installation in Nachime SMT Printers
Brand: INFINITE AUTOMATION CO ., LIMITED
SKU: M8GB3B22+308380600102
Price: 250.00 USD
Availability: InStock

Home > Products > SMT Spare Parts >

Panasonic M8GB3B22 Geared Motor with 3:1 Parallel Shaft and 25W Rated Power for Plug-and-Play Installation in Nachime SMT Printers

Place of Origin:

China

Brand Name:

OEM

Certification:

Model Number:

M8GB3B22+308380600102

Request A Quote

Panasonic M8GB3B22 Geared Motor with 3:1 Parallel Shaft and 25W Rated Power for Plug-and-Play Installation in Nachime SMT Printers

Product Details

Payment & Shipping Terms

Minimum Order Quantity

Price

1-500USD

Packaging Details

Carton box

Delivery Time

3-5 working days

Payment Terms

L/C,D/A,D/P,T/T,Western Union

Yamaha YSM20WR RM Head SMT Pick And Place Nozzle 8103A~8110R 8004H~8012H OEM KMX-M77XX-A0 High Precision Mounter Spare Parts For YSM10 YSM20 YSM40R

Get Best Price

OMRON E6C2-CWZ6C 360P/R NPN ABZ Rotary Encoder with IP64 Dust and Oil Resistance for SMT Equipment

Get Best Price

Hardened Stainless Steel Locating Pin with Micron-Level Precision and ESD Anti-Static for Panasonic SPG Printers

Get Best Price

Keyence FS-V31 Digital Fiber Optic Amplifier | 33μs High-Speed NPN Industrial Fiber Sensor for SMT PCB Assembly

Get Best Price

(86)-13823274872

rosy@pcbsmtmachine.com

86-755-23115005

Contact Now

Product Description

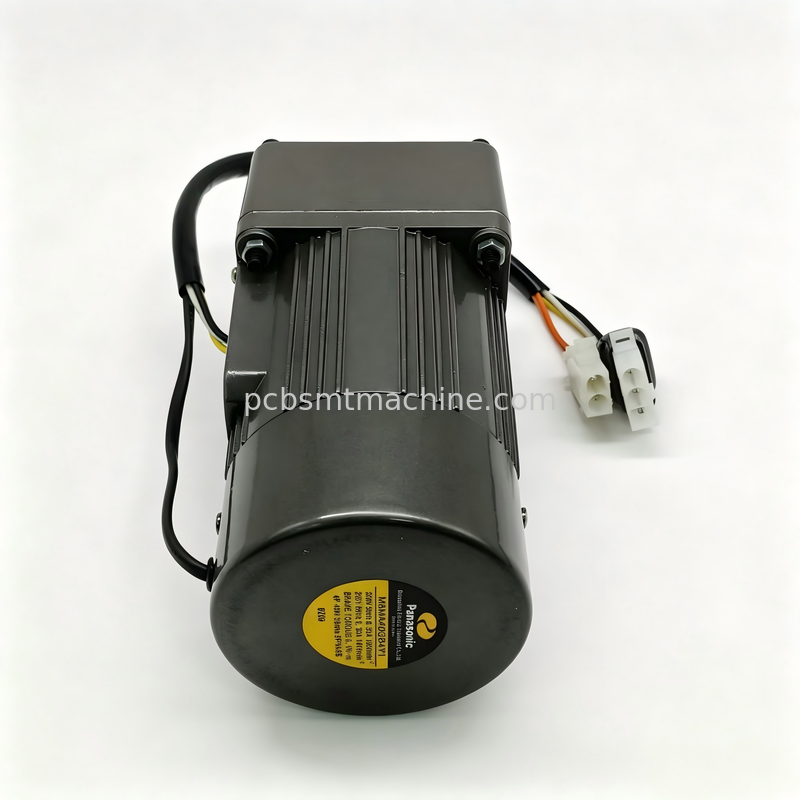

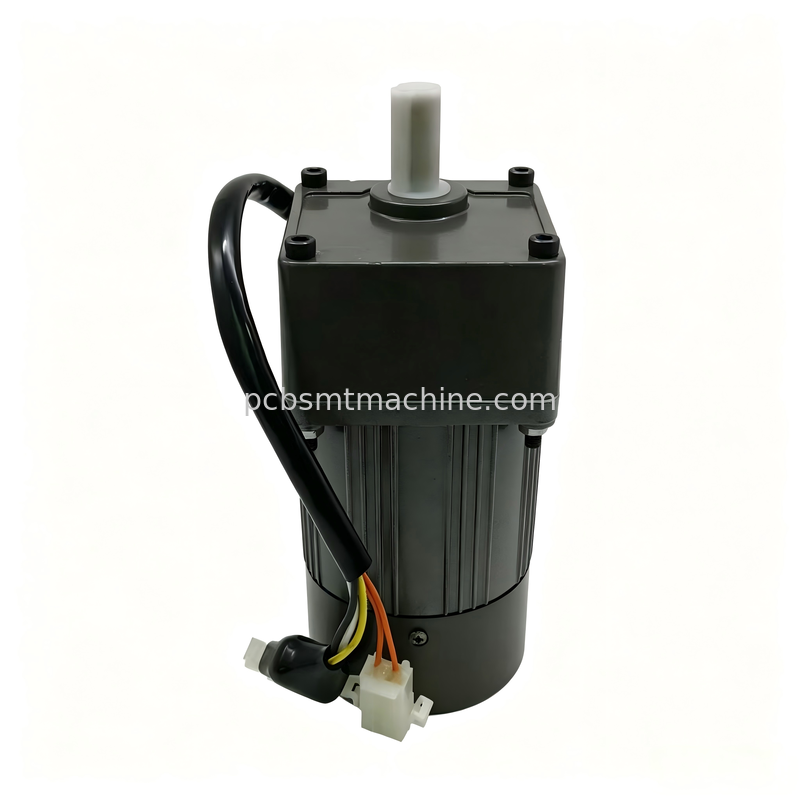

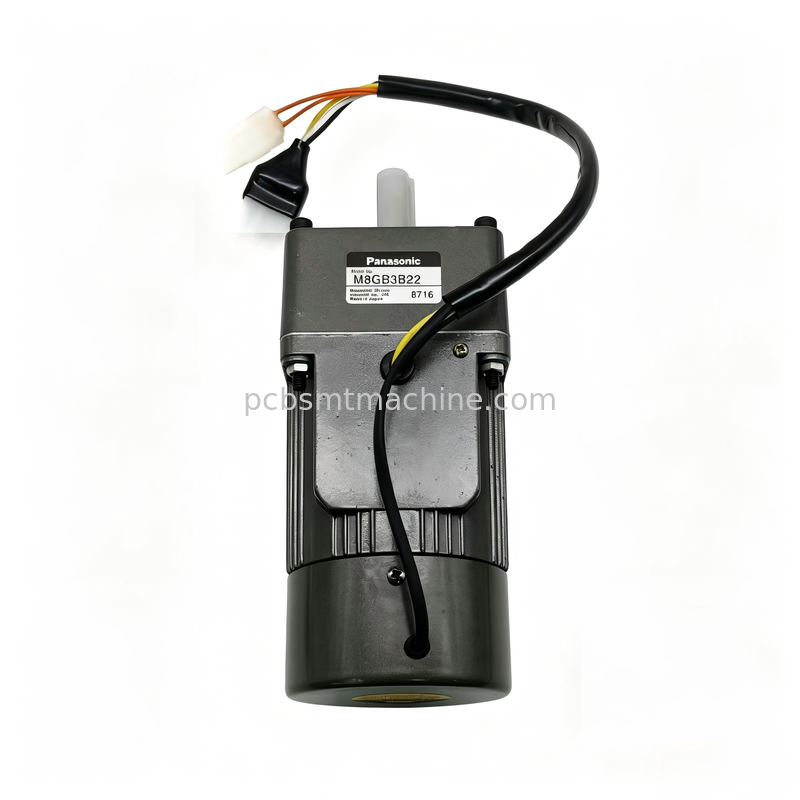

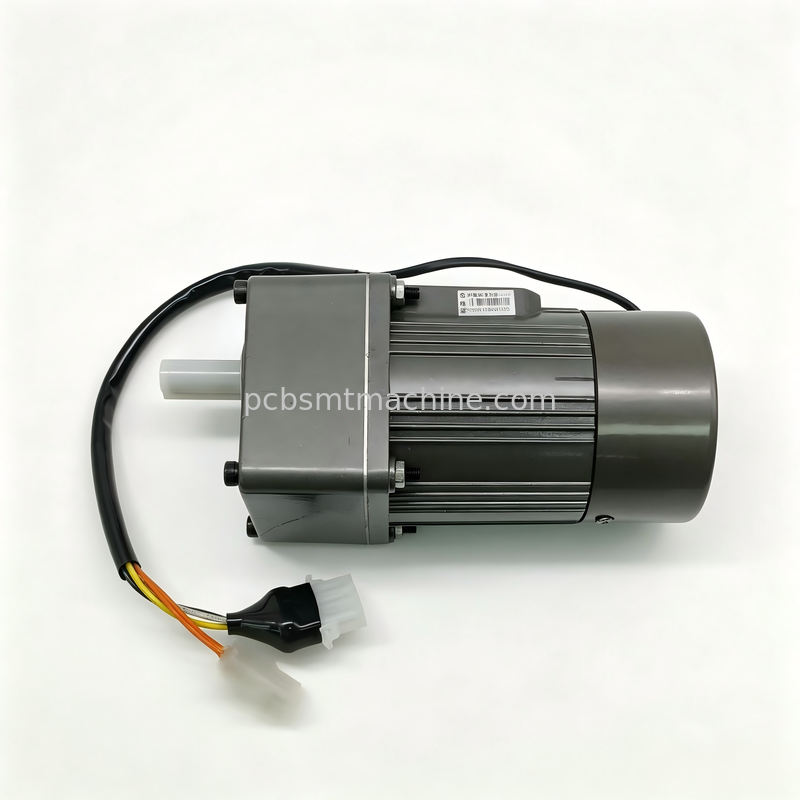

Panasonic M8GB3B22 Gear Head + Motor 308380600102 | Replacement Geared Motor For Nachime SMT Printer

Product Description

This Panasonic M8GB3B22 gear head + motor assembly with part code 308380600102 is a dedicated transmission spare part compatible with Nachime SMT solder paste printers.

Equipped with factory-matched wiring harness and dual plugs, it adopts a 3:1 parallel shaft reduction structure to deliver stable torque, fixing printing offset and stalling issues on PCB production lines.

1:1 dimensionally consistent with original parts for plug-and-play installation without modification. We maintain sufficient stock to supply electronics factories and SMT maintenance vendors across Europe and North America.

Product Specifications

Item	Specification
Full Assembly Model	M8GB3B22 Gear Head + Motor
OEM Part Number	308380600102
Gear Head Brand	Panasonic
Reduction Ratio	3:1 Parallel Shaft
Mount Flange	80×80mm Square
Output Shaft Diameter	10mm
Rated Power	25W
Compatible Equipment	Nachime SMT Stencil Printer
Wiring Accessory	Original Harness with Dual Connectors

Product Features

Fully compliant with original 308380600102 standards for direct replacement
Complete original wiring harness and dual plugs included, no rewiring required during installation
Precision spur gear design with low vibration to ensure stable PCB printing accuracy
Aluminum heat dissipation housing, supporting 24-hour non-stop workshop operation
Custom drive motor exclusively for Nachime solder paste printing machines
Full torque and running performance testing before shipment to reduce production downtime

Frequently Asked Questions

Which models of Nachime printers is this geared motor compatible with?

It fits all series of Nachime SMT solder paste stencil printers, serving as a universal drive component for squeegee, lifting and conveyor mechanisms.

What mechanisms does this geared motor drive on the printer?

It drives the squeegee movement, stencil lifting and PCB conveyor of Nachime SMT printers.

Can I buy the M8GB3B22 gear head alone?

Three purchasing options are available: separate gear head, single motor, or complete gear head + motor assembly.

How to confirm compatibility with my original part?

Check the part number 308380600102, or compare the flange, shaft and wiring structure with our real product photos.

What is the delivery lead time for orders to Europe and America?

Products are in stock and will be shipped within 1-3 working days, with DHL/UPS/FedEx door-to-door delivery available.
