Product Description

HANDI-VAC B3 ESD Vacuum Suction Pen Kit | SMT SMD IC Vacuum Handling Tool

Product Overview

HANDI-VAC B3 KIT-ESD anti-static vacuum pen follows Virtual Industries #4763 standard, providing a manual pickup tool for tiny electronic parts.

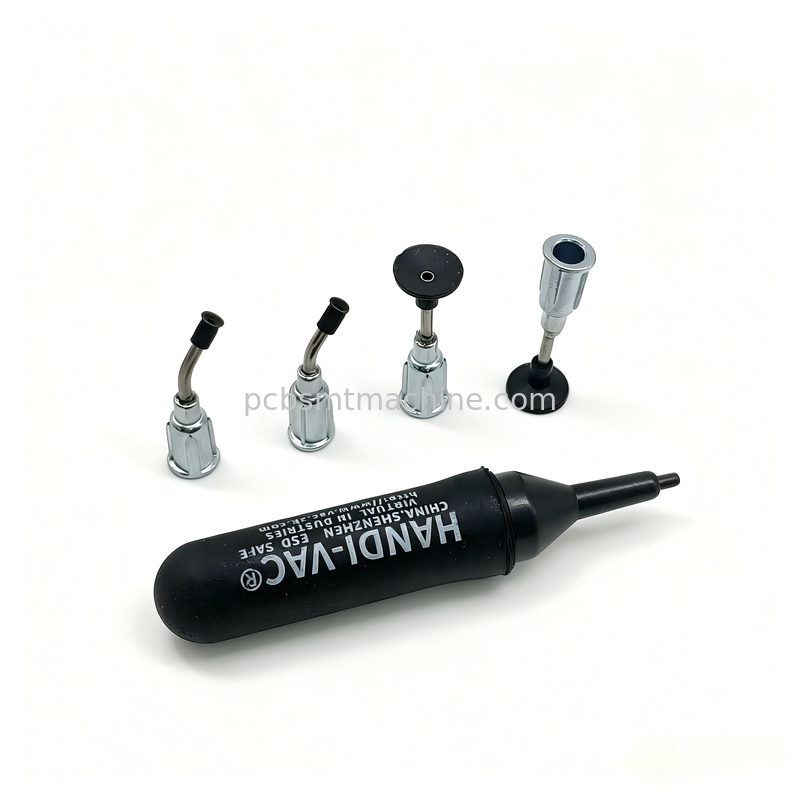

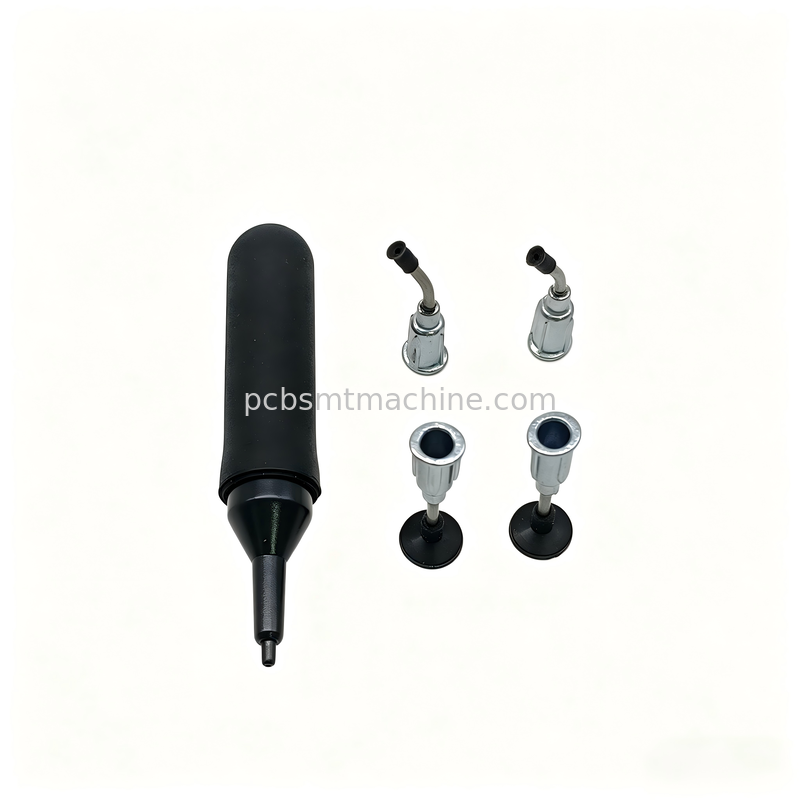

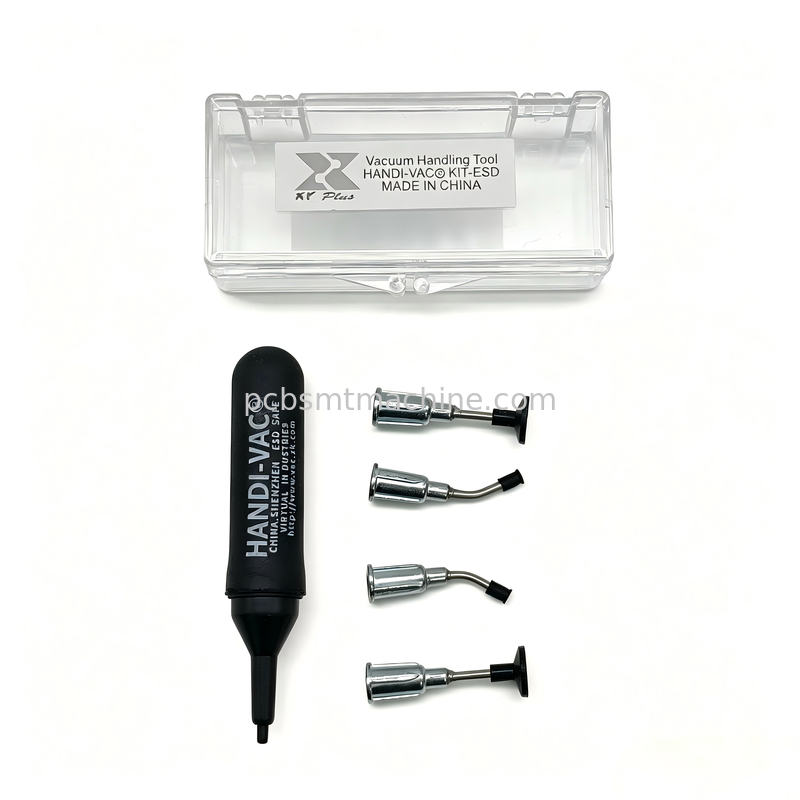

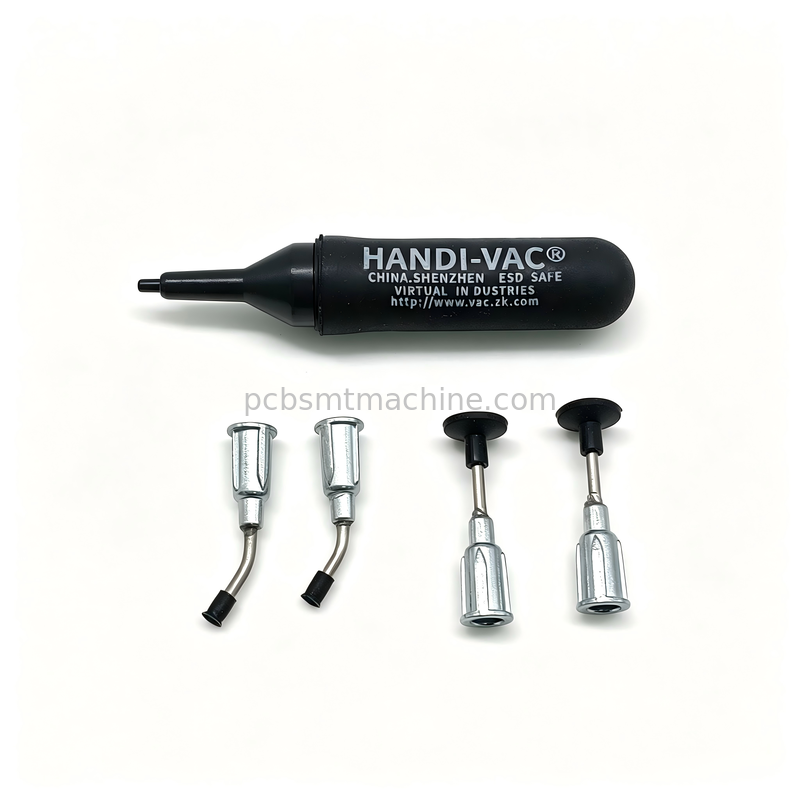

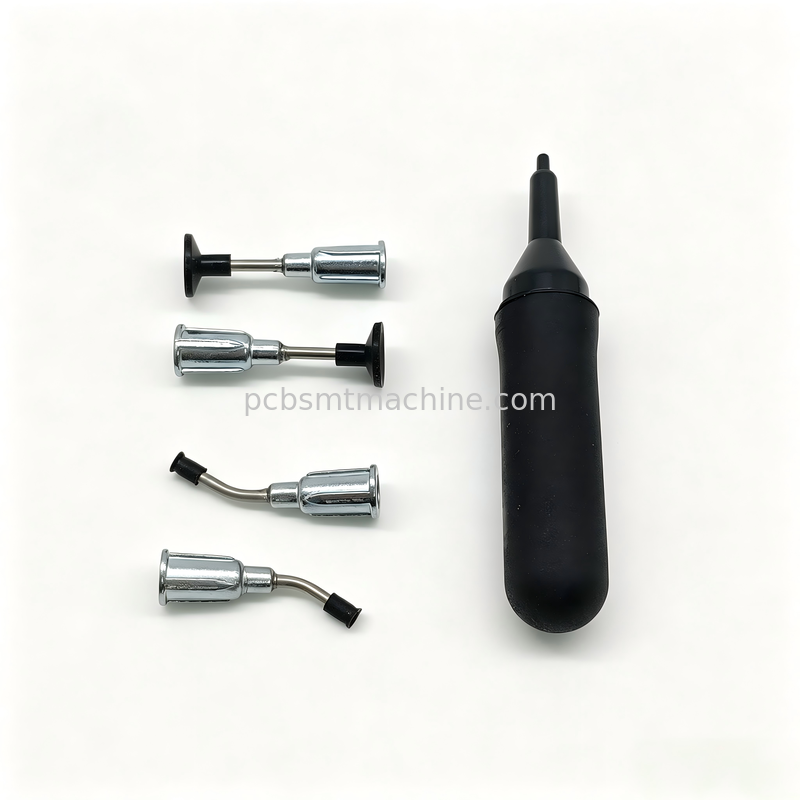

Package includes 1 ESD rubber vacuum bulb + 4 interchangeable metal suction nozzles (2 straight, 2 bent), stored in a transparent storage box. All parts are ESD conductive to prevent static damage to sensitive chips like BGA, IC, and 0201 resistors.

No battery or air pump needed - simply squeeze with one hand to create vacuum suction. Lightweight and portable for SMT production, PCB repair, and laboratory micro assembly work.

Technical Specifications

Item	Specification
Model	HANDI-VAC B3 KIT-ESD #4763
Anti-static Level	ESD Safe
Main Body	Conductive anti-static rubber bulb
Nozzle Accessory	2 straight tips + 2 bent tips, total 4pcs
Suction Cup Sizes	1/8", 1/4", 3/8" conductive silicone cups
Working Mode	Manual squeeze vacuum, power-free
Package	Clear plastic storage case
Application	SMD, BGA, IC, micro chips, optical lenses
Origin	Made in China

Key Features

Full ESD anti-static design protects sensitive electronic components from static breakdown
Straight & bent dual-style nozzles with multi-size cups fit flat boards and narrow gap operation
Manual power-free design requires no air compressor or battery, reducing operating costs
Soft conductive silicone suction cups are scratch-free and leave no residue on PCB and chips
Ergonomic anti-slip rubber bulb reduces fatigue during extended picking operations
Matching storage box provides easy organization and transport of all accessories
Widely used for SMT assembly, motherboard repair, and semiconductor laboratory work

Frequently Asked Questions

Q1: What parts can this vacuum pen absorb?

A1: Suitable for 0201/0402 chips, IC, BGA, QFN, LED, optical lenses and other miniature electronic components.

Q2: Is this tool anti-static?

A2: Yes, the whole set is ESD-safe conductive material and meets anti-static workshop standards.

Q3: What's the difference between straight and bent nozzles?

A3: Straight nozzles are ideal for flat PCB surfaces; bent nozzles can reach deep narrow gaps that are difficult to access with tweezers.

Q4: Does it need power or air supply?

A4: No, simply squeeze the rubber bulb manually to generate vacuum suction.

Q5: Compatible with Virtual Industries #4763?

A5: Fully matched in size and performance, can replace the original vacuum handling tool.

Q6: How to maintain the suction pen?

A6: Wipe suction cups to clear dust after use, store all tips in the box, and avoid long-term high temperature exposure.
