Product Description

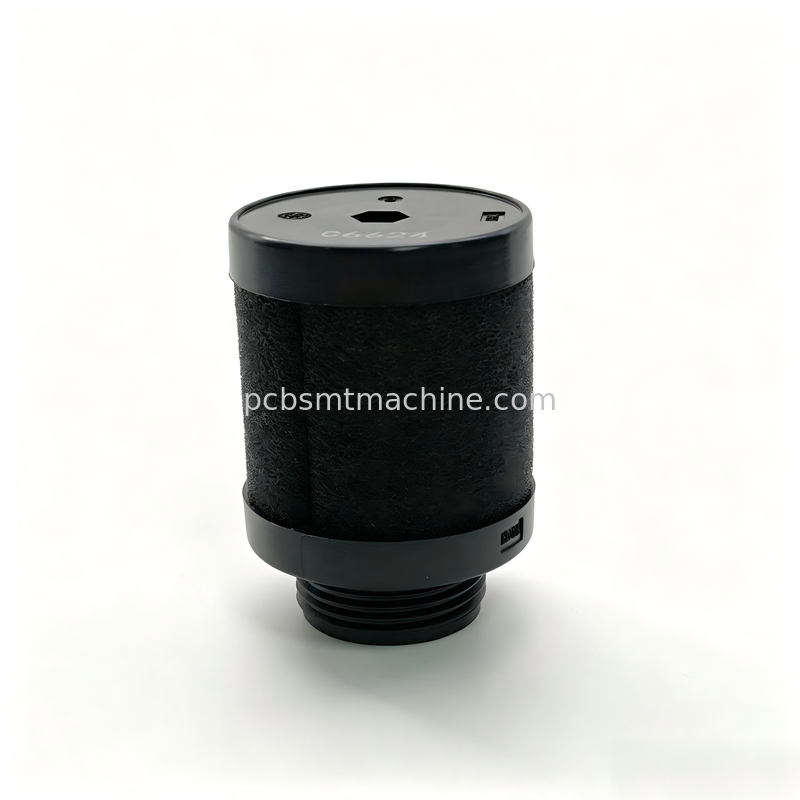

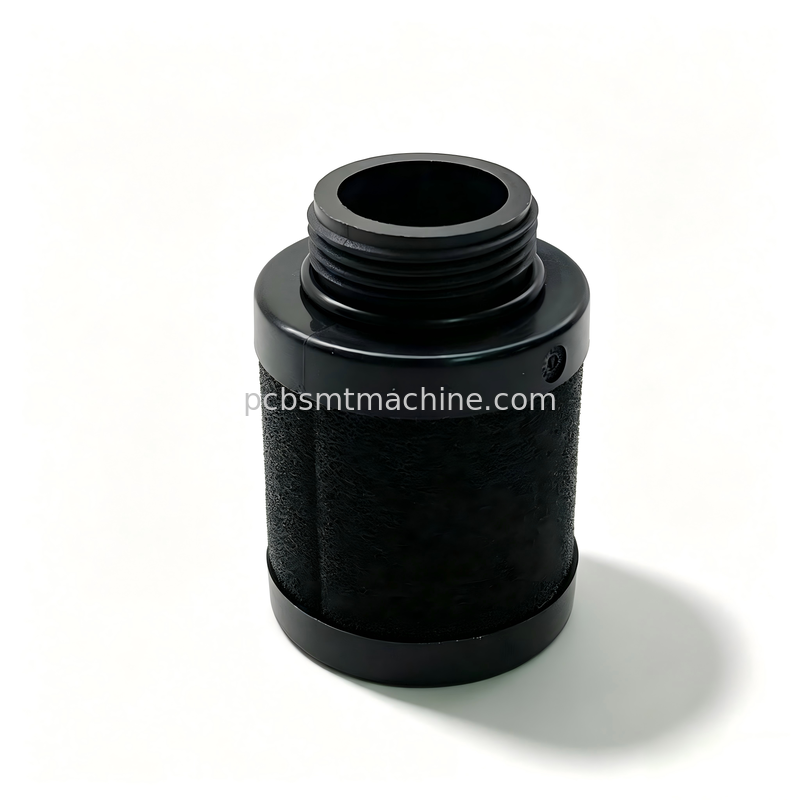

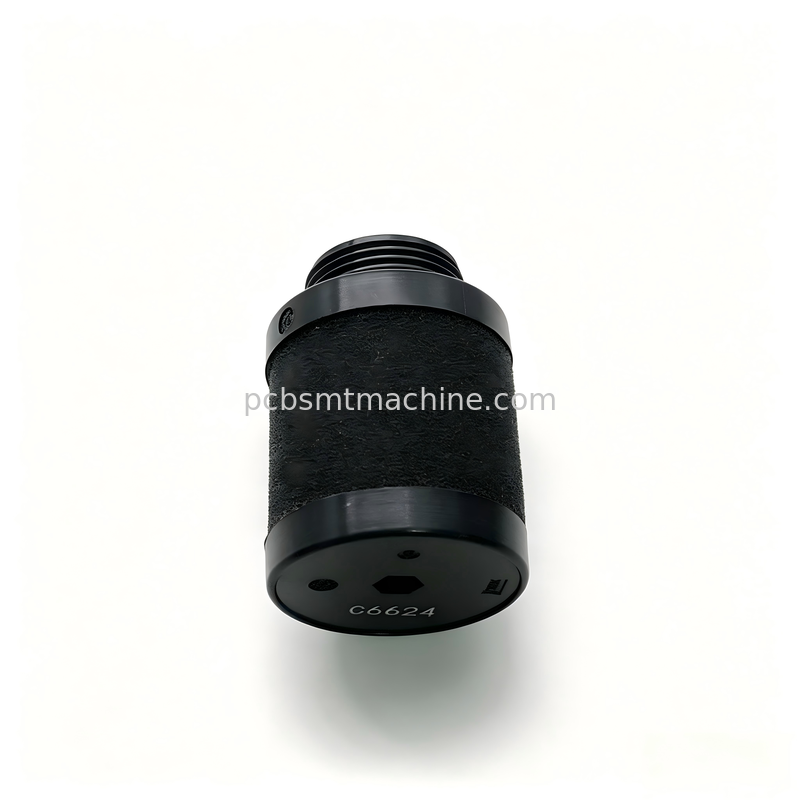

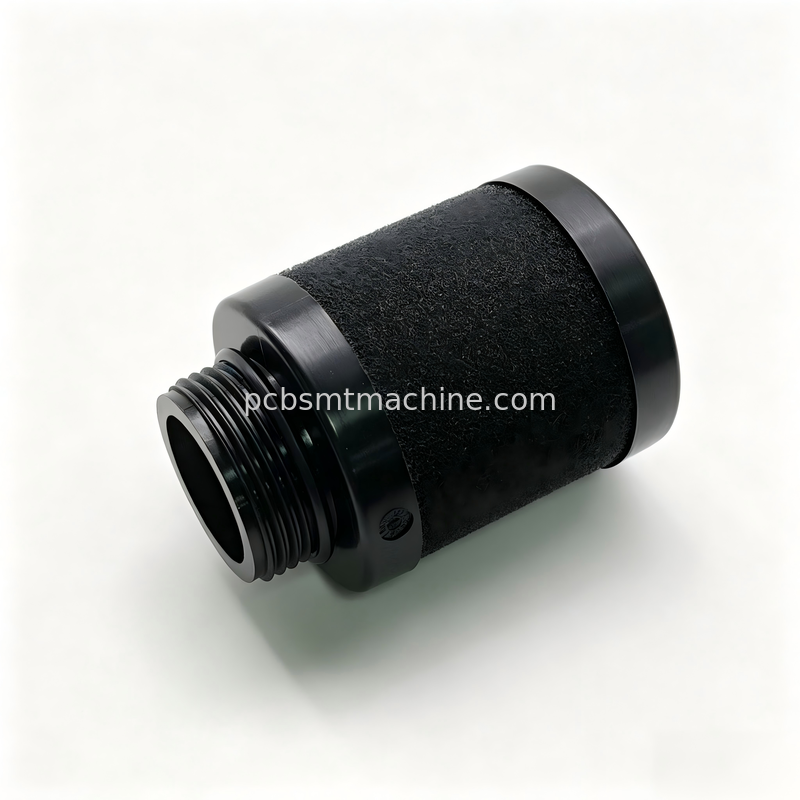

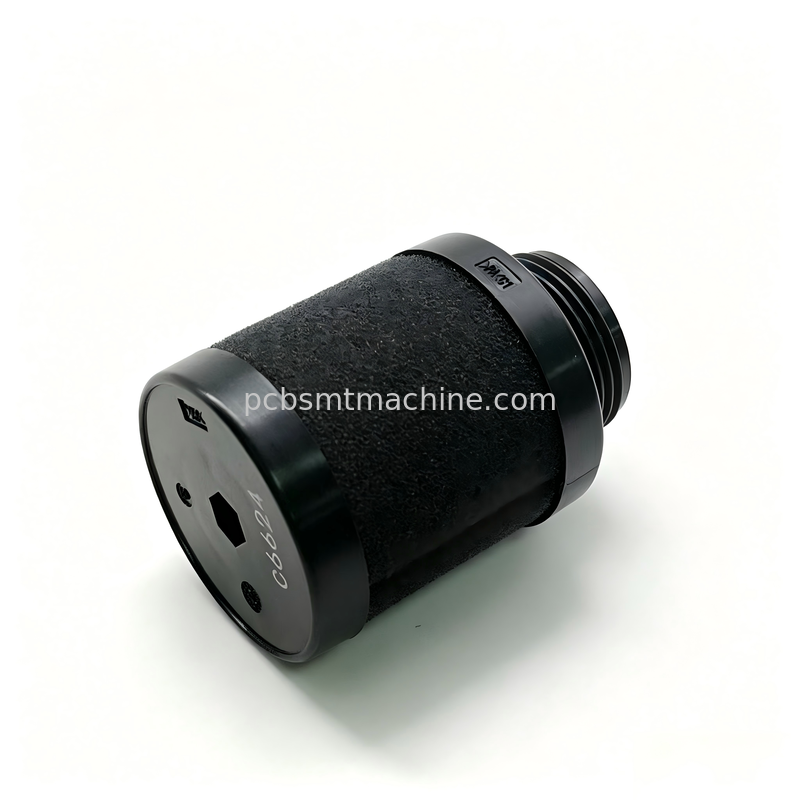

KHW-M8501-20X Blower Filter / MANTLE

Product Introduction

The KHW-M8501-20X is a filter-related spare part used in Yamaha SMT equipment. It is identified as MANTLE in Yamaha maintenance parts documentation and is also commonly supplied in the SMT spare-parts market as a Blower Filter.

The filter structure helps capture dust and fine particulate contaminants in the air/vacuum circuit, reducing contamination buildup and helping maintain stable airflow during equipment operation.

Regular inspection and replacement of contaminated filter components can help reduce airflow restriction and support reliable operation of the related air or vacuum system.

Product Specifications

Item	Specification
Main Part Number	KHW-M8501-20X
Product Name	Blower Filter / MANTLE
Application	Yamaha SMT Equipment
Confirmed Machine Series	Yamaha YG100R / YG88R
Product Type	SMT Air / Vacuum Circuit Filter Part
Structure	Cylindrical Filter Structure
Housing Material	Engineering Plastic
Filter Media	Foam Filter Material
Connection Type	External Thread
Installation Method	Threaded Installation
Maintenance	Inspect regularly and replace according to contamination condition
Product Category	SMT Spare Parts / Filter Parts
Product Status	Replacement Spare Part / In Stock

Product Features

Integrated Filter Structure

Supplied as the complete component shown in the product photos, allowing convenient installation and replacement during equipment maintenance.
Foam Filter Media

Helps capture dust and fine particulate contaminants while maintaining the airflow required by the equipment circuit.
Threaded Connection

Designed with an external threaded interface for secure installation in the corresponding equipment connection position.
Durable Engineering-Plastic Construction

The rigid plastic housing provides structural stability for regular use in SMT production environments.
Helps Maintain Air/Vacuum Circuit Performance

Regular replacement of contaminated filters helps reduce particle buildup and airflow restriction within the equipment system.
Easy Maintenance and Replacement

The compact filter structure is convenient for routine inspection, maintenance, and replacement.

Frequently Asked Questions

Q1: Which machines is this part used for?

KHW-M8501-20X is a Yamaha SMT equipment spare part. Yamaha maintenance parts documentation confirms its use within the YG100R / YG88R parts system.

Q2: Is this the same part as KHW-M8501-10X?

No. They are different Yamaha part numbers. KHW-M8501-10X is identified as ELEMENT, while KHW-M8501-20X is identified as MANTLE in Yamaha maintenance parts documentation.

Q3: How often should the filter be replaced?

There is no fixed universal replacement interval. The filter should be inspected regularly and replaced according to its contamination level, airflow condition, equipment operating hours, and maintenance requirements.

Q4: What happens if the filter becomes heavily contaminated or clogged?

Excessive contamination can increase airflow resistance and may affect the normal operation of the associated air or vacuum circuit. Regular inspection and timely replacement are recommended.

Q5: Is the product in stock, and do you support international shipping?

Yes. The product is currently available from stock, and international shipping is supported.
