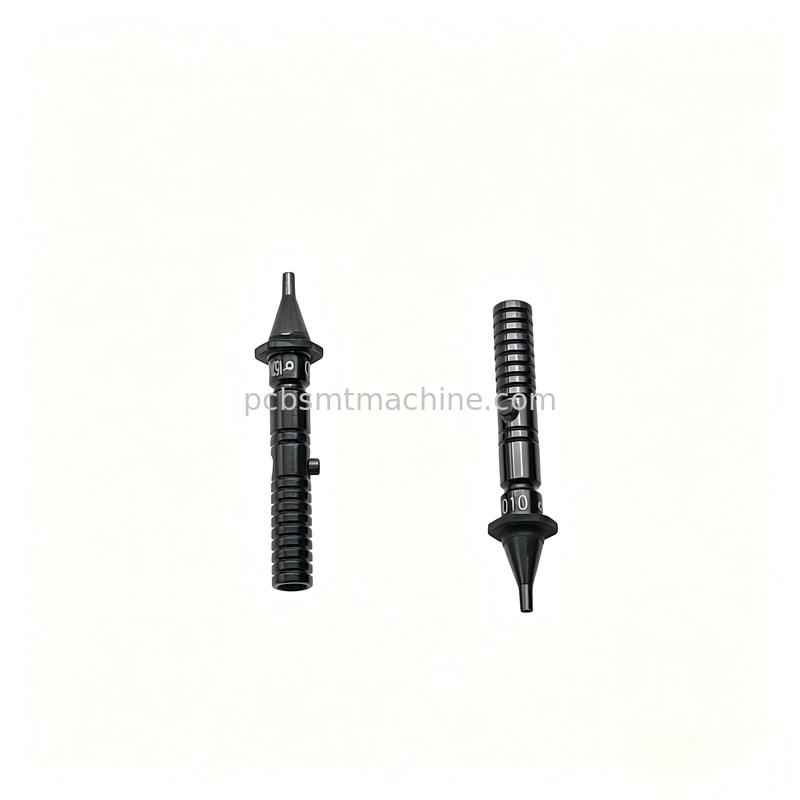

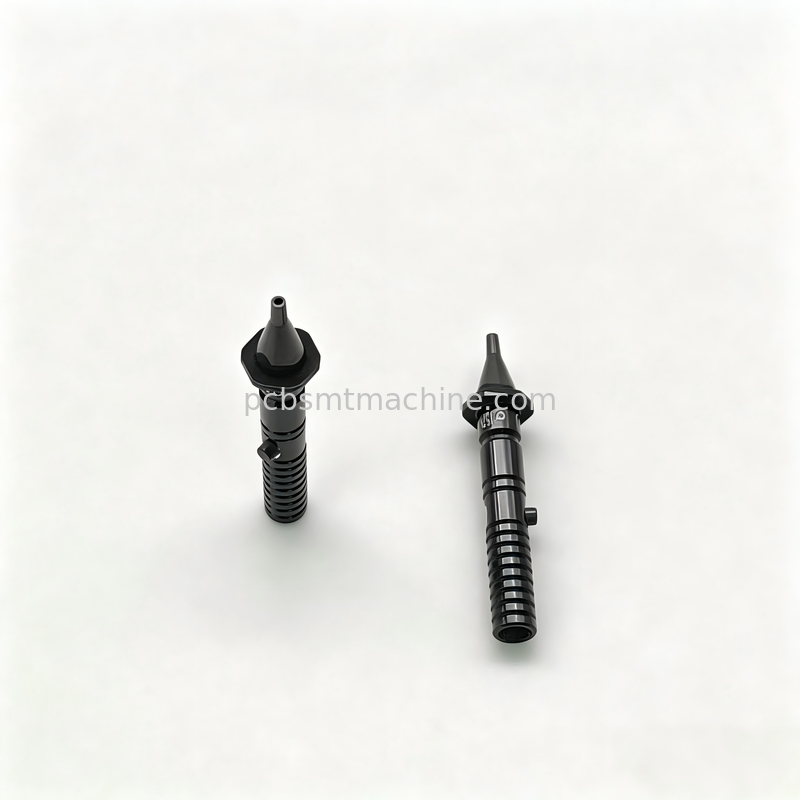

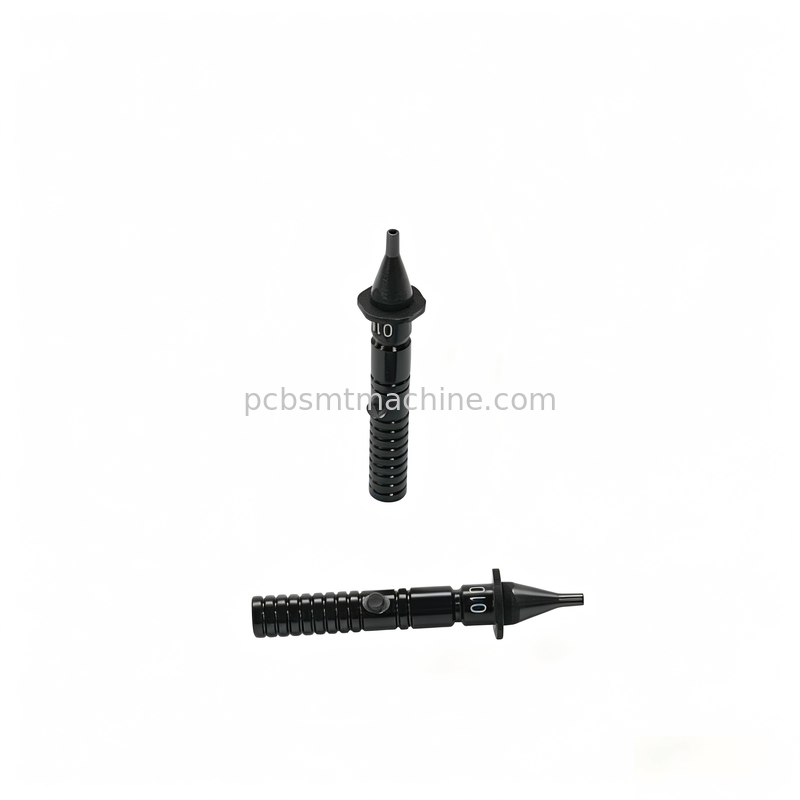

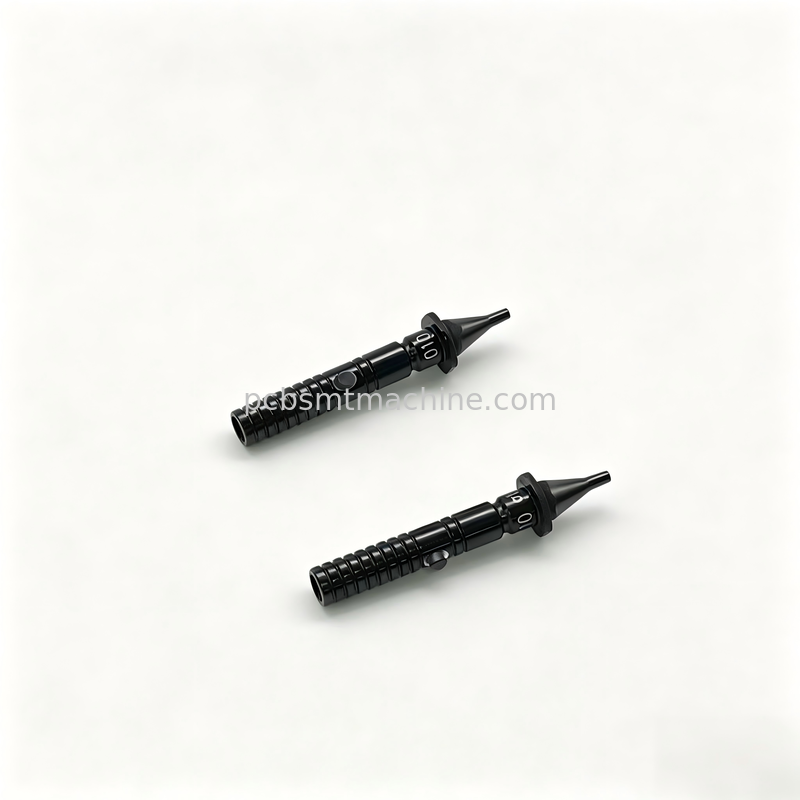

Name: ADNPN8238 1.0mm Precision SMT Nozzle Assembly with Ceramic Tip for FUJI XP Series Pick-and-Place Machines
Brand: INFINITE AUTOMATION CO ., LIMITED
SKU: ADNPN8238
Price: 50.00 USD
Availability: InStock

Home > Products > SMT Spare Parts >

ADNPN8238 1.0mm Precision SMT Nozzle Assembly with Ceramic Tip for FUJI XP Series Pick-and-Place Machines

1.0mm Precision SMT Nozzle Assembly

Ceramic Tip Pick-and-Place Nozzle

FUJI XP Series Compatible Nozzle

Place of Origin:

China

Brand Name:

OEM

Certification:

Model Number:

ADNPN8238

Request A Quote

Product Details

Highlight:

1.0mm Precision SMT Nozzle Assembly

Ceramic Tip Pick-and-Place Nozzle

FUJI XP Series Compatible Nozzle

Payment & Shipping Terms

Minimum Order Quantity

Price

1-100USD

Packaging Details

Carton box

Delivery Time

3-5 working days

Payment Terms

L/C,D/A,D/P,T/T

N510065929AA Vacuum Pump Ball Bearing for Panasonic CM402/CM602 with Precision Tolerance Matching and Stable High-Speed Performance

Get Best Price

Feeder T-Slot Cover Sub-Assembly with Complete Sub-Assembly Unit for Precise Dimensional Compatibility and Reliable Protection Performance

Get Best Price

Original ERSA Service Gloves Size L for Hot Area Maintenance and Solder Bath

Get Best Price

Genuine Panasonic Cable Assembly for NPM-D Series SMT Machines with Reliable Power and Signal Transmission

Get Best Price

(86)-13823274872

rosy@pcbsmtmachine.com

86-755-23115005

Contact Now

Product Description

ADNPN8238 1.0mm FUJI XP Series SMT Nozzle Assembly | Pick-and-Place Nozzle

Product Description

ADNPN8238 1.0mm Nozzle Assembly is an SMT pick-and-place nozzle designed for compatible FUJI XP series placement machines. It is primarily used for vacuum pickup and placement of electronic components.

The 1.0mm FUJI XP Nozzle features a ceramic nozzle tip and is suitable for SMD component pickup and placement applications. It can be used for SMT production, equipment maintenance, and nozzle replacement.

Available sizes: 0.7mm, 1.0mm, 1.3mm, 1.8mm, 2.5mm, 3.7mm, and 5.0mm. Additional FUJI and other series SMT nozzles are available upon inquiry.

Product Specifications

Parameter	Specification
Part Number	ADNPN8238
Product Name	FUJI XP Nozzle Assembly
Nozzle Size	1.0mm
Compatible Equipment	Compatible FUJI XP Series
Main Function	Component Vacuum Pickup & Placement
Nozzle Tip Material	Ceramic
Product Type	SMT Replacement Nozzle / Spare Part
Related Part Number	AGGPN8422

Product Features

1.0mm Precision Specification - Suitable for SMD component pickup and placement applications
Ceramic Nozzle Tip - Provides excellent wear resistance for SMT production and maintenance
Stable Vacuum Pickup - Supports reliable component pickup during the placement process
FUJI XP Series Application - Designed for compatible FUJI XP series placement equipment
Easy Spare Parts Replacement - Suitable for routine nozzle maintenance and replacement
Multiple Specifications - Other sizes include 1.3mm and 2.5mm for different applications
More Models Available - Additional FUJI and other series SMT nozzles can be provided upon inquiry

Frequently Asked Questions

Q1: What is ADNPN8238?

ADNPN8238 is a 1.0mm FUJI XP series SMT nozzle assembly used for vacuum pickup and placement of electronic components.

Q2: Which machines is ADNPN8238 compatible with?

It is designed for compatible FUJI XP series placement machines. Please confirm the machine model and original nozzle part number before ordering.

Q3: Are other nozzle sizes available?

Yes. Other sizes in the same series include ADNPN8248 1.3mm and ADNPN8268 2.5mm. Compatibility should be confirmed according to the machine and component requirements.

Q4: What is the relationship between AGGPN8422 and ADNPN8238?

AGGPN8422 is a related part number for the ADNPN8238 1.0mm application. We recommend confirming the original part number and machine configuration before replacement.

Q5: How do I choose the correct SMT nozzle?

Nozzle selection depends mainly on the machine model, placement head, component size, package type, and original nozzle part number. Providing a product photo or original P/N can help us confirm the correct specification.

Q6: Do you offer other FUJI or SMT nozzle series?

Yes. More FUJI SMT nozzles and nozzles for other placement machine series are available for inquiry. You can provide the machine model, placement head, original nozzle P/N, or product photo, and we can assist with identification.
