Product Description

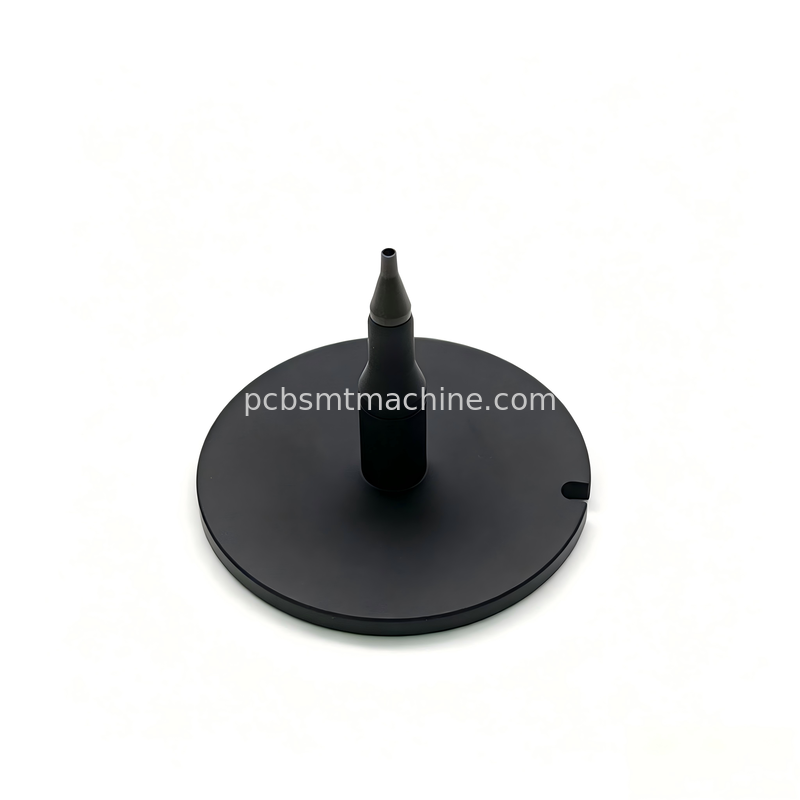

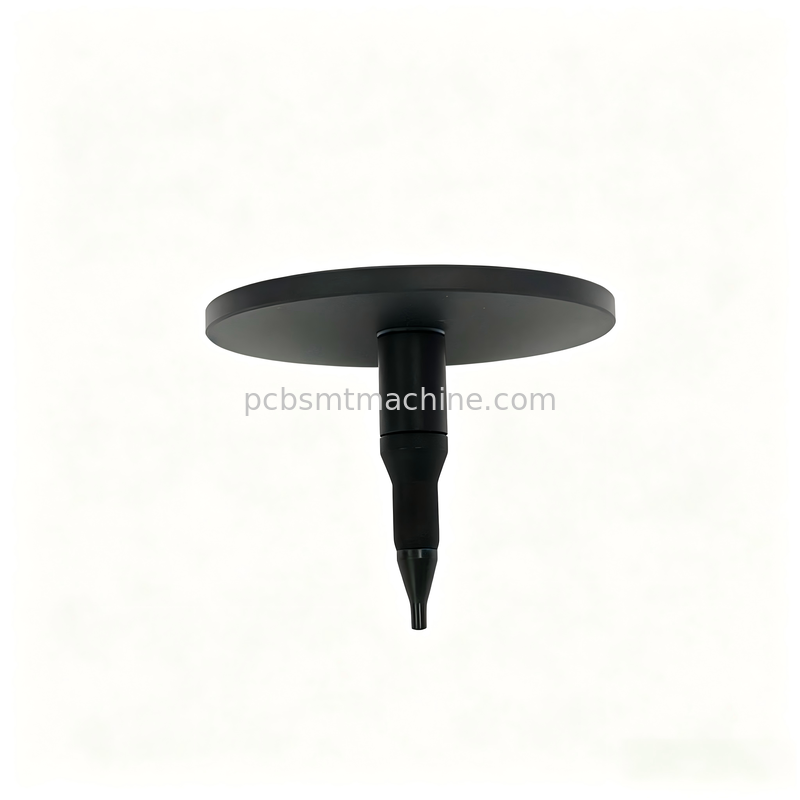

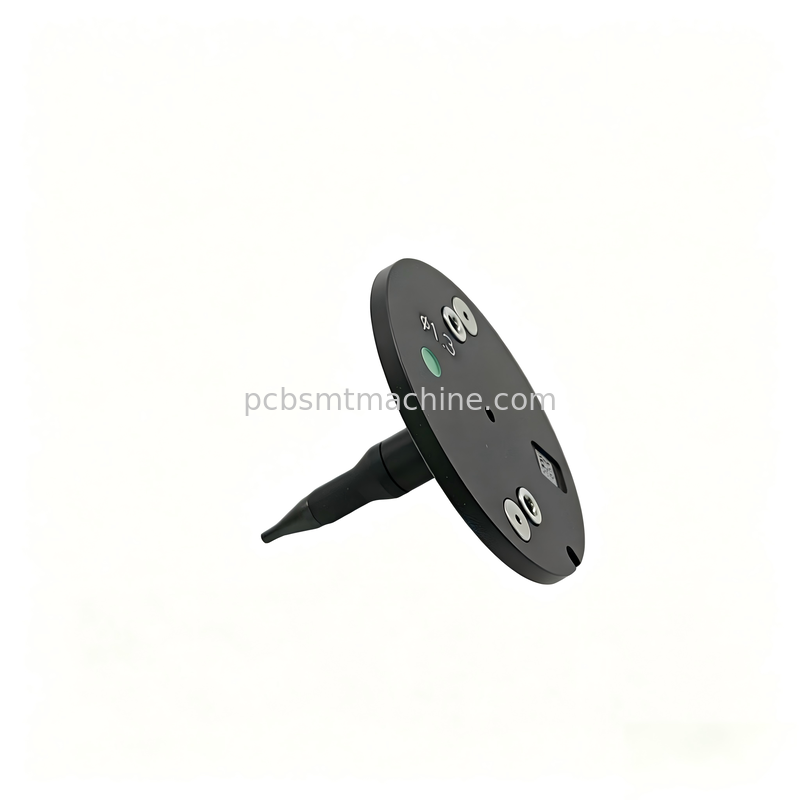

2AHENC000400｜Fuji NXTR RH01‑1.3 Picker Nozzle

Product Overview

The 2AHENC000400 NXTR RH01‑1.3 picker nozzle is a high-quality SMT placement nozzle designed for Fuji NXTR high-speed pick-and-place machines. This replacement nozzle is primarily compatible with NXTR RH01 and RH02 placement heads, making it ideal for high-volume PCB-SMT assembly production lines.

Important Compatibility Note: This SMT pick-up nozzle fits NXTR RH01/RH02 placement heads. It is not recommended for use with legacy NXT H01/H02 placement heads due to structural differences. Please verify your placement-head model before ordering.

Manufactured to original dimension standards, this nozzle delivers stable vacuum performance and helps reduce component mis-picks and offset placement issues. It is suitable for long-hour, high-volume production scenarios and can typically be directly substituted without requiring extra mechanical adjustments.

Technical Specifications

Item	Specification
Part Number	2AHENC000400
Product Name	NXTR RH01‑1.3 Picker Nozzle
Nozzle Aperture	1.3 mm
Compatible Placement Head	Fuji NXTR RH01 placement head, RH02 placement head
Applicable Machine	Fuji NXTR pick-and-place machine
Product Type	SMT placement nozzle / replacement nozzle
Material	Wear-resistant tungsten-steel composite material
Surface Treatment	Anti-static treatment
Condition	Brand New
Application	SMT PCB assembly, picking medium-and-small electronic components

Key Features

Dimension referenced to original standards for NXTR RH01 placement head compatibility
Plug-and-play installation in most scenarios without machine modifications
Tungsten-steel composite material provides excellent wear resistance
Anti-static treatment extends service life in mass-production environments
Precisely machined inner hole ensures stable vacuum performance
Reduces mis-pick rates during high-speed operation

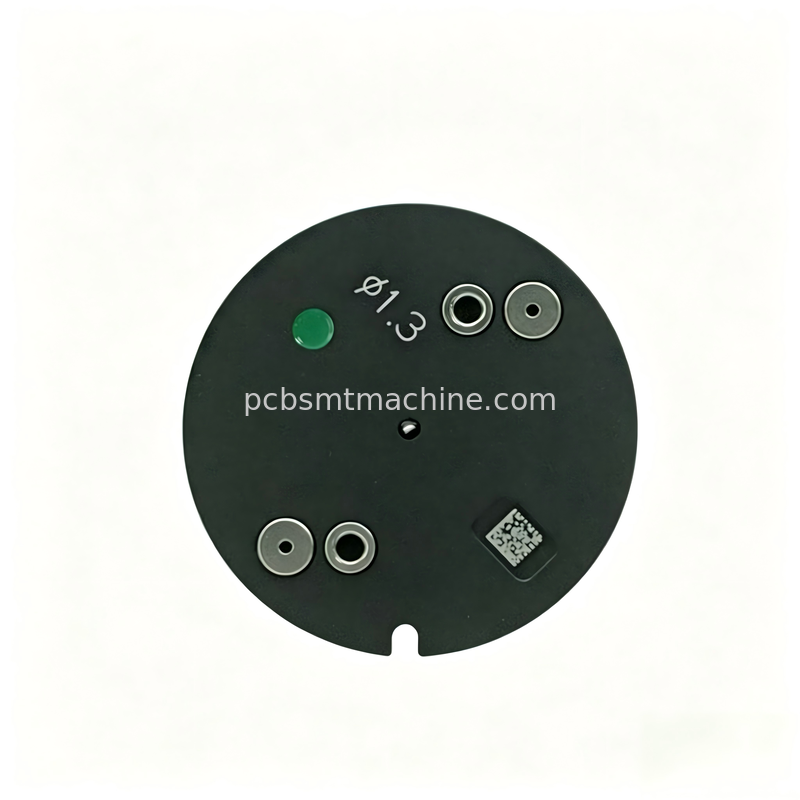

Clear positioning marks for easy identification and sorting
Each nozzle undergoes sampling tests for vacuum performance and dimensions

Frequently Asked Questions

Which machines and placement heads work with 2AHENC000400 nozzle?

This 1.3 mm picker nozzle is compatible with Fuji NXTR RH01 and RH02 placement heads for Fuji NXTR pick-and-place machines. It is not compatible with legacy NXT H01/H02 placement heads due to structural differences.

What is the difference between this picker nozzle and old-generation NXT H01 nozzle?

While aperture sizes may appear similar, the mounting interface and positioning structure have significant differences. Cross-compatibility is not supported as this nozzle is designed specifically for new-generation NXTR-RH series placement heads.

How can I confirm whether 2AHENC000400 is the suitable replacement nozzle for me?

Check the part number engraved on your old nozzle, verify your RH01/RH02 placement head model, and consider the size of components to be picked. We can assist with compatibility evaluation based on your part number or placement-head information.

Under what conditions should NXTR RH01‑1.3 picker nozzle be considered for replacement?

Consider replacement when experiencing frequent mis-picks, unstable suction performance, tip wear or chipping, or vacuum leakage during production to reduce production-line downtime risks.

Do you supply other-aperture SMT pick-up nozzles for NXTR RH01/RH02 besides 2AHENC000400?

Multiple SMT pick-up nozzles for RH-series are available with different aperture options to meet various production requirements.

What shipping options are available for overseas customers for this SMT spare part?

Small-volume orders are shipped via international express, while sea freight is available for bulk orders. We offer flexible MOQ and accept sample orders.
