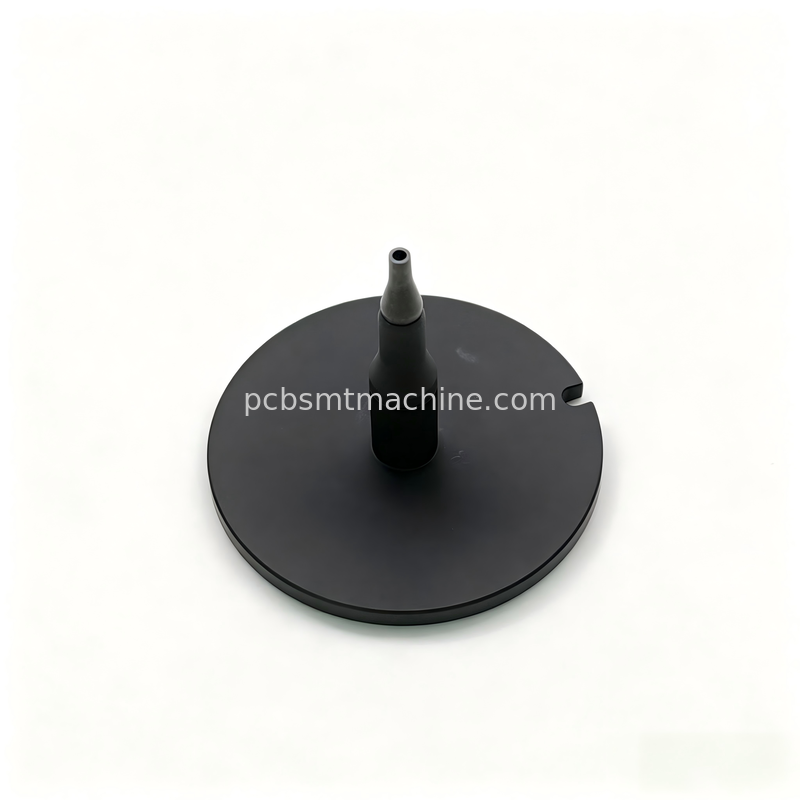

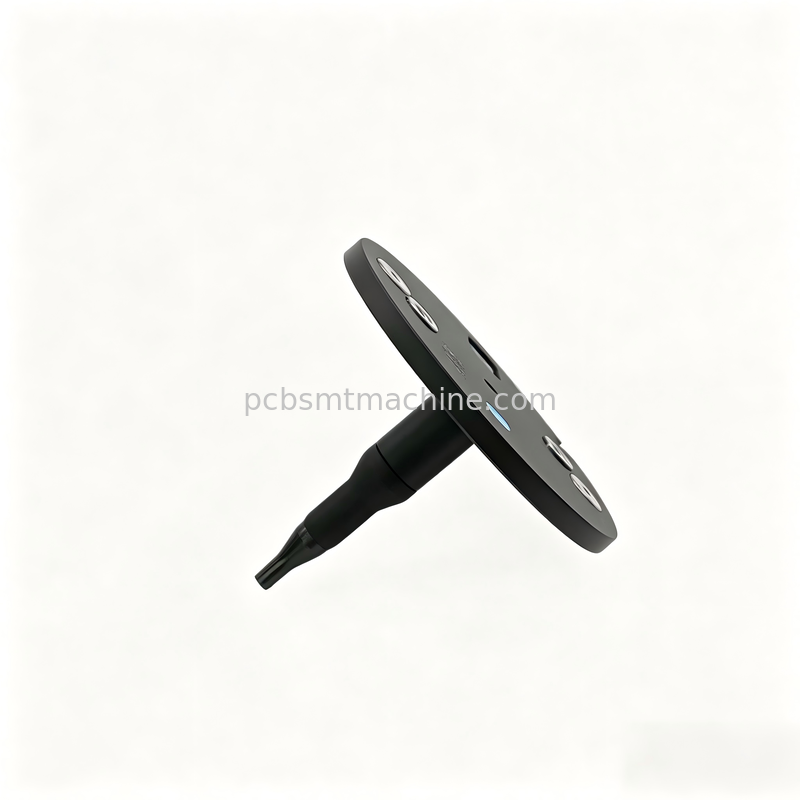

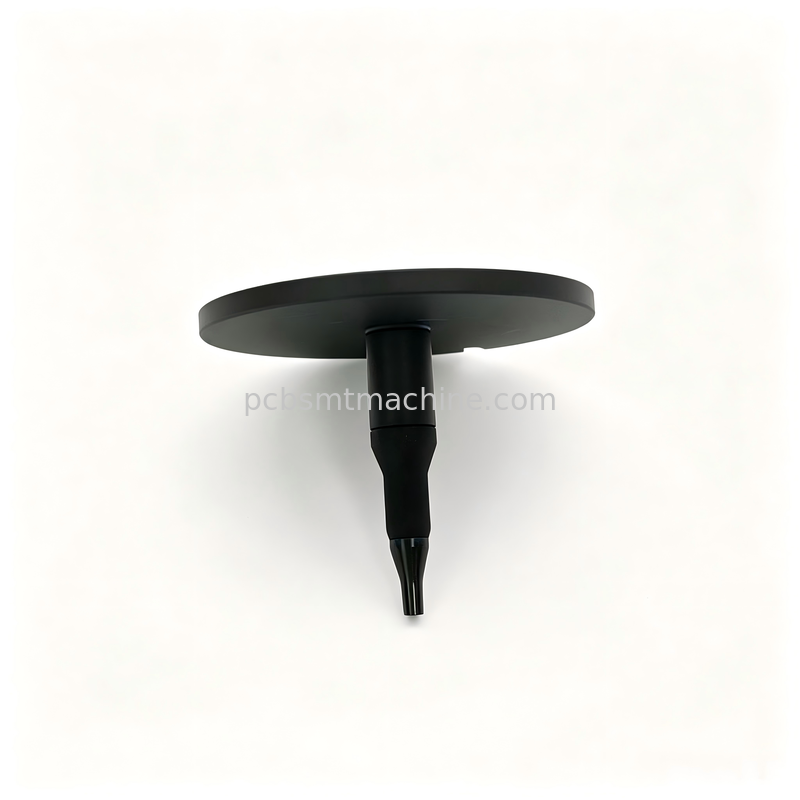

FUJI NXTR SMT Pick-up Nozzle with Ceramic Tip Φ1.8 mm Orifice and Data Matrix Code

The 2AHENC000500 NXTR RH01‑1.8 nozzle is designed for FUJI NXTR mounters equipped with RH01 placement heads. This commonly-used SMT spare part is ideal for factories placing 0603‑1206 resistors, capacitors, and small SMD ICs.

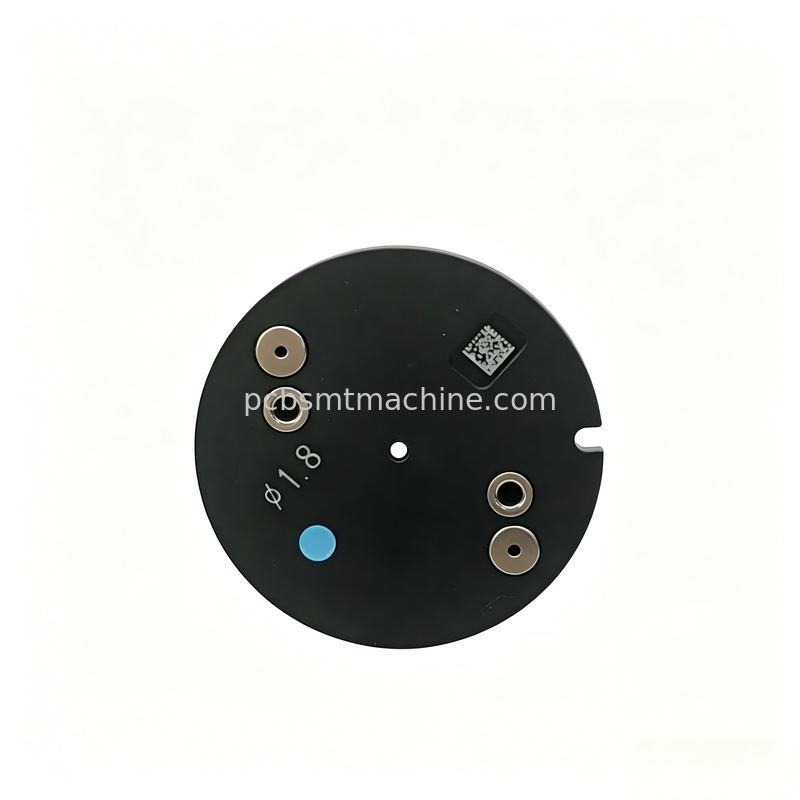

Featuring a ceramic tip with Φ1.8 mm orifice and built-in data matrix code, it can be automatically recognized by FUJI NXTR machines, eliminating the need for manual settings after installation. We maintain premium compatible-new and OEM-original versions in stock. Every NXTR RH01‑1.8 nozzle undergoes vacuum testing and dimensional inspection before shipment to ensure optimal performance.

This nozzle effectively reduces component dropping and placement offset during production while minimizing unexpected downtime in NXTR production lines. It is recommended as a regular spare part for operations using FUJI NXTR equipment.

• Ceramic tip for longer service life: Ceramic material provides superior wear-resistance compared to steel under mass-production conditions, reducing nozzle replacement frequency.
• Ready-to-install: Manufactured to strict OEM dimensions for RH01 placement heads. Install and begin production immediately without calibration.
• Automatic machine identification: The data matrix code enables NXTR machines to automatically identify nozzle models, saving debugging time and preventing wrong-nozzle errors.
• ESD protection: Protects sensitive chips against static damage during pick-and-place operations.
• Full inspection before delivery: Each nozzle undergoes vacuum sealing and dimensional testing to guarantee stable on-line performance.
• In-stock with short lead-time: Minimum order quantity of 1 piece. Supports small-batch trial orders as well as mass stocking for full production lines.

A: This nozzle fits FUJI NXTR mounters with RH01 placement heads. It is not compatible with older NXT‑I / II / III series placement heads.

A: Primarily 0603‑1206 resistors & capacitors and small SMD ICs - medium-size standard components for regular production lines.

A: Our compatible-new nozzles are manufactured referencing OEM drawings and vacuum-tested for mass-production use. OEM-original are genuine Fuji parts available at higher prices. Please specify your requirements when sending inquiries.

A: Yes. All SMT spare parts, including this nozzle, undergo vacuum testing and dimensional checks before packaging.

A: Yes, we offer full-range nozzles for RH01 / RH02 / RH08 heads. Send us your part-number list for consolidated quotation.
