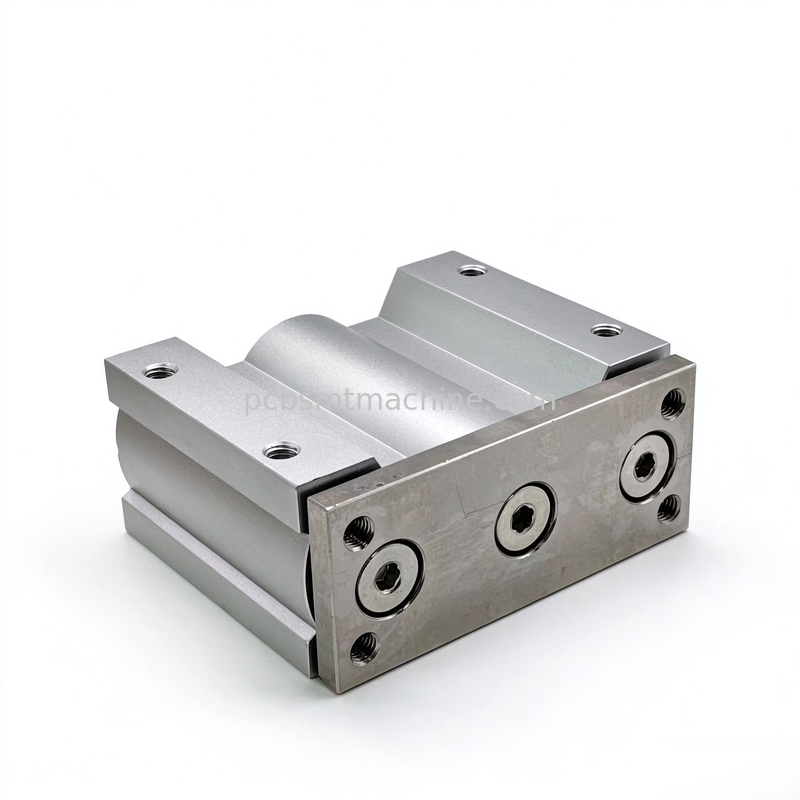

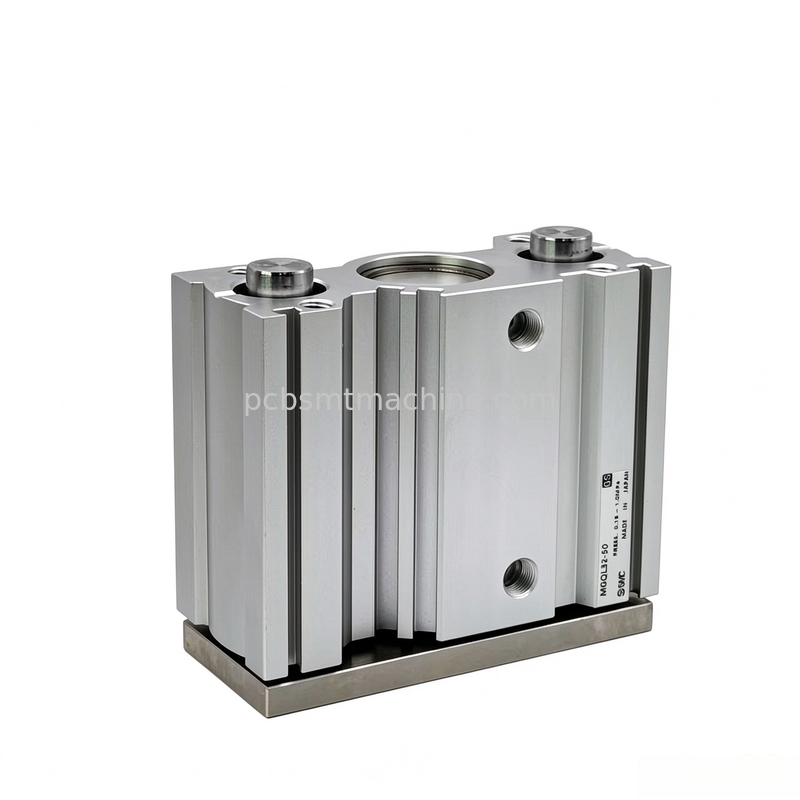

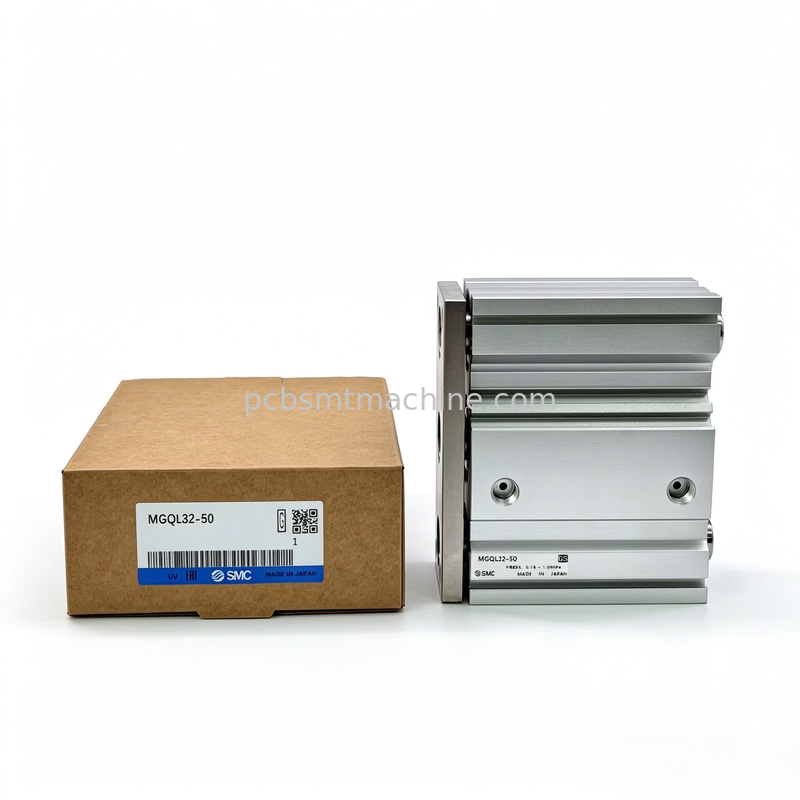

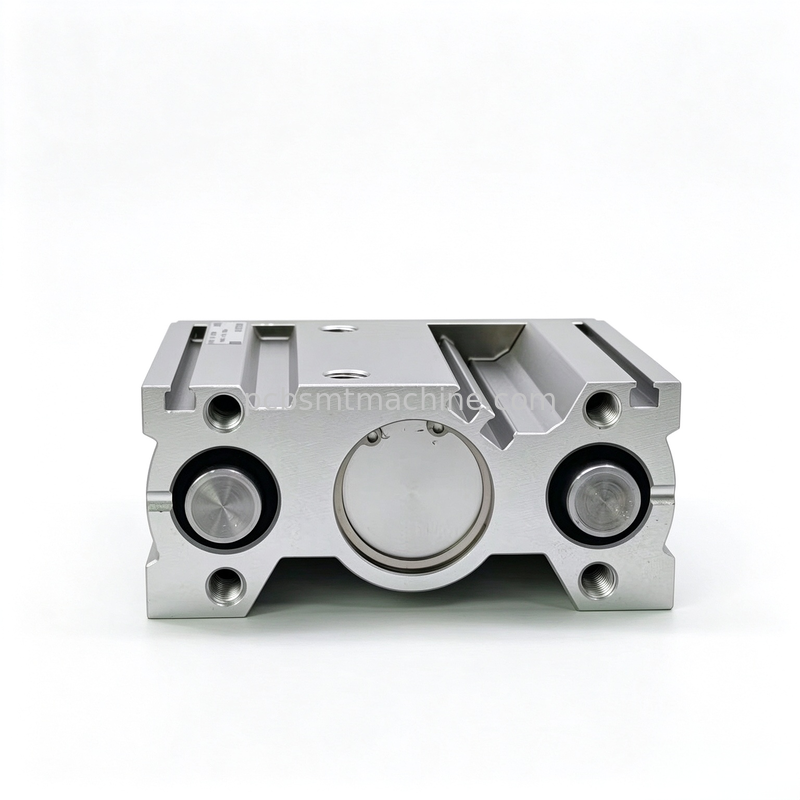

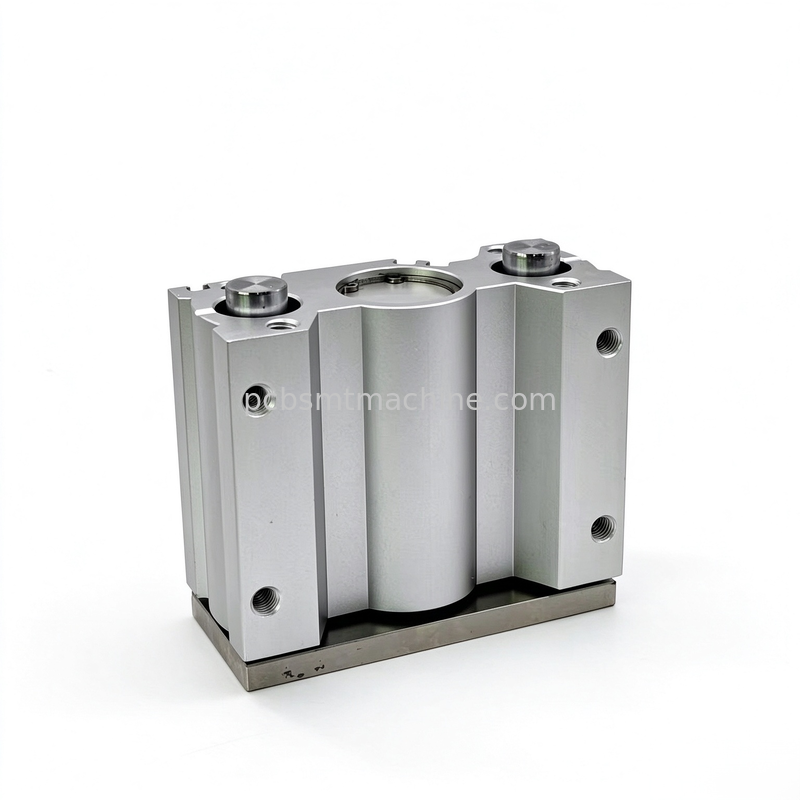

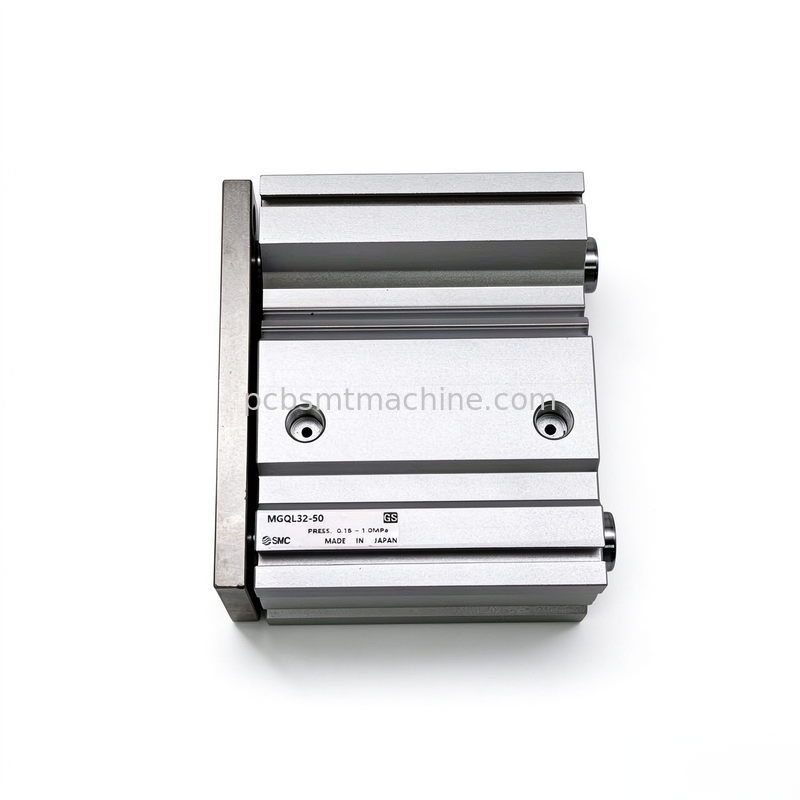

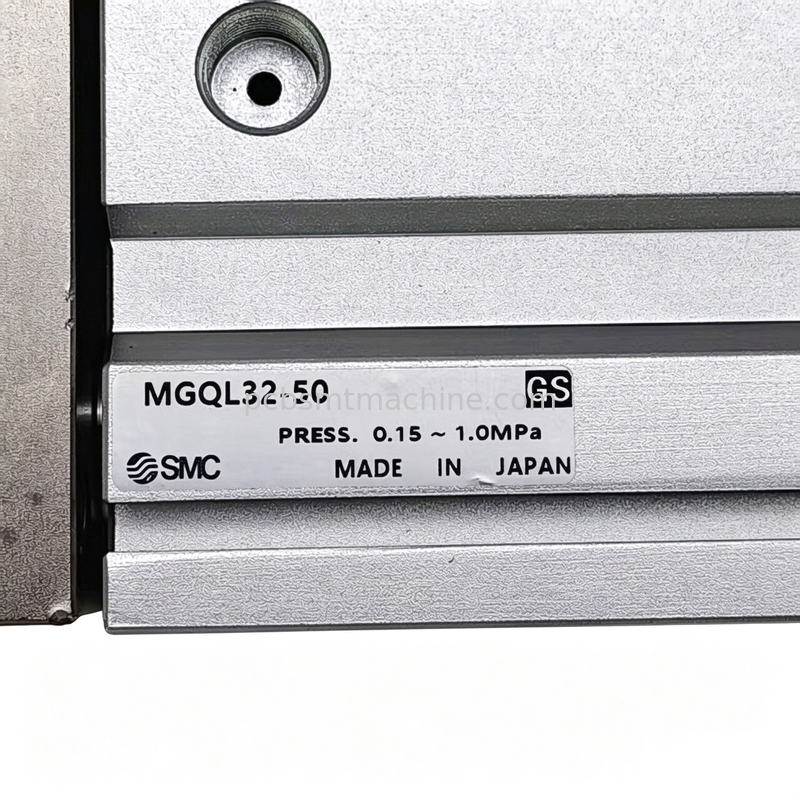

MGQL32-50 SMC Compact Guide Cylinder
Original new stopper & lifter cylinder designed for conveyor applications in automated manufacturing systems.
Product Overview
The MGQL32-50 compact guide cylinder from SMC's MGQ series features an integrated guide shaft with ball bushing bearing structure. This design separates piston rod sealing from bearing load, enabling smooth movement ideal for workpiece stopping, lifting, and pushing operations on conveyor lines. Widely used in PCB conveyor equipment for SMT production lines in PCBA electronics manufacturing.
This model features a 32mm bore and 50mm stroke with double-acting structure and built-in magnet for magnetic auto switch mounting. The integrated guide shaft bears lateral loads while maintaining non-rotating performance. Rubber bumpers on both ends absorb impact during reciprocating motion. Operates with compressed air and requires no lubrication.
Technical Specifications
| Parameter |
Specification |
| Part Number |
MGQL32-50 |
| Product Name |
Compact Guide Cylinder |
| Brand |
SMC |
| Bearing Type |
Ball Bushing Bearing |
| Bore |
32 mm |
| Stroke |
50 mm |
| Action Type |
Double Acting |
| Working Fluid |
Compressed Air |
| Max. Operating Pressure |
1.0 MPa |
| Min. Operating Pressure |
0.1 MPa |
| Proof Pressure |
1.5 MPa |
| Ambient Temperature |
-10℃ ~ +60℃ (without freezing of fluid) |
| Cushion |
Rubber bumper at both ends |
| Lubrication |
Non-lube |
| Magnet |
Built-in magnet, compatible with magnetic auto switches |
| Product Condition |
Original Brand New |
| Reference Application |
Workpiece stopping, lifting and pushing on conveyor; PCB transfer mechanism for SMT equipment |
Key Features & Benefits
- Ball bushing bearing structure ensures smooth movement for precise positioning in pushing and lifting applications
- Compact design with integrated guide shaft saves installation space while withstanding lateral loads and providing anti-rotation
- Built-in magnet supports SMC magnetic auto switches for position detection signal collection
- Rubber bumpers on both ends effectively absorb impact from reciprocating motion
- Non-lube design reduces maintenance requirements for pneumatic circuits
Quality Assurance & Services
All MGQL32-50 cylinders supplied are original new SMC products, inspected according to factory specifications before delivery. Shock-resistant packaging minimizes damage risk during cross-border transportation.
Supporting Services
We provide comprehensive sourcing services for SMT pneumatic spare parts. For automated production line construction or SMT machine maintenance, we supply matching pneumatic components including guide cylinders, solenoid valves, filters, tube fittings, sensors, and more.
Bulk Ordering
Bulk inquiries and regular spare parts replenishment quotations are welcome. We provide combined quotations based on your BOM list requirements.
Frequently Asked Questions
Is the MGQL32-50 an original new SMC cylinder?
Yes. We supply only original new SMC compact guide cylinders. We do not offer refurbished, used, or replicated units. Relevant product documentation is available upon request.
What equipment is the MGQL32-50 commonly used on?
According to SMC documentation, this series is designed for stopping, lifting, and pushing mechanisms on conveyors. In industry applications, it's widely used in PCB conveyor equipment for SMT lines, as well as workpiece positioning and pushing on other automated equipment.
Can I order magnetic auto switches together with the cylinder?
Yes. The MGQL32-50 has a built-in magnet and supports SMC magnetic auto switches. You can order switches separately or request a combined quotation for one-stop pneumatic component sourcing.
What is the MOQ and estimated lead time for MGQL32-50?
Orders starting from 1 piece are accepted, subject to stock availability. In-stock items ship quickly. For bulk orders, please contact us for pricing and estimated lead times.
Can I purchase full sets of spare parts for entire SMT production lines?
Yes, we support combined inquiries for multiple SMT spare parts. Beyond MGQL series cylinders, we can source various pneumatic cylinders, valves, filters, and other SMT spare parts and consumables. We provide quotations based on your BOM list.
What warranty applies to the MGQL32-50?
Original products are covered under SMC's official warranty terms. Damage resulting from improper installation, operation beyond rated parameters, or mechanical collision is not covered by warranty.
