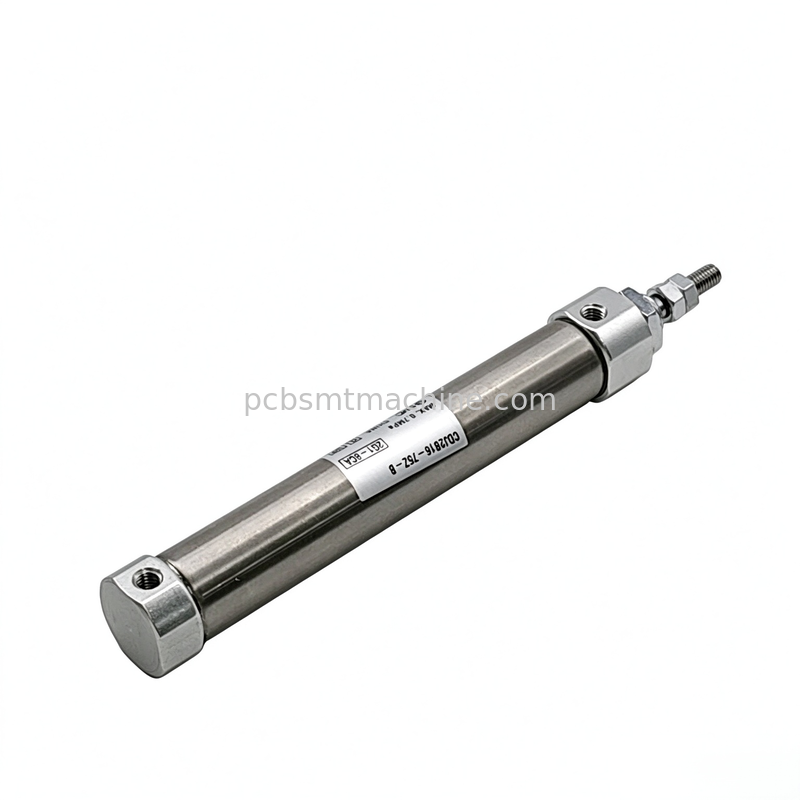

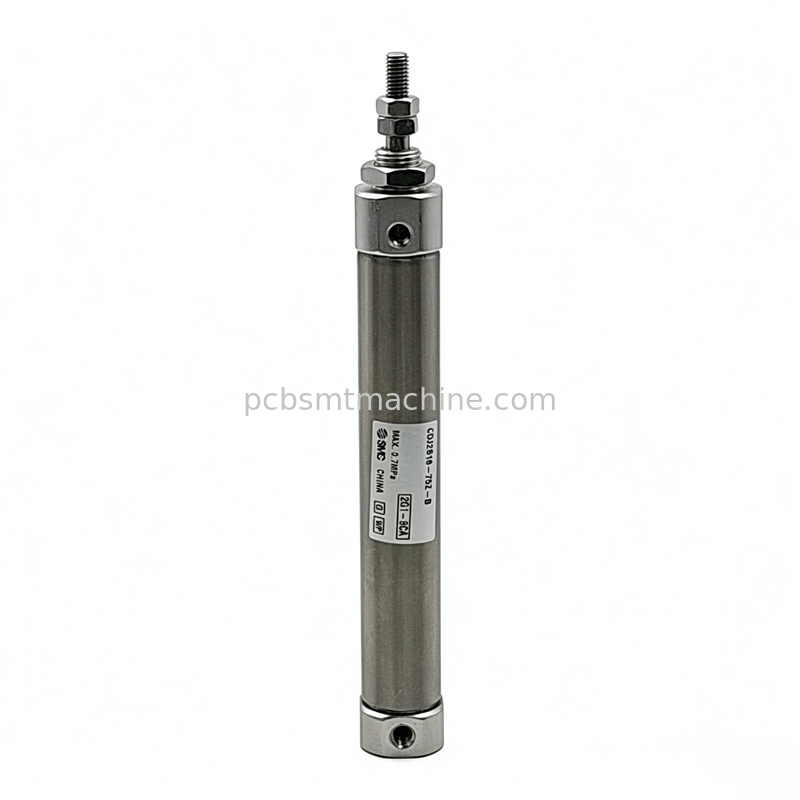

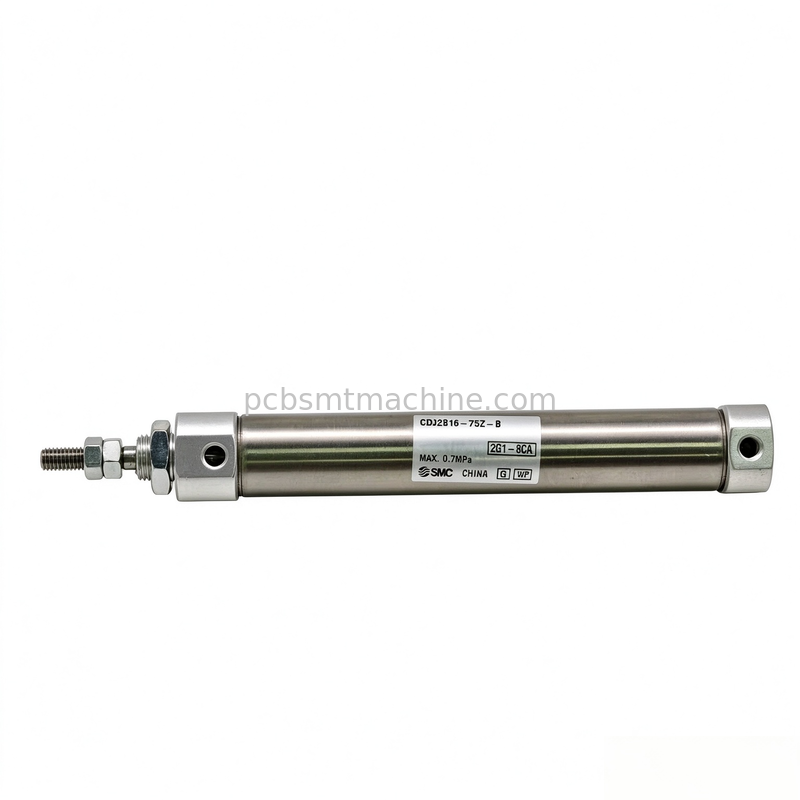

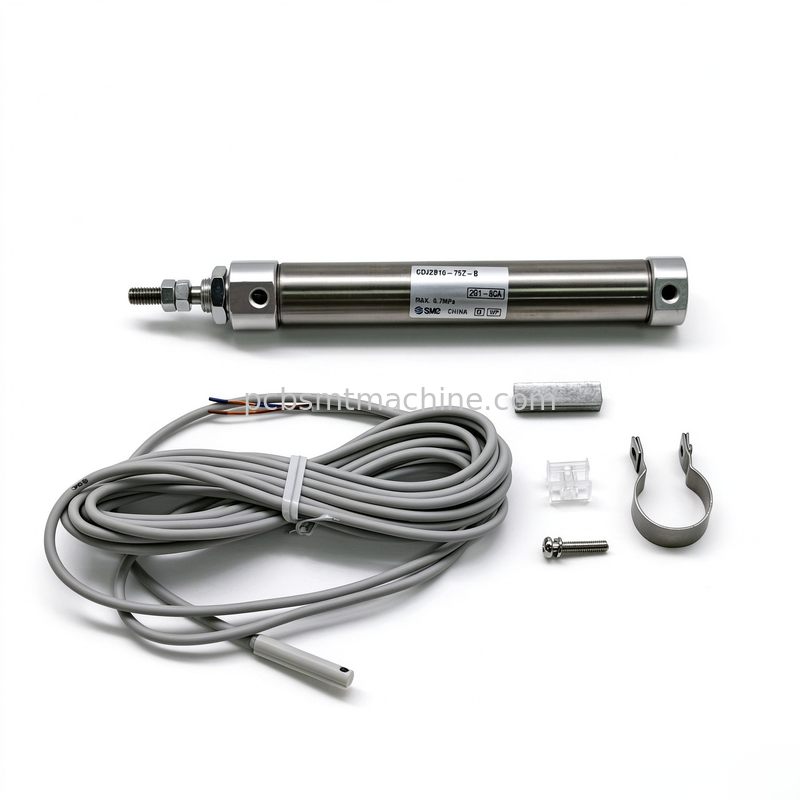

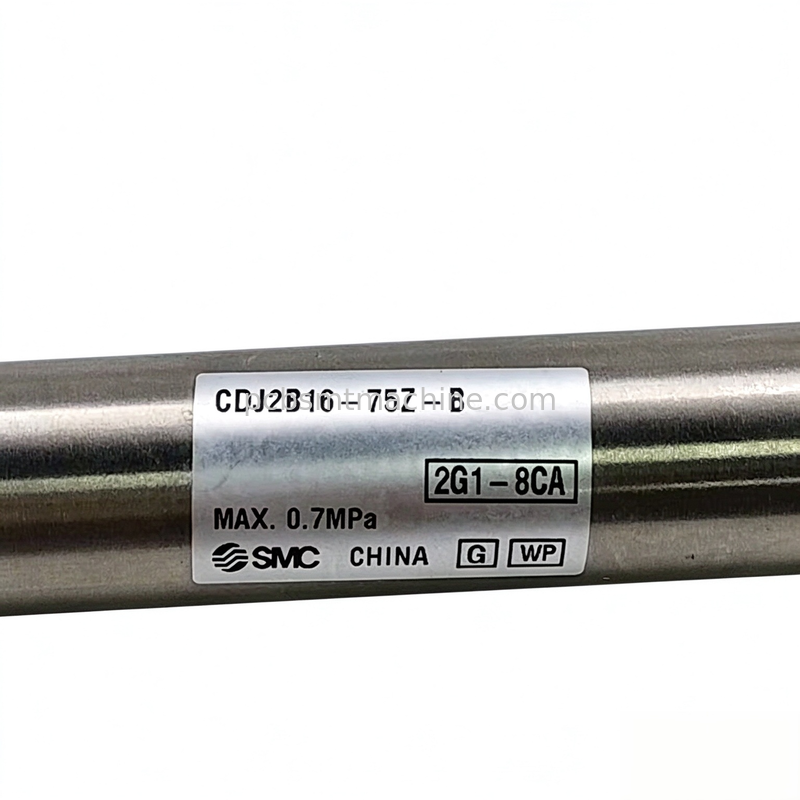

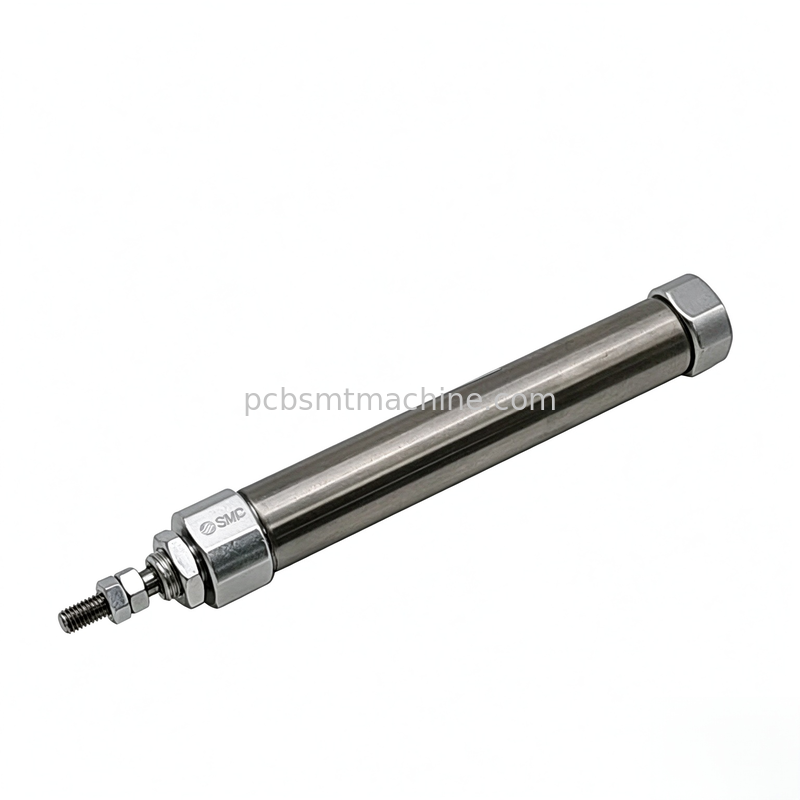

CDJ2B16-75Z-A93L-B Mini Pneumatic Cylinder with 16mm Bore Size and 75mm Stroke Length for High Precision SMT Equipment

CDJ2B16-75Z-A93L-B mini pneumatic cylinder is a pneumatic actuator specifically designed for SMT electronic automation production lines and PCB assembly equipment. Featuring a compact structure, this cylinder is engineered for high-frequency reciprocating motion in precision electronic manufacturing scenarios, delivering stable linear force output with reliable construction.

This model is well-suited for long-duration operation in dusty SMT workshop conditions. It can be integrated with placement machines, dispensing equipment, and PCB conveyor systems, serving as an optional pneumatic spare part for electronics factories and EMS production lines.

• High Precision Positioning: Manufactured with precision CNC machining and tight tolerance control. The piston and sealing components are finely processed to ensure consistent 75mm stroke accuracy, suitable for SMT mounting, material positioning, clamping and other processes requiring precise positional control.
• Efficient Actuation Response: Optimized internal air circuit and low-friction structural design enable smooth movement and quick response, adapted to continuous mass production conditions on electronic assembly lines.
• Low Maintenance Requirement: The cylinder body is built with dust-proof and anti-aging properties to suit SMT workshop environments. Under standard operating conditions, it helps reduce routine maintenance frequency and minimize maintenance investment and downtime risks.
• Compact Structure, Wide Application Range: Mini integrated cylinder body saves equipment installation space. The vibration-resistant structure supports prolonged continuous operation. It can be fitted with mainstream SMT placement machines, dispensers, PCB conveyors, inspection equipment and other automated devices.

This mini pneumatic cylinder can be used with various SMT automation equipment. Typical applications include SMT placement machines, PCB conveying mechanisms, automatic dispensing equipment, AOI inspection units, material clamping and feeding mechanisms for precision assembly stations in electronics factories.

It is specifically designed for high-frequency reciprocating motion scenarios in SMT applications. It delivers superior positioning accuracy, stable response, dust and vibration resistance suitable for workshop environments, with relatively lower maintenance frequency compared to standard industrial cylinders.

Yes, it supports prolonged continuous cyclic operation when operated within rated working conditions with clean air supply, making it suitable for 24/7 manufacturing environments.

It is a pneumatic spare part of general specification. Customers may conduct adaptation evaluation according to equipment drawings and installation dimensions to ensure compatibility with specific brand requirements.

Actual service life depends on working conditions, air source quality and operation frequency. We provide comprehensive B2B technical consultation and after-sales support for overseas factory customers to ensure optimal performance and longevity.
