Universal Lightning Head Nozzle 3550 PN 51305423-3550 | High Precision SMT Nozzle

1.Product Description

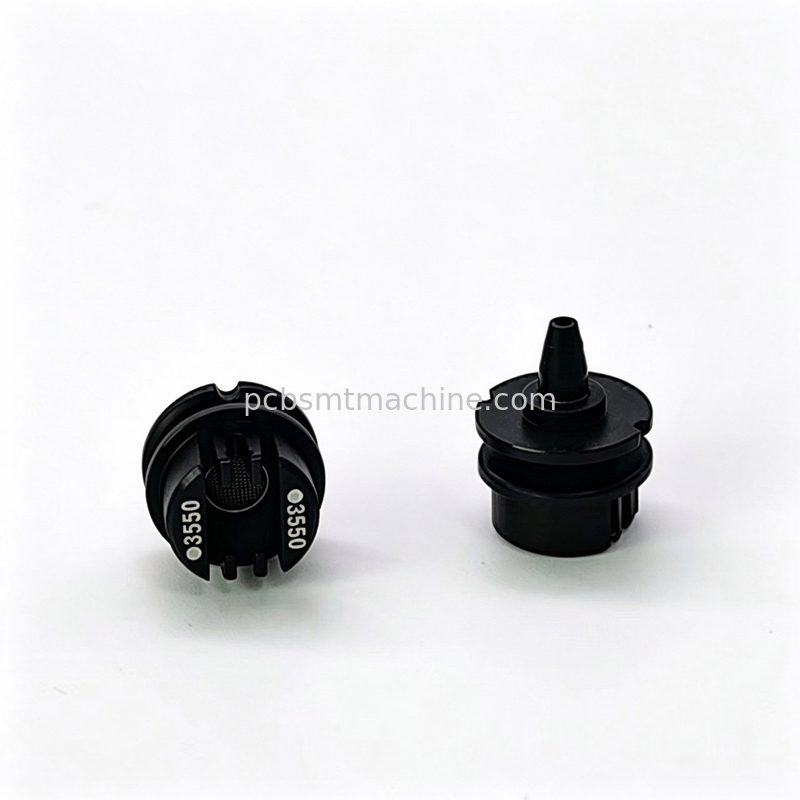

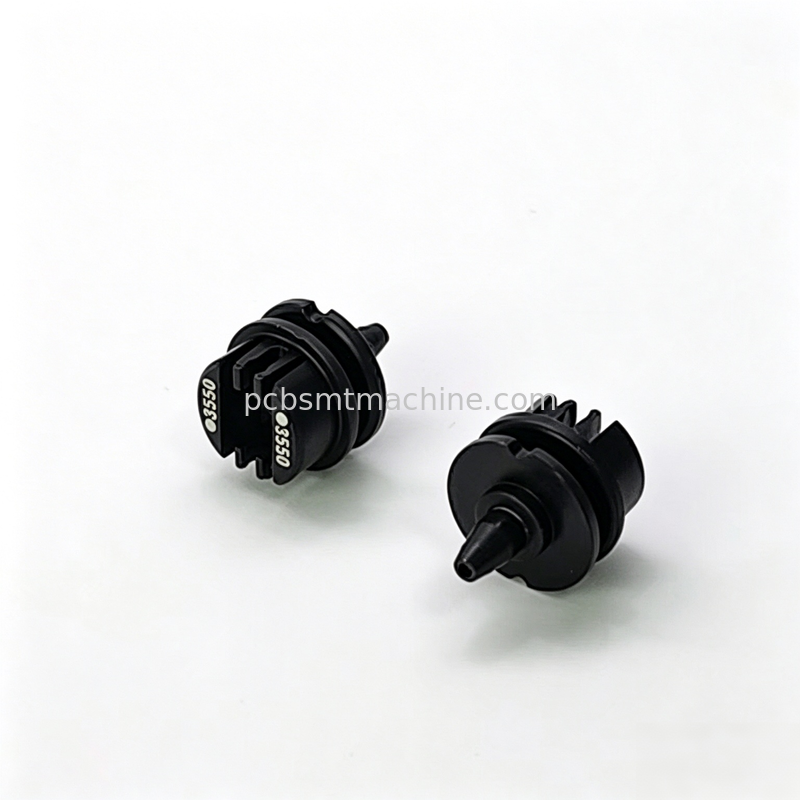

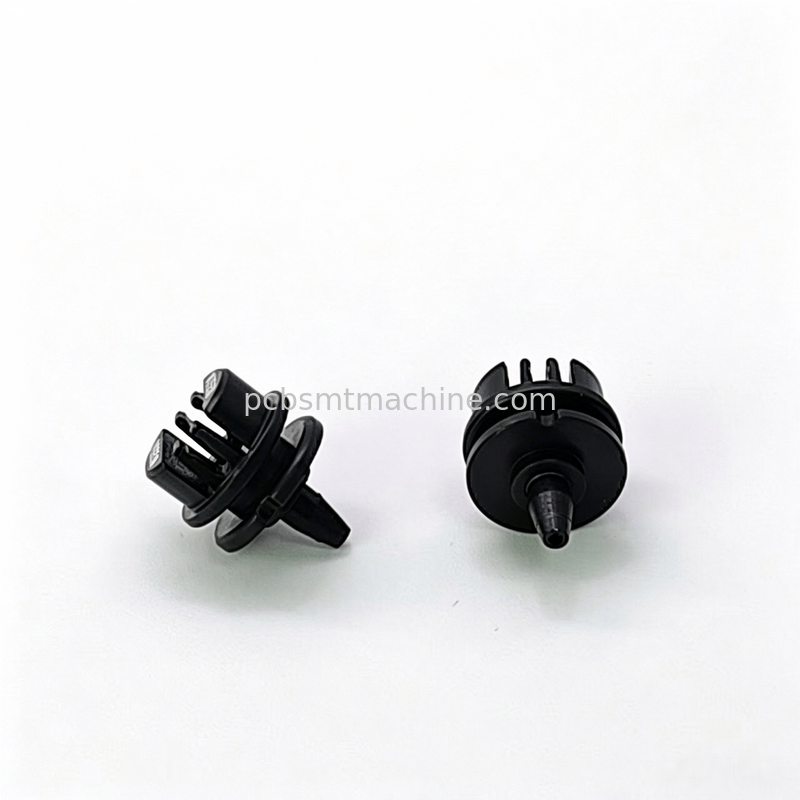

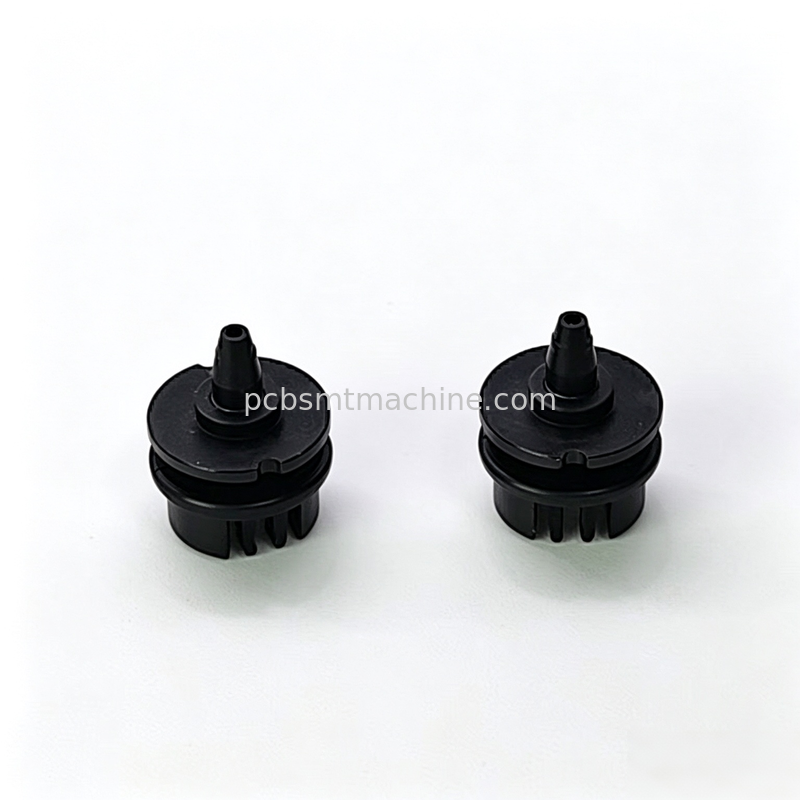

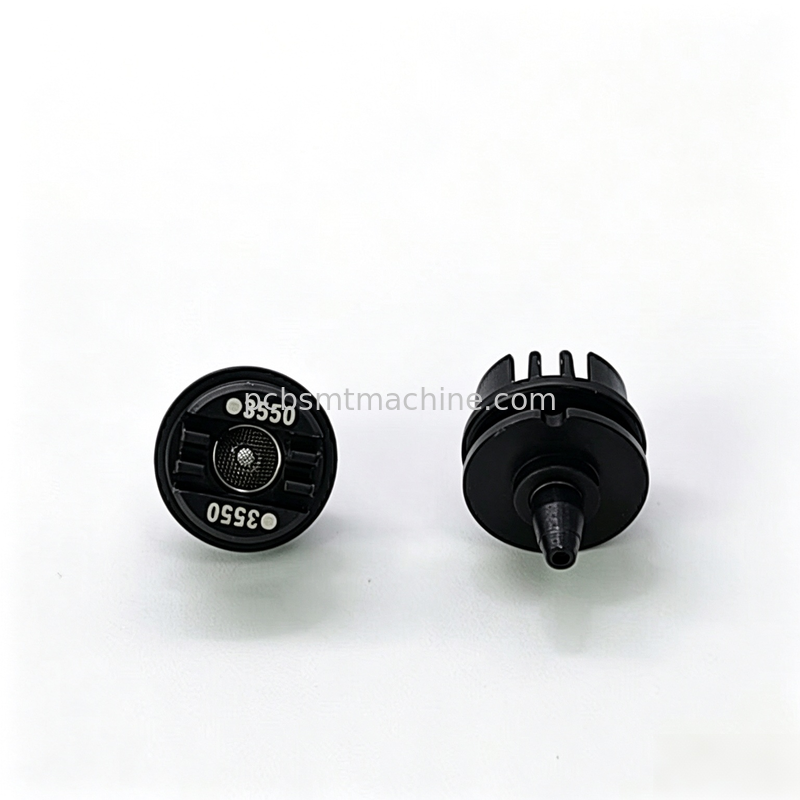

Universal Lightning Head Nozzle 3550 (PN 51305423-3550) is a replacement spare part for PCBA production lines, compatible with Universal Lightning Head placement machines. Made with CNC precision machining and wear-resistant material, it delivers stable vacuum pickup for long continuous production. Anti-clog structure and simple assembly help reduce common nozzle issues, stabilizing production and cutting maintenance cost for EMS factories.
2.Technical Specification

3.Core Features & Solution
Core Advantages
High Precision: Consistent CNC machining reduces component offset and dropping, improves yield and lowers rework.
Stable Mass Production: Optimized air flow maintains steady vacuum for multi-shift continuous production and minimizes downtime.
Low Maintenance: Anti-clog & anti-stick design, easy to disassemble and clean, saving spare parts & labor cost.
Good Compatibility: Same structure and interface as original, plug and play without machine modification.
Manufacturing Process
Raw material inspection → CNC forming → anti-static surface treatment → vacuum test → dimension verification → finished product inspection to guarantee batch consistency.

Whole Line Solution
We supply full range nozzles for Universal Lightning Head machines. Custom nozzle can be evaluated for special component mounting requirements.
Cooperation Process
Confirm machine model, components & order quantity
Product selection & quotation
Sample available for line test
Inspection before shipment
International delivery with complete export documents
Technical support for installation & maintenance
Application
Suitable for medium & high volume PCBA manufacturing, widely used in consumer electronics, automotive electronics, industrial control boards, communication modules and smart home PCB production for EMS factories requiring stable long-running SMT lines.
4.FAQ
Q1: Can PN 51305423-3550 nozzle directly replace original nozzle?
A1: Yes. Dimension and interface are matched, no machine modification required.
Q2: What components fit this nozzle?
A2: For 0402,0603,0805 resistors, capacitors, diodes and other small-medium SMD parts.
Q3: What is your warranty policy?
A3: Warranty provided. Normal wear and man-made damage are excluded. We offer solutions for non-human quality issues.
Q4: Can I get samples or custom nozzles?
A4: Samples available for on-machine test. Custom nozzles can be assessed for special mounting demands.
Q5: How to maintain the nozzle?
A5: Regularly clean debris and check vacuum performance. Avoid high temperature or corrosive environment. English maintenance guide available for bulk orders.
Q6: Delivery & shipping for overseas orders?
A6: Stock available for quick shipment. DHL, FedEx and sea freight optional, full export documents for customs clearance.
