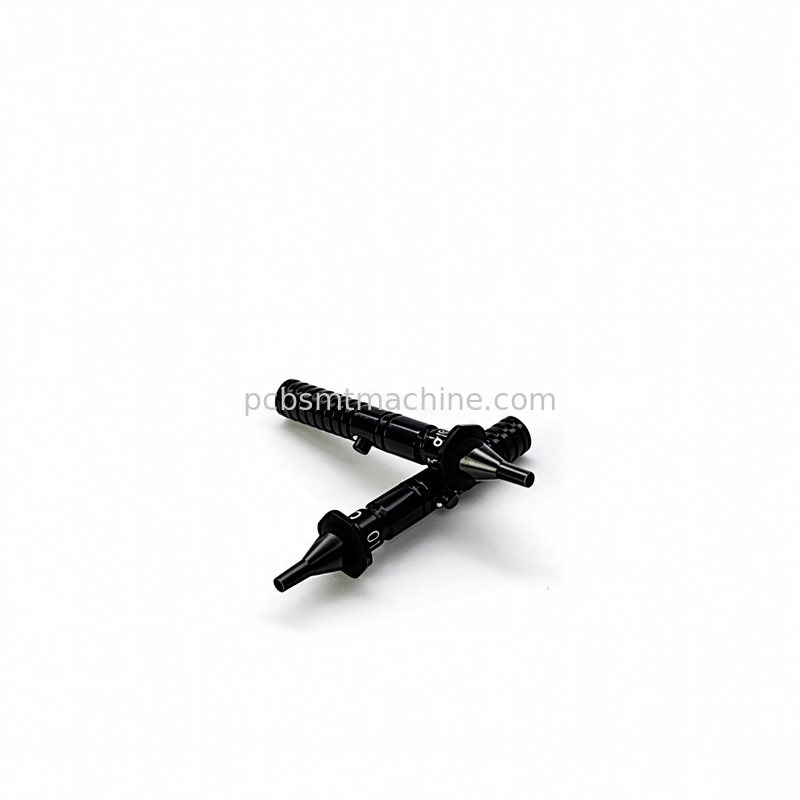

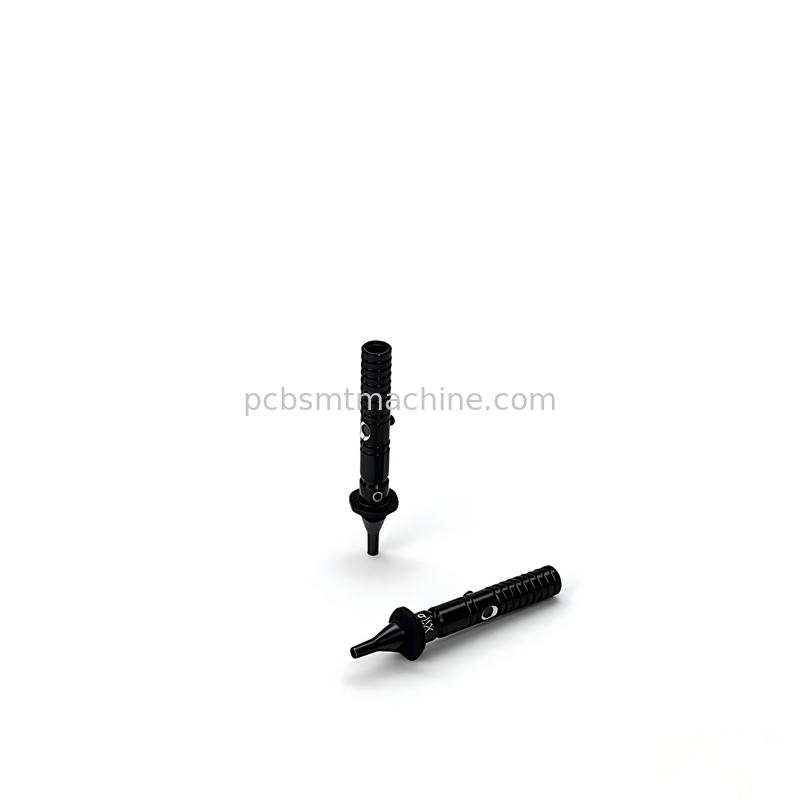

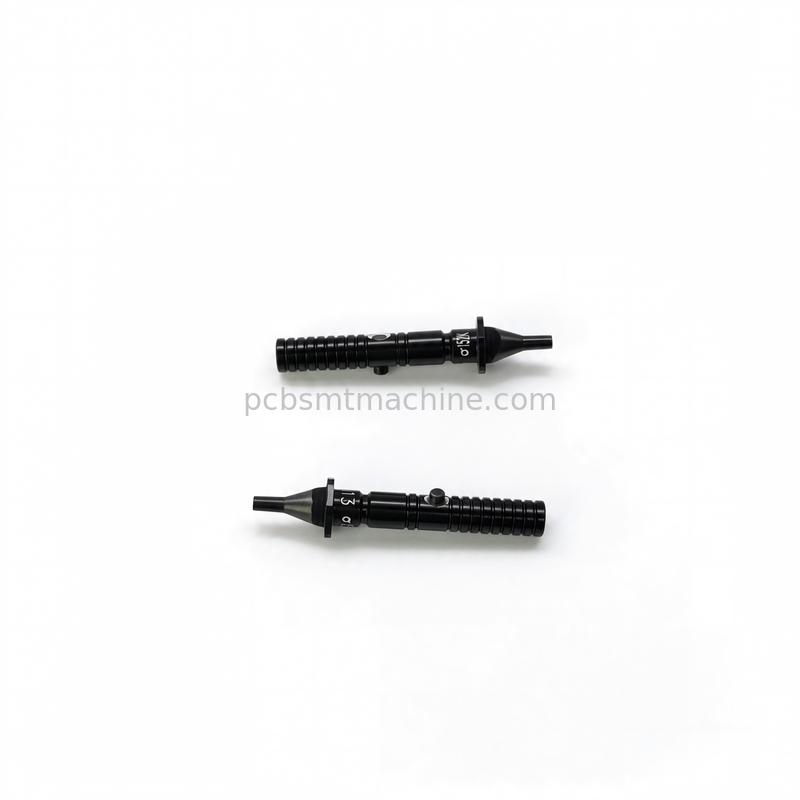

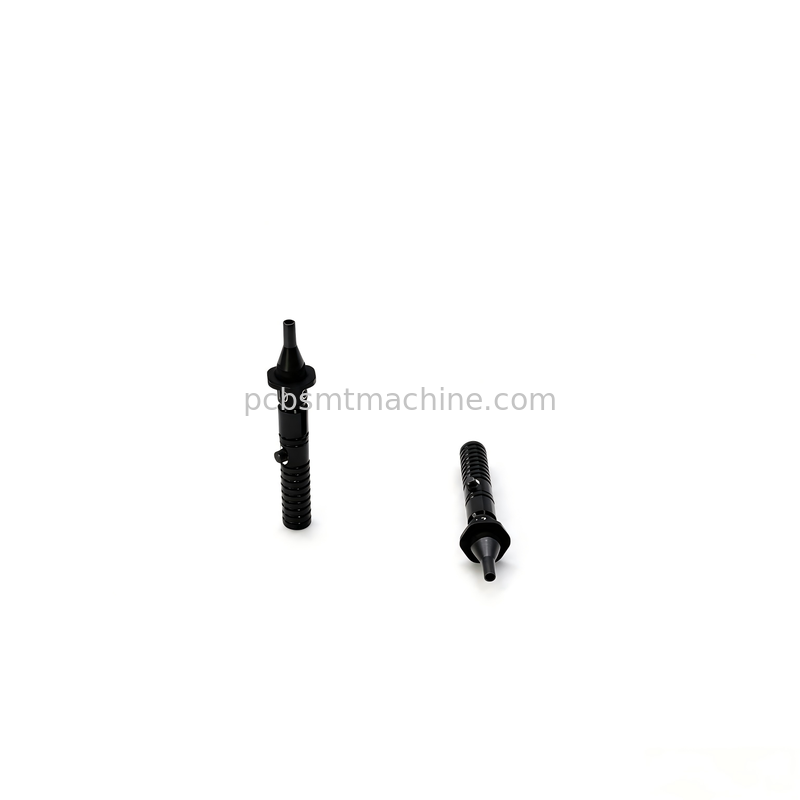

1.3mm Orifice Ceramic Tip ESD Safe Fuji XPF Nozzle SMT Nozzle for Pick and Place Machines

The 2AGGNA009700 Fuji XPF 1.3mm nozzle is a compatible replacement nozzle engineered for Fuji XPF rotary pick-and-place machines. It handles component picking and placement in SMT production, helping to reduce common issues such as mis-picks, placement offset, unstable vacuum, and nozzle wear.

Manufactured with precision machining, the nozzle maintains stable vacuum adsorption during continuous high-speed production. It is a direct interchangeable replacement for part number 2AGGNA009700 — plug-and-play with no extra calibration required, minimizing line downtime. Designed for high precision, it improves production efficiency and lowers maintenance cost. Suitable for EMS factories, PCBA assembly workshops, SMT maintenance service providers, and spare parts distributors, it stabilizes mass placement performance and reduces overall spare part and maintenance expenses.

We supply standard XPF nozzles in multiple orifice sizes: 0.4mm, 0.7mm, 1.0mm, 1.3mm, 1.8mm, 2.5mm, 3.7mm, and 5.0mm. Mixed orders are accepted. Custom special-shaped nozzles are also available for special component placement requirements.

• Nozzle body CNC machining with tight tolerance control
• Ceramic tip sintering and grinding
• Bonding and coaxial alignment between ceramic tip and alloy base
• Polished internal vacuum channel to reduce dust and flux residue accumulation
• Individual inspection for vacuum performance, dimension, and appearance
• Independent ESD-safe packaging — dustproof and shockproof for transit and workshop storage

• Inquiry: Provide part number, quantity, lead time, and trial request. Supply drawings or samples if you need different standard sizes or custom special-shaped nozzles.
• Quotation: Formal quotation including unit price, sample cost, shipping option, and payment terms. Custom nozzles are quoted separately based on drawings or samples.
• Sample Validation: Samples arranged for your on-line testing. Single or multiple standard sizes for trial are acceptable. Custom special-shaped nozzles can be prototyped first.
• Bulk Order: Place bulk order after sample approval. We recheck quality before shipment.
• Shipment: ESD shockproof packing. We support courier, sea freight, or pickup by your nominated forwarder.
• After-sales Support: Technical guidance and communication for quality-related issues.

We supply spare parts for Fuji XPF placement machines. Besides the 2AGGNA009700 (1.3mm) nozzle, we also provide other standard XPF nozzles, feeders, filters, sensors, cylinders, and other wearing parts.

On-demand stocking and urgent delivery are available. Custom BOM packages can be prepared according to your machine list. Multiple nozzle sizes can be combined into one shipment. We also develop custom special-shaped nozzles for non-standard component placement.
