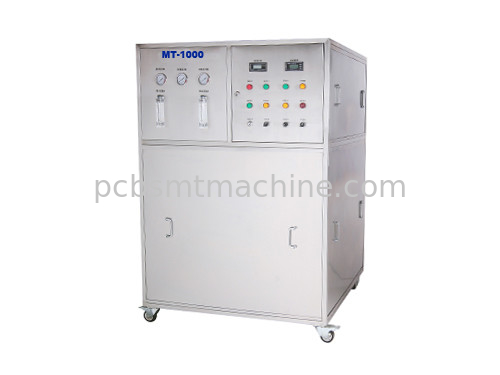

SS304 Smt Line Equipment For Tap Water To De-Industrial Pure Water Converter MT-DI-1000

INFINITE™  MT-DI-1000 fully automated reverse osmosis/MB combined technology tap water to de-industrial pure water converter is equipped with the most advanced ultrapure water manufacturing process used in the industry today. MT-DI-1000 is an integrated equipment with all stainless steel structures. It is specially used to convert tap water into de-industrial pure water, with a water output of 1000L per hour, which is supplied to our offline PCBA washing machine and steel mesh washing machine for rinsing. The machine installation components can be divided into three parts: pretreatment system, RO reverse osmosis system, and MB mixed bed system. The machine has stable performance, fully automatic operation, and high water resistivity.

Features:

1. With fully enclosed integrated design and small footprint appearance.

2. Uses reverse osmosis/MB combined technology, the most advanced ultrapure water manufacturing process: the system is fully configured.

3. Fully automated operation, stable effluent water quality, and effluent resistivity of 10MΩ.

4. Operation reliability, ultra-low pressure reverse osmosis membrane module, low energy consumption, and high water production.

5. Multi-stage mixed bed improves the quality of water production and total water production. The performance of the whole machine is safe and reliable.

6, Capable of 24 hours of a continuous water production function.

7. more than 97%  salt removal rate

8. Fully automatic operation, once the water source is insufficient, it has a shutdown protection function.

9. If the reverse osmosis outlet pressure is high or the inlet pressure is too low, the reverse osmosis system will automatically shut down for protection.

10. When the water level of the reverse osmosis tank is full, the reverse osmosis system automatically shut down.

Machine specifications:

MT-DI-1000 specifications

Raw water supply: 2T/Hour

Raw water pressure: 0.15~0.3Mpa

Water production: 1000L/H

DI water tank: 160L

DI water quality: 10MΩ

DI water booster pump: Nanfang Pump Industry 0.37KW

Multi-media filter: 70L quartz sand + activated carbon

Cation softener: 75L cationic resin

Precision filtration: 20 inches 1-5um PP cotton

High-pressure pump: South Pump Industry 1.1KW

RO membrane: 40*40x4

Mixed bed resin: 50L polishing resin

Power supply: AC380V, 50/60HZ, 2.2KW

Machine size: L1300xW1350xH1800 (mm)

Weight: About 700kg

Material: Sheet metal 304 stainless steel
