|Features:||The Most Suitable Module Can Be Selected To Place Components From Microchips To Odd-shaped Components, As Well As Depending On The Products And The Production Volume.||Application:||SMT Placement Machine|
|Condition:||Original, Pre-owned And Reconditioned||Functionality:||Industrial Use - SMT Assembly Line|
|Packaging:||Wooden Box||Lead Time:||7 To 10 Working Days|
CM602 PCB SMT Machine,
CM602 SMT Placement Machine,
100000cph SMT Placement Machine

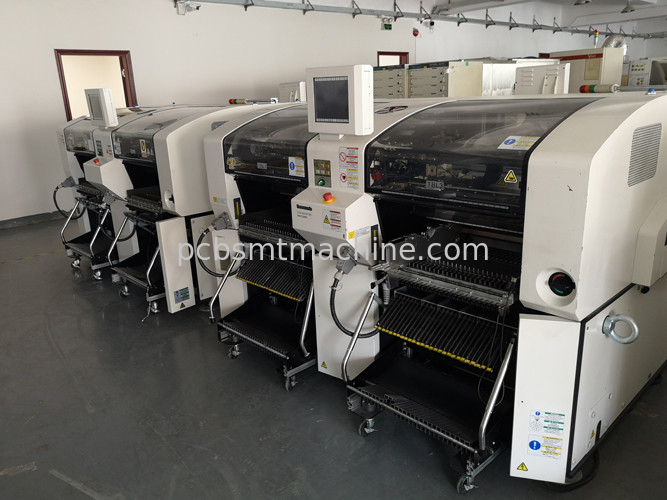

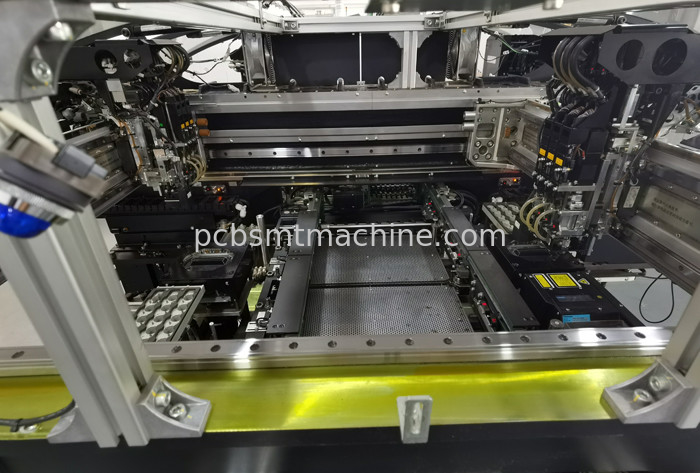

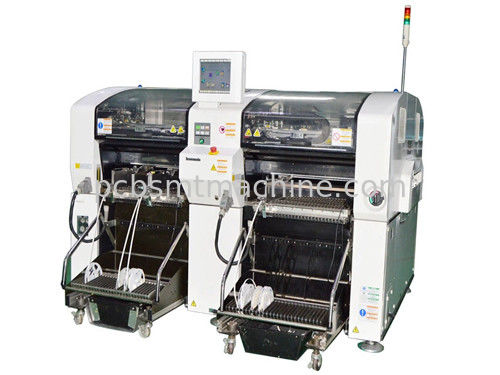

Production-ready used, refurbished, and reconditioned Panasonic CM602 SMT placement machine available for purchase at Infinite Automation Co., Ltd. We offer original new, pre-owned, and reconditioned SMT machines and Solder Paste Printers. Our company has a factory and experienced Service Engineers who work/ oversee the condition of the machines. All machines underwent a thorough reconditioning process, calibration, and quality control before declaring them as production-ready. Our reconditioned Panasonic CM402 features include the most suitable module that can be selected to place components from microchips to odd-shaped components, as well as depending on the products and the production volume.
The most suitable module can be selected to place components from microchips to odd-shaped components, as well as depending on the products and the production volume.
Improves actual productivity with lighter high-speed head and new optimization.

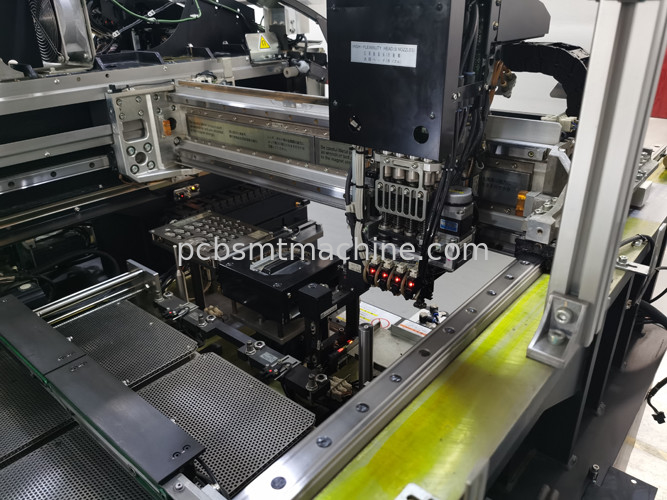

New high-flexibility 8 nozzles head and further component handling capability.
Improves area productivity with compact feeder carts.
Increases placement reliability by the 3D sensor.
High-quality placement for IC components via the 3D sensor.
High-speed detection via batch scanning.
Model ID: CM602-L
PCB dimensions (mm): L 50 x W 50 to L 510 x W 460
High-speed head: 12 nozzles
Max.speed: 100 000 cph (0.036 s/chip)
Placement accuracy: ±40 µm/chip (Cpk1)
Component dimensions (mm): (01005") 0402 chip *5 to L 12 mm × W 12 mm × T 6.5 mm
High-flexibility head: LS 8 nozzles
Max.speed: 75 000 cph (0.048 s/chip)
Placement accuracy: ±40 µm/chip, ±35 µm/QFP 24 mm, ±50 µm/QFP <24 mm (Cpk1)
Component dimensions (mm): (01005”) 0402 chip *5 to L 32 mm × W 32 mm × T 8.5 mm *8
When the generalized Ver.5 is optionally selected (01005”)0402 chip *5 to L 100 mm × W 50 mm × T 15 mm *6
Multi-functional head: 3 nozzles
Max.speed: 20 000 cph (0.18 s/QFP)
Placement accuracy: ±35 µm/QFP (Cpk1)
PCB exchange time: 0.9 s (Board length: up to 240 mm Under optimum conditions)

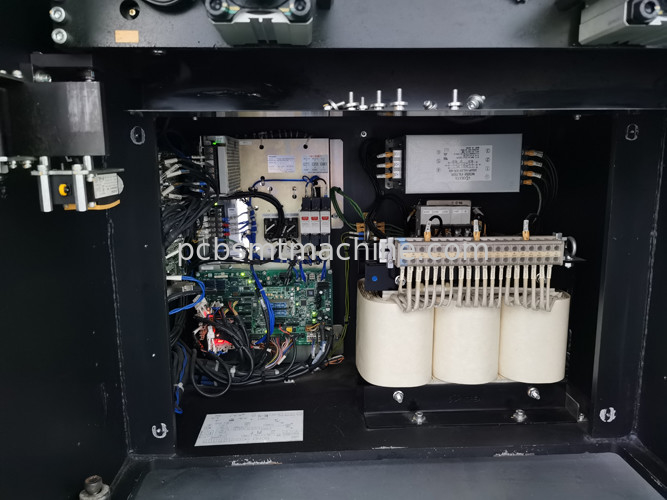

Electric source: 3-phase AC 200, 220, 380, 400, 420, 480 V, 4.0 kVA
Pneumatic source *1: 0.49 MPa, 170 L /min(ANR)
Dimensions (mm): W 2 350 x D 2 290 *2 x H 1 430 *3
Mass *4: 3 400 kg
