Production Ready KE-2080M PCB SMT Machine JUKI Chip Mounter

I'm Online Chat Now

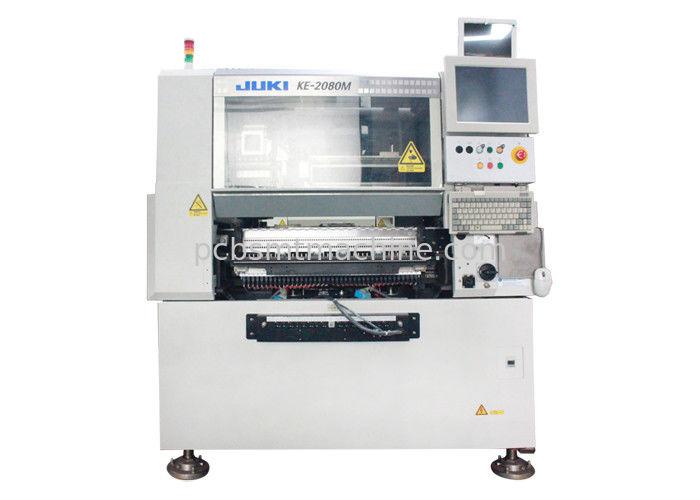

Production Ready KE-2080M PCB SMT Machine JUKI Chip Mounter

Production Ready KE-2080M PCB SMT Machine JUKI Chip Mounter
Production Ready KE-2080M PCB SMT Machine JUKI Chip Mounter

Large Image :  Production Ready KE-2080M PCB SMT Machine JUKI Chip Mounter

Product Details:
Place of Origin: China
Brand Name: Juki
Model Number: KE-2080M
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: Wooden Box

Production Ready KE-2080M PCB SMT Machine JUKI Chip Mounter

Description
Features: Best Flexible Placement System For High-density Placements Application: High-speed SMT Chip Mounter
Model: KE-2080M Brand: Juki
Condition: Pre-owned/Reconditioned Functionality: Industrial Use - SMT Assembly Line
Packaging: Wooden Box Lead Time: 15 Days
Payment Terms: 20% Deposit - 80% Before Delivery
High Light:

KE-2080M PCB SMT Machine

,

KE-2080M JUKI Chip Mounter

,

KE-2080M juki smt machine

Infinite Automation Co., Ltd. is offering the best reconditioned pre-owned Juki SMT pick and place machines. Among our ready-to-purchase Juki SMT machines is the production-ready KE-2080M model JUKI Chip Mounter designed for high-density placements. Juki KE-2080M SMT machine is the best flexible placement system for high-density placements. The ultra-flexible KE-2080 can place a wide range of components from 0402 (01005) and ICs, to odd-form, all at industry-leading accuracy and speed. Juki KE-2080M Flexible Placement Machine is equipped with a Vision centering system featuring bottom, side, and backlighting, all ball recognition, and split recognition.



JUKI Chip Mounter – KE-2080M



Features:



  • The best flexible placement system for high-density placements. The ultra-flexible KE-2080 can place a wide range of components from 0402 (01005) and ICs, to odd-form, all at industry-leading accuracy and speed.
  • 20,200CPH(0.178Sec/chip)(laser centering/optimum)
  • 16,700CPH: chip (laser centering / IPC9850)
  • 1,850CPH: IC (vision centering / effective tact), 4,860CPH with MNVC option.
  • One multi-nozzle laser head (6 nozzles) plus one high-resolution head (1 nozzle)
  • From 0402 (01005) to 74mm square components or 50×150mm
  • Vision centering system (featuring bottom, side, and backlighting, all ball recognition, and split recognition)



Specifications:



Model KE 2080M
Board size (330×250mm)
Component height 6MM
Laser recognition 0402~□33.5mm
Standard camera □3mm~□74mm or 50×150mm
High-resolution camera (option) 1.0×0.5mm※3~□48mm or 24×72mm
Placement speed 0.178Sec./chip(20,200CPH)
Vision recognition ±0.03mm (±0.04mm when using MNVC)
Transport Direction Left-> Right
Feeder inputs Max. 80 on 8mm T/F※6
Power supply 200 to 415 VAC, 3-phase
Apparent power 3kVA
Operating air pressure 0.5±0.05Mpa
Air consumption 403L/min (Opt.:Vacuum Pump 50L/min)
Machine dimensions 1,400×1,393×1,455mm
Weight 1,540kg



Images





JUKI Chip Mounter – KE-2080M image 2

JUKI Chip Mounter – KE-2080M image 3
