Infinite Automation Co., Ltd. is a reputable company distributing pre-owned and fully reconditioned SMT machines. Among our latest SMT machine offerings is the pre-owned and fully reconditioned I-Pulse M2-Plus Chip shooter and multi-function IC mounter. This I-Pulse SMT machine is operation-ready and gone through a meticulous recondition and quality check process. I-Pulse M2-plus is a super mid-range machine that integrates the speed of a chip shooter and the multi-function of an IC mounter in one unit. I-Pulse M2 SMT mounter is an enhanced model of the standard mid-range M1, and M1 plus models. I-Pulse M2 series chip mounter has achieved great improvement in its speed and accuracy.

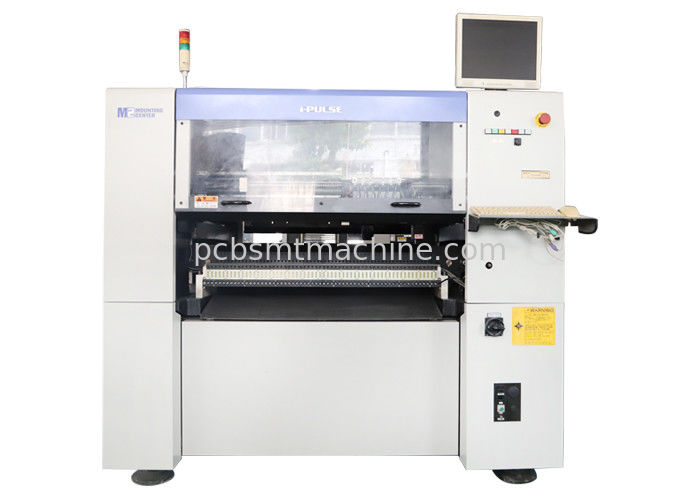

I-PULSE Chip Mounter: M2-Plus
Features:
Specifications:
| I-Pulse- M2 Plus Specification | |
| Board size | L50xW50mm – L460 xW410mm |
| Board thickness | 0.5mm-2.0mm |
| Flow direction | Left to right |
| Conveyor speed | Max. 420mm/sec, speed variable, soft stop fuction |
| Placement speed A (NB1) | 0.13 sec/CHIP, 0.38 sec/TSOP32 |
| Placement speed B (NB2) | 0.54 sec/QFP100 (when using the optional fixed camera FCO5) |
| Placement accuracy A (u+3o) | CHIP +0.05mm |
| Placement accuracy B (u+30c) | QFP +0.03mm (when using the optional fixed camera FCO3) |
| Placement angle | +180’, resolution 0.015 |
| Z-axis control | 6-head independent servo motors, resolution 0.006mm |
| Component height | 15mm (Preplaced components max. 10.5mm) |
| Components applicable | 0603 (option) – SOP, PLCC, QFP, BGA, CSP, connector, and odd-form components |
| Component carriers | 8-56mm tape, stick, tray |
| Drawback check | Vacuum check and vision check |
| Multi language display | Japanese, Chinese, Korean, and English |
| Board locating method | Board edge or tooling hole (option), front reference |
| Component types | 120 types (8mm tape conversion) |
| Board transfer height | 900+20mm |
| Dimensions, weight | L1,750XD1,530XH1, 510mm, approx. 1,950Kg |
| Power, consumption, capacity | 3phase 200V (Option: 208, 220, 240, 380, 400, 415, 440V) +10% 50/60Hz, 4.0KVA, 6.0KVA |
| Air and consumption | 0.5MPa, 692/min A.N.R. |
