Place of Origin:
China
Brand Name:
Samsung
Model Number:
SM421
Infinite Automation Co., Ltd. distributes the best condition pre-owned SMT pick and place machines, one of our offers is our pre-owned and reconditioned SM421 Chip Mounter designed for high-speed and flexible SMT component mounting. SM421 High-speed Flexible Mounter is manufactured by Samsung. Samsung SM421 SMT Pick and Place machine is a flexible general component placer whose vision system is reinforced based on the platform of the SM471 high-speed chip shooter. Samsung SM421 Chip Mounter placement speed is the highest among the same class component placers. The Samsung SM481 model is capable of reaching a chip placement speed of up to 39,000 CPH. This speed is the highest among the same class component placers. Samsung SM421 high-speed chip shooter is designed with a head with one gantry and ten spindles as well as the new flying vision that maximizing the pickup and placement motion. Also, it is applicable up to 0402(01005 inch) chips and 42mm ICs. It has improved actual productivity and placement quality by applying high speed and high precision electrically driven feeders. Furthermore, since it is designed to be compatible with SM series pneumatic feeders, it maximizes the customer's operational convenience.it maximizes the customer's operational convenience.it maximizes the customer's operational convenience. It has improved actual productivity and placement quality by applying high speed and high precision electrically driven feeders. Furthermore, since it is designed to be compatible with SM series pneumatic feeders, it maximizes the customer's operational convenience.it maximizes the customer's operational convenience.it maximizes the customer's operational convenience. It has improved actual productivity and placement quality by applying high speed and high precision electrically driven feeders. Furthermore, since it is designed to be compatible with SM series pneumatic feeders, it maximizes the customer's operational convenience.it maximizes the customer's operational convenience.it maximizes the customer's operational convenience.

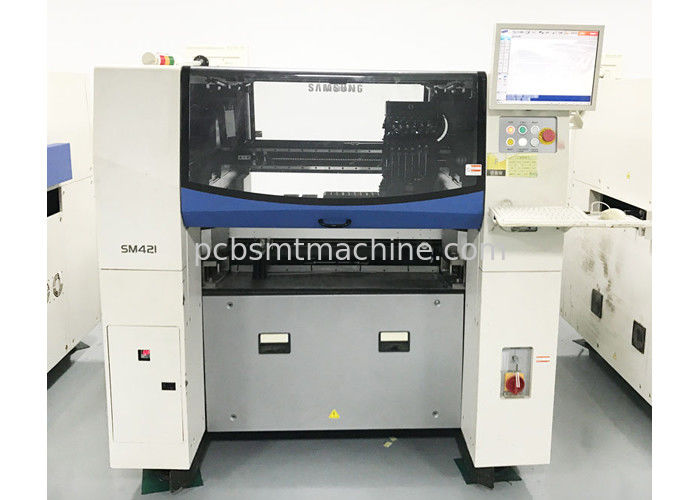

Samsung SM421 SMT Pick and Place machine
Specifications:
|
Model Number
|
SM421 |
| Placement speed | 28,000CPH(Optimum) |
| PCB size | 460(L)X400(W)mm (standard) |
| PCB thickness | 0.38~4.2 |
| Placement accuracy | ±0.05mm/Chip, ±0.03mm/QFP |
| Applicable components | 0603/0402 |
| Conveyor system | Single Lane |
| Feeder Capacity | 60ea |
| Air Consumption | 0.5~0.7MPa(Max:260Nl/min) |
Images:
