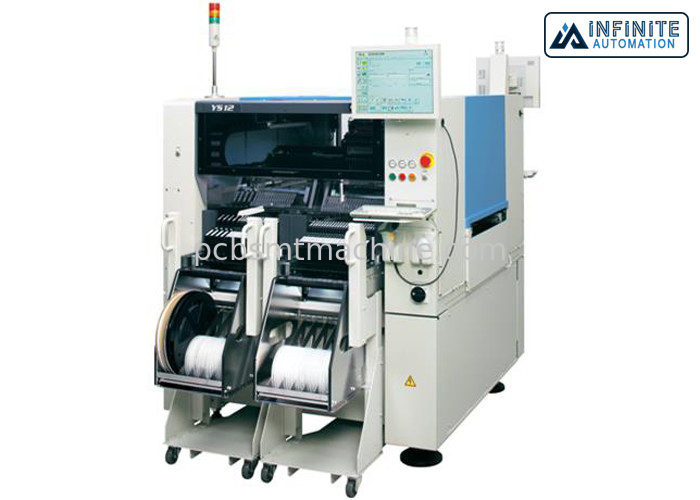

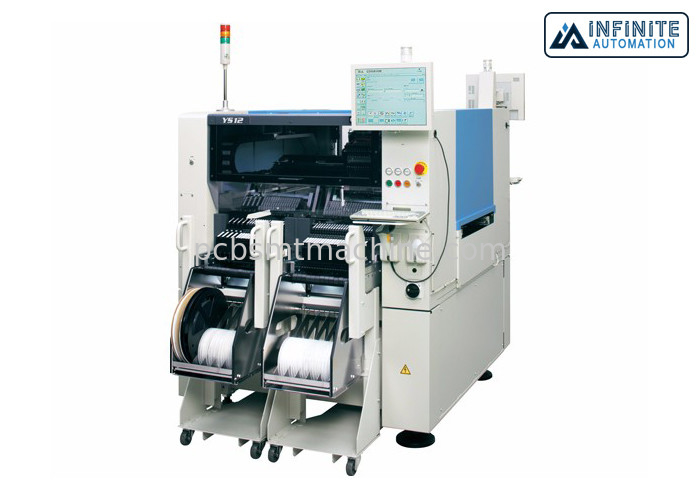

Yamaha YS12 SMT Pick And Place Machine, Used And Fully Reconditioned Yamaha YS12 Chip Mounter

Yamaha YS12 SMT Pick And Place Machine, Used And Fully Reconditioned Yamaha YS12 Chip Mounter

36K CPH Speed PCB SMT Machine

YS12 PCB SMT Machine

YS12 SMT Pick And Place Machine

Place of Origin:

China

Brand Name:

Yamaha

Model Number:

YS12

Contact Us
Request A Quote
Product Details
Features:
36K CPH Speed
Application:
Pick And Place Machine
Model:
YS12
Brand:
YAMAHA
Condition:
Pre-owned/Reconditioned
Functionality:
Industrial Use - SMT Assembly Line
Packaging:
Wooden Box
Lead Time:
15 Days
Payment Terms:
20% Deposit - 80% Before Delivery
Highlight:

36K CPH Speed PCB SMT Machine

,

YS12 PCB SMT Machine

,

YS12 SMT Pick And Place Machine

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Packaging Details
Wooden Box
Product Description

Yamaha YS12 SMT Pick and Place Machine is a compact high-speed SMT chip mounter machine. Yamaha YS12 is applicable to PCB with sizes from  L510*W460mm to L50*W50mm. This compact and high-speed mounter can mount 0402 (Metric base) to 32*mm components.  Yamaha YS12 SMT Pick and Place Machine mounting speed are 36,000CPH or equivalent to  0.1sec/CHIP. Yamaha YS12 is applicable to large size PCB L510xW460mm.



Yamaha YS12 Features:

  • Thiscompactplatform design(front view breadth 1,254mm)assure flexible line arrangement in your site
  • Both new designed 10 inline multi-heads and new recognition system ensure 36.000CPH(0.1sec/CHIP Equivalent: optimum condition)
  • Maximum feeder capacity120 lanes
  • Applicable to large sizePCBL510xW460mm
  • Built-in tape cutter available as an option

Specifications:

Model YSM10 YS12 YS24
Applicable PCB L 510 x W 460mm-L 50 x W 50mm L510x~W460mm to L50x~W50mm L50mm x W50mm to L700mm x W460mm
Mounting Capability 46,000CPH 36,000CPH 72,000CPH
Mounting Accuracy ±0.035 mm (±0.025 mm) Cpk≧1.0 (3σ) +/-0.05mm/CHIP +/-0.05mm (μ + 3σ), +/-0.03mm (3σ)
Number of component types 15 types (sATS 15 equipment, Max, JEDEC) 120 types(Max, 8mm tape reel conversion) 120 types (Max./8mm wide tape reel conversion)
Applicable components 03015-W 55 x L 100mm, H: 15mm or less 0402(Metric base) to □32*mm components 0402 to 32x32mm max (Height 6.5mm or less)
External Dimensions L 1,254 x W 1,440 x H 1,445mm L 1,254 x W 1,440 x H 1,445mm L1,254x W1,687x H1,445m



Our company, Infinite Automation is focusing on providing alternative SMT Factory Automation and Production Solutions. We have a factory warehouse in China and offer sales of new and used SMT machines.  ​Infinite Automation provides full SMT assembly line solutions, we offer brand new and best conditions second-hand/pre-owned SMT machines and equipment-Solder Paste Printer, SMT Mounter, AOI, SPI, Link Conveyors, Industrial Cleaners, and all factory automation products.
