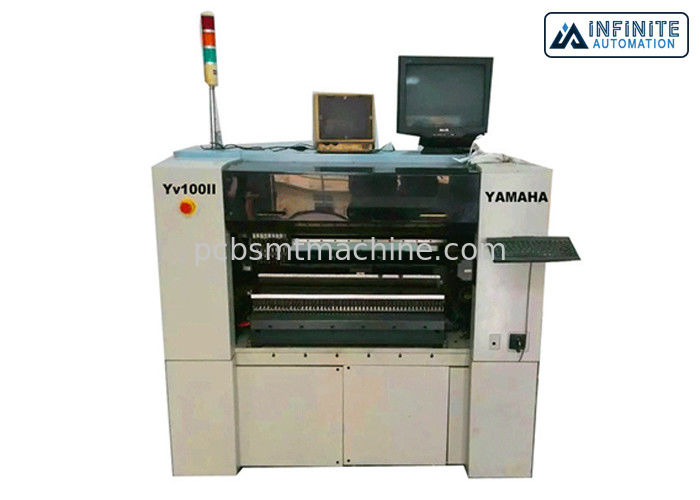

Yamaha YV100II LED Strip SMT Chip Mounter Used Pick And Place Machine

Yamaha YV100II LED Strip SMT Chip Mounter Used Pick And Place Machine
Yamaha YV100II LED Strip SMT Chip Mounter Used Pick And Place Machine

Large Image :  Yamaha YV100II LED Strip SMT Chip Mounter Used Pick And Place Machine

Product Details:
Place of Origin: China
Brand Name: Yamaha
Model Number: YV100II
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: Wooden Box

Yamaha YV100II LED Strip SMT Chip Mounter Used Pick And Place Machine

Description
Features: Mounting Speed - 12000CPH Payment Terms: 20% Deposit - 80% Before Delivery
Application: SMD Pick And Place Machine / LED Strip Chip Mounter Model: YV100II
Brand: YAMAHA Condition: Pre-owned/Reconditioned
Functionality: Industrial Use - SMT Assembly Line Packaging: Wooden Box
Lead Time: 15 Days
High Light:

YV100II SMT Chip Mounter

,

Yamaha YV100II

,

Yamaha SMT Chip Mounter

Yamaha YV100II LED Strip SMT Chip Mounter Used Pick And Place Machine



Yamaha YV100II LED Strip Chip Mounter, Used SMT Pick And Place Machine



Used Yamaha YV100II Chip Mounter is available at Infinite Automation. Yamaha YV100II mechanical structure is simple, with a casting frame design to ensure durability and stability. The circuit control system is not complicated, easy maintenance. DOS operating system, the menu is relatively simple, easy to operate. A working head, 8 suction nozzles, the size of the material can be posted, you can install a precision camera to improve placement accuracy. The theoretical speed of 14400 points per hour. The actual production capacity of about 8000. Suitable for small batch production.



LED Strip Chip Mounter

Yamaha YV100II Chip Mounter

Patch speed 12000

L1650 * W1350 * H1810

Weight 1300kg



Product description: LED Strip Chip Mounter LED Pick and Place Machine

Chip theoretical speed 0.25sec / chip

Mounting range 1005 ~ qfp'sqp 'soj'plcc (25mm) bga (0.4p)

Positioning accuracy of plus or minus 0.08mm

PCB size l460 * w250 (max) / l50 * w50 (min)

Equipment size l1650 * w1350 * h1810

Maximum power 4KVA

Equipment weight 1300kg



Yamaha YV100II chip mounter parameters

Based on the reliability of the basic structure of the high-speed machine

Protection components of the mount

0.25 seconds / CHIP high-speed mounting

can be mounted 0.5 feet spacing 32mm QFP

High-speed image processing

2 cameras reduce production time

Newly designed high rigidity frame

Increase the speed of the shaft

Can handle a variety of components

The most suitable for computer SIMM production with 8 wired head

Substrate size: L600 * W400 (Max) / L50 * W50 (Min)

Substrate thickness 0.4-3.0

Substrate conveying direction right - left

Mounting accuracy 0.1mm / CHIP 0.08 / QFP

Mounting Speed 0.25 sec / CHIP 1.7 sec / QFP

Original Type Ribbon original: 100 (MAX, 8MM with conversion)

Tray Original: 80 kinds (TMAX, YTF use)

The original form of supply 8-56mm broadband, rod, bulk, tray

Placement Original 1005 ~ QFP'SQP'SOJ'PLCC (25mm) BGA (0.4p)

Power three-phase AC220 / 208/230/240/380/400 / 416V 10%, 50 / 60HZ

Power 4KVA

Pressure above 0.55MPA, 350MIN

Dimensions L1650 * W1350 * H1810

Weight 1300KG

Patch speed 12000 (grain / hour)

Weight 1300 (kg)
